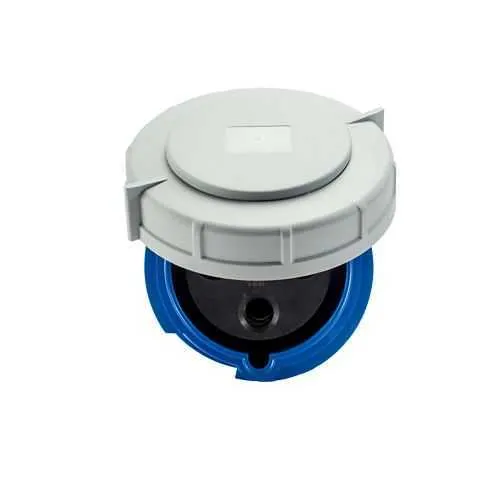

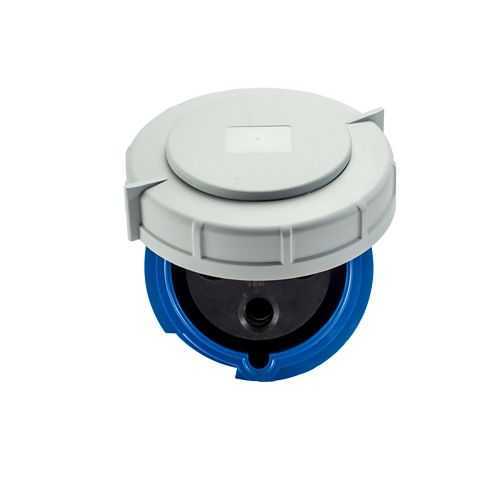

Eaton AH3100C6WDR Pin & Sleeve Connector - IP69K Rated
Part Number: AH3100C6WDR
Quick Summary
AH3100C6WDR pin and sleeve connector delivers rugged, IP69K-rated power interconnection for heavy industrial equipment. It addresses downtime and reliability concerns from unsuitable connectors in washdown environments. With IP69K (and IP67) protection and a two-pole 3-wire design, it excels in demanding automation lines where space is tight. Leveraging nickel plated brass contacts and a nylon body, it balances durability, ease of maintenance, and cost-per-connection. Designed for 100/125A service at 100–250V, it accommodates a wide range of motor and drive wiring, and its 11.83 inch length with a 4.86 inch square footprint supports straightforward field installation, translating to lower maintenance costs and improved uptime for critical machinery.
Product Information
Extended Description
AH3100C6WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 100/125A, 100A 250V/125A 200-250V, two-pole, 0.97-1.94in (2.46-5.00cm) cable diameter, #4 -1/0 AWG, #12 - #16 AWG (pilot), nickel plated brass, 3 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH3100C6WDR
UPC
032664006586
Product Length/Depth
11.83 in
Product Height
4.86 in
Product Width
4.86 in
Product Weight
3.22 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
100/125A
Voltage rating
100A 250V/125A 200-250V
Contact material
Nickel plated brass
Number of wires
3 Grounding
Number Of Poles
Two-pole
Cable diameter
0.97-1.94in (2.46-5.00cm)
Environmental resistance
IP69K IP67
Allowable wire size
#4 -1/0 AWG, #12 - #16 AWG (pilot)
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
100A Dual Rated pin and sleeve devices spec sheet
Feature → Business Impact → Application: IP69K rated construction delivers superior washdown resilience, reducing corrosion and seal failures in harsh environments; this translates to longer service life for conveyors, presses, and automation lines and minimizes unplanned downtime during routine cleaning. Application: use in food processing, packaging, and automotive assembly where high-pressure cleaning is routine. Feature → Business Impact → Application: 100/125A amperage rating supports heavy loads without frequent reconfiguration, delivering consistent performance on motors and drives and lowering wiring and protection costs. Application: power interconnects for industrial motors and drive systems in manufacturing cells. Feature → Business Impact → Application: cable diameter compatibility of 0.97–1.94 in and allowable wire sizes #4–1/0 AWG main with #12–#16 AWG pilot enables flexible wiring schemes; reduces inventory needs and avoids field termination hassles. Application: rugged feeders and junctions on equipment with mixed wiring. Feature → Business Impact → Application: nickel plated brass contact material and nylon housing provide corrosion resistance and thermal stability; this combination reduces replacement cycles and maintenance effort. Application: outdoor or semi-exposed installations and washdown zones. Feature → Business Impact → Application: compact two-pole, 3-wire design and Arrow Hart compatibility streamline mounting and serviceability; installers benefit from familiar hardware and quick-connect assembly. Application: retrofit projects and new builds across automation, packaging, and material handling. Feature → Business Impact → Application: documented dimensions and weight (11.83 in length, 4.86 in width/height; 3.22 lb) support precise enclosure planning and dependable mounting envelopes. Application: panel layouts and equipment racks in space-constrained lines.
Get a Quick Quote for a Eaton AH3100C6WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH3100C6WDR?
Enquire Now
FAQs
AH3100C6WDR is a two-pole, three-wire pin and sleeve connector from Eaton Arrow Hart designed for rugged industrial use. It supports 100/125A service at 100–250V and accepts main conductors from #4 to 1/0 AWG with pilot wiring #12 to #16 AWG. Its IP69K rating makes it suitable for washdown environments and it pairs with standard Arrow Hart accessories for streamlined installations.
Key specs include a 100/125A amperage rating, voltage options of 100A at 250V or 125A at 200–250V, a 3-wire configuration, and a two-pole design. It uses nickel plated brass contacts and a nylon housing, and supports cable diameters from 0.97 to 1.94 inches. The device carries IP69K protection (also IP67), suitable for harsh environments.
Yes. The AH3100C6WDR is IP69K rated, offering sealed protection against high-pressure washdowns, along with IP67 compatibility for additional dust and moisture resistance. The nylon body and corrosion-resistant nickel-plated brass contacts further enhance durability in wet manufacturing areas, reducing maintenance intervals and extending service life.
This connector supports main conductors from #4 to 1/0 AWG and pilot wires from #12 to #16 AWG, with a cable diameter range of 0.97 to 1.94 inches. This broad range provides flexibility for motor leads and control circuits, simplifies field terminations, and minimizes the need for multiple connector variants on the line.
Key considerations include leveraging the IP69K rating for reliable washdown performance, using the nylon housing and nickel-plated brass contacts for longevity, and planning around the 11.83 inch length and 4.86 inch width to ensure proper enclosure fit. The connector’s compatibility with Arrow Hart systems also supports easier field replacements and reduced downtime during maintenance or upgrades.
