Eaton AH316C4W Pin and Sleeve Connector - IP69K Rated
Part Number: AH316C4W
Quick Summary
Eaton Arrow Hart pin and sleeve connector is designed for industrial control panels and harsh environments. This rugged solution delivers reliable power connections in washdown environments and in utility-rated installations. Users often struggle with moisture ingress, corrosion, and unreliable back-wire terminations in damp facilities. The AH316C4W carries UL Listed cRUus certification and strong IP ratings, including IP69K and IP67, to withstand high-pressure cleaning and submersion scenarios. With 110–130 V at 16 A, back-wire wiring, and a nickel-plated brass contact system housed in durable Nylon, this two-pole, grounding connector offers predictable performance. For facilities in food and beverage, wastewater treatment, or general industrial automation, it reduces downtime and simplifies maintenance while meeting stringent safety and reliability expectations.
Product Information
Extended Description

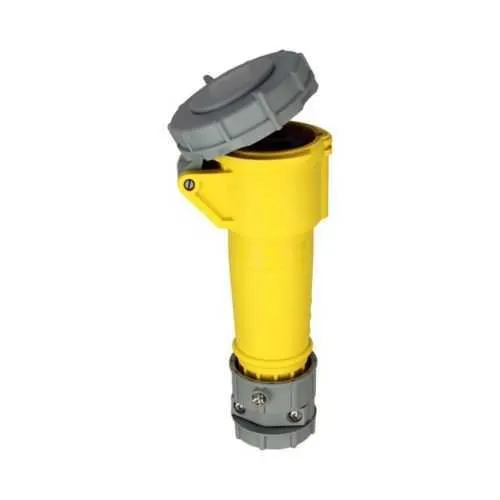

AH316C4W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 16A, Extra Heavy-Duty, 110-130V, Back wire, Yellow, Nickel plated brass, IP67, IP69K, Nylon, Two-pole, Three-wire, grounding, 0.333-0.775in (0.85-1.97cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH316C4W
UPC
032664732584
Product Length/Depth
8.5 in
Product Height
4.375 in
Product Width
4.375 in
Product Weight
0.672 lb
Certifications
UL Listed cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
16 A
Voltage rating
110-130 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
Grounding 3 Three-wire
Number Of Poles
Two-pole
Cord diameter
0.333-0.775in (0.85-1.97cm)
Environmental resistance
IP69K IP67
Color
Yellow
Gender
Female
Allowable wire size
#12 - #10 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH316C4W
Eaton Specification Sheet - AH316C4W
IP69K and IP67 environmental resistance protect critical connections from washdown pressures and moisture, lowering maintenance costs and maximizing equipment uptime in food processing and wastewater facilities. This nylon housing and nickel-plated brass contacts deliver corrosion resistance and low contact resistance, improving reliability in harsh environments and reducing replacement costs over the life of the installation. The back-wire method supports straightforward field terminations with #12–#10 AWG conductors, decreasing installation time and error potential on crowded control panels. With a 16 A, 110–130 V rating and a two-pole design featuring grounding, the AH316C4W ensures safe, compliant operation for industrial automation lines while enabling rapid panel-mount integration and future scalability. Industry professionals value the extra heavy-duty device grade for demanding environments where lifecycle costs and safety are paramount. All told, this connector aligns with maintenance plans that prioritize predictable performance, easy sourcing, and compatible mating components.
