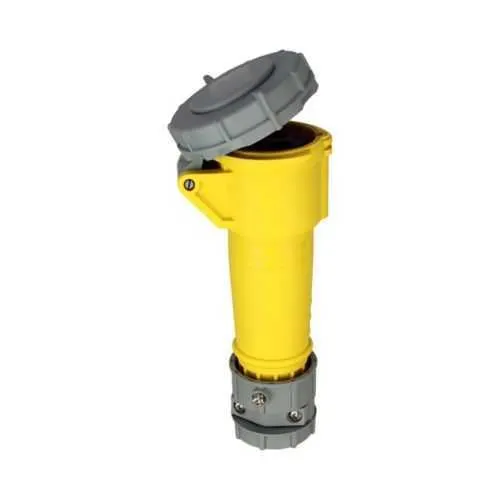

Eaton AH320C4W Pin & Sleeve Connector - IP69K
Part Number: AH320C4W
Quick Summary
The Eaton AH320C4W pin and sleeve connector enables rugged, IP69K-rated electrical interconnection for harsh production environments. Operators frequently wrestle with washdown processes, moisture ingress, and unplanned downtime, so a dependable, corrosion-resistant solution is essential. This unit features IP69K and IP67 environmental protection alongside cRUus certification, reinforcing reliability in demanding settings. Built for back-wire installations and two-pole, three-wire configurations, it supports safe grounding and fast, repeatable terminations—delivering reduced install time and predictable performance for capital equipment and process lines.
Product Information
Extended Description
AH320C4W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, Extra Heavy-Duty, 125V, Back wire, Yellow, Nickel plated brass, IP67, IP69K, Nylon, Two-pole, Three-wire, grounding, 0.333-0.775in (0.85-1.97cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH320C4W
UPC
032664732607
Product Length/Depth
8.5 in
Product Height
4.375 in
Product Width
4.375 in
Product Weight
0.672 lb
Certifications
cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
20A
Voltage rating
125 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
3 Grounding Three-wire
Number Of Poles
Two-pole
Cord diameter
0.333-0.775in (0.85-1.97cm)
Environmental resistance
IP69K IP67
Color
Yellow
Gender
Female
Allowable wire size
#12 - #10 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH320C4W
Eaton Specification Sheet - AH320C4W
IP69K/IP67 environmental resistance translates to superior washdown durability, minimizing downtime and maintenance costs in food & beverage and wastewater applications. The 20A, 125V electrical rating enables robust powering of industrial equipment while maintaining safety margins in harsh environments. Back-wire wiring simplifies field terminations, speeding panel builds and reducing labor costs without sacrificing reliability. Nickel-plated brass contacts deliver corrosion resistance in challenging service, extending connector life in aggressive environments. The nylon housing provides a lightweight yet durable enclosure that resists impact and abrasion, supporting long service intervals and lower replacement expenses. The two-pole, three-wire design with grounding offers straightforward installation and dependable grounding paths, while a 10 lbf-inch torque rating ensures consistent contact pressure. Compatibility with #12–#10 AWG conductors and a cord diameter range of 0.333–0.775 inches expands wiring options, enabling flexible integration across multiple machines and control panels.
