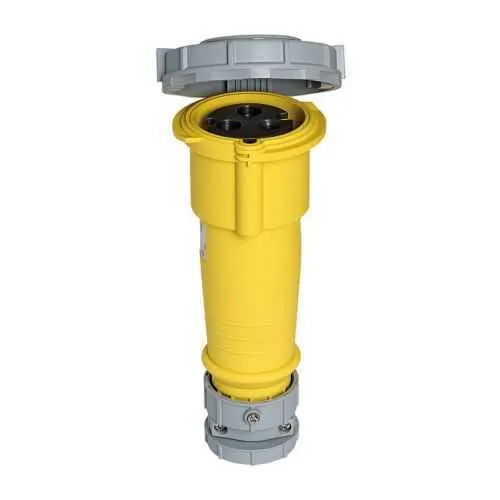

Eaton AH332C4W Pin and Sleeve Connector - IP69K
Part Number: AH332C4W
Quick Summary
Eaton AH332C4W pin and sleeve connector provides rugged power connections for industrial equipment. In practice, installers often confront washdown cycles, moisture ingress, and variable cable diameters that threaten reliability. UL Listed with IP69K/IP67 ratings, this device offers robust protection and regulatory peace of mind for demanding environments. Back-wire termination and a yellow nylon body deliver fast, visible, and compliant installations, helping to reduce downtime while improving field traceability and safety. For industrial wiring devices in food and beverage, wastewater, and general manufacturing, this connector translates to lower maintenance costs and higher uptime through durable materials and proven performance.
Product Information
Extended Description
AH332C4W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 32A, Extra Heavy-Duty, 110-130V, Back wire, Yellow, Nickel plated brass, IP67, IP69K, Nylon, Two-pole, Three-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH332C4W
UPC
032664732775
Product Length/Depth
10.375 in
Product Height
4.813 in
Product Width
4.75 in
Product Weight
1.085 lb
Certifications
UL Listed
Special features
IP69K Rated
Type
Connector
Amperage Rating
32A
Voltage rating
110-130 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
Grounding 3 Three-wire
Number Of Poles
Two-pole
Cord diameter
0.433-0.985in (1.10-2.5cm)
Environmental resistance
IP69K IP67
Color
Yellow
Gender
Female
Allowable wire size
#10 -#2 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH332C4W
Eaton Specification Sheet - AH332C4W
Feature → High ingress protection reduces downtime and warranty risk → Application in washdown environments such as food and beverage processing and wastewater treatment is seamless due to IP69K and IP67 ratings, with a nylon body and nickel-plated brass contacts delivering lasting performance in challenging conditions. Feature → Back-wire wiring method with grounding support fast, reliable terminations → Application benefits include quicker installation, lower field error rates, and consistent electrical contact under vibration in industrial machinery. Feature → 32A amperage rating at 110-130V for two-pole, three-wire configurations → Application impact includes supporting standard industrial loads with a reliable ground connection, enabling scalable control panels and motor connections with reduced soft-start concerns. Feature → Cord diameter compatibility from 0.433 to 0.985 inches → Application advantage is versatility across harnesses and cable assemblies, minimizing the need for adapters and increases first-pass install success. Feature → Nickel-plated brass contacts and nylon housing provide corrosion resistance and insulating integrity → Application benefits include longer service life in washdown, corrosive, and humid environments, reducing replacement costs. Feature → UL Listed and IP-rated construction deliver compliance confidence for regulated industries → Application value is faster approvals, safer installations, and lower risk of non-compliance when sourcing field-connectors and fixtures.
Get a Quick Quote for a Eaton AH332C4W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH332C4W?
Enquire Now
FAQs
To install AH332C4W safely, power must be de-energized before work begins. Verify compatibility with cord diameter (0.433-0.985 in) and use back-wire terminations with the indicated torque rating of 10 lbf-in. Secure the grounding conductor, ensure the nylon body seals are properly seated, and perform a continuity check to verify a solid, fault-free connection before energizing.
AH332C4W is designed as a two-pole, three-wire pin and sleeve connector with grounding, supporting back-wire terminations for reliable field installs. It aligns with industrial practices for IEC 60309 style connections, offering robust, watertight performance for two-wire loads with a dedicated ground, making it suitable for motor and control circuits in harsh environments.
This connector excels in industrial, food and beverage, and wastewater treatment environments where washdown, humidity, and exposure to cleaning agents are common. With IP69K/IP67 protection, UL Listing, and a durable nylon body, it supports high-visibility, dependable power connections for control panels, machinery, and remote equipment in demanding production lines.
AH332C4W is UL Listed and IP69K/IP67 rated, indicating compliance with safety and ingress protection standards for harsh industrial settings. The 32A amperage rating and 110-130V voltage rating ensure alignment with typical equipment loads, while back-wire termination and grounding support safe installation practices and regulatory conformity across food, beverage, and wastewater applications.
Back-wire wiring simplifies field terminations, reduces installation errors, and accelerates panel builds, which lowers labor costs and downtime. Grounding is integrated into the design, improving safety and reliability under load and vibration. Combined with corrosion-resistant nickel-plated brass contacts and a durable nylon body, this design minimizes maintenance and extends service life in tough environments.
