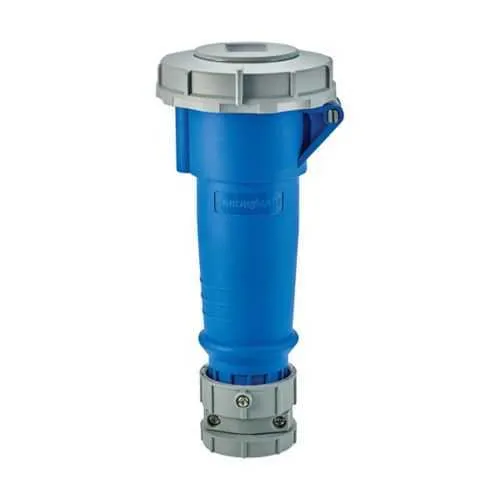

Eaton AH332C6W Pin and Sleeve Connector - IP69K Rated
Part Number: AH332C6W
Quick Summary
Eaton Arrow Hart pin and sleeve connector delivers rugged power connections for industrial equipment in washdown environments. Maintenance downtime, water ingress, and loose seals undermine reliability and drive up total cost of ownership. UL Listed cRUus certification, IP69K and IP67 ratings protect critical assets in food, beverage, wastewater, and other harsh settings. Back-wire wiring supports #10–#2 AWG conductors, 32A at 220-240V, with a durable nylon body that enables quick, compliant installations. Two-pole, grounding design with nickel-plated brass contacts ensures reliable conductivity across demanding industrial applications. Ideal for new builds and retrofits in food, beverage, and wastewater facilities. Its back-wire approach reduces field wiring time, lowering labor costs while maintaining compliance.
Product Information
Extended Description
AH332C6W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 32A, Extra Heavy-Duty, 220-240V, Back wire, Blue, Nickel plated brass, IP67, IP69K, Nylon, Two-pole, Three-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH332C6W
UPC
032664732782
Product Length/Depth
10.375 in
Product Height
4.813 in
Product Width
4.75 in
Product Weight
1.085 lb
Certifications
UL Listed cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
32A
Voltage rating
220-240 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
Grounding 3 Three-wire
Number Of Poles
Two-pole
Cord diameter
0.433-0.985in (1.10-2.5cm)
Environmental resistance
IP69K IP67
Color
Blue
Gender
Female
Allowable wire size
#10 -#2 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH332C6W
Eaton Specification Sheet - AH332C6W
IP69K and IP67 environmental protection provide washdown readiness, reducing ingress-related downtime and corrosion risk in high-pressure cleaning environments, delivering longer service life and lower maintenance costs for facilities handling food, beverages, and water treatment. The connector carries a 32A, 220-240V rating, enabling reliable power delivery for standard industrial loads while supporting #10–#2 AWG conductors through a secure back-wire method, which accelerates installation and minimizes wiring errors in control panels and equipment housings. Made with a nylon face/body and nickel-plated brass contacts, it combines lightweight durability with resistance to chemicals and impact, improving overall equipment uptime and operator safety in harsh environments. This two-pole, grounding configuration aligns with common industrial wiring practices and IEC 60309 family devices, ensuring compatibility across Eaton’s pin-and-sleeve ecosystem and simplifying spares planning. The device’s labeling, color (blue), and UL-listed status provide clear compliance signals during audits and maintenance.
Get a Quick Quote for a Eaton AH332C6W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH332C6W?
Enquire Now
FAQs
The AH332C6W uses a back-wire wiring method and supports #10–#2 AWG conductors with a torque rating of 10 in-lbf. It is a two-pole, grounding connector with female contacts housed in a blue nylon body, designed for secure field wiring and straightforward panel or device mounting.
AH332C6W is rated for 32A at 220-240V. It offers robust environmental resistance with IP69K and IP67 classifications, making it suitable for washdown and harsh industrial environments where ingress protection is critical.
Ideal for industrial machinery, food and beverage processing, and wastewater treatment facilities, especially where frequent washdowns, high-pressure cleaning, or chemical exposure occur. The connector supports reliable power delivery in harsh environments while meeting safety and durability requirements.
AH332C6W carries UL Listed cRUus certification, indicating compliance with recognized safety standards for electrical equipment in North America. This helps with regulatory audits, customer quality expectations, and end-user safety requirements in industrial settings.
Back-wire installation minimizes field wiring time and reduces labor costs. The IP69K/IP67 protection and nickel-plated brass contacts resist corrosion and ingress, extending service life and lowering downtime. The robust nylon body provides durable performance under demanding washdown and outdoor conditions, improving total cost of ownership (TCO) over the device lifecycle.
