Eaton AH3523BK Locking Connector - cULus Listed
Part Number: AH3523BK
Quick Summary
The Eaton AH3523BK locking connector provides secure, vibration-resistant power connections for four-pole industrial wiring. In demanding environments, loose connections drive downtime and overheating, making field maintenance costly. It is RoHS compliant and cULus Listed, meeting core safety and regulatory standards for industrial equipment. Back wired for #16-12 AWG conductors, with a cord diameter range of 0.38 to 1.16 in, this connector supports flexible installation in tight panels. The rugged nylon housing and Ultra grip mechanism enhance vibration resistance, delivering long service life and predictable performance for OEMs and system integrators. This combination reduces field failures and lowers total cost of ownership.
Product Information
Extended Description

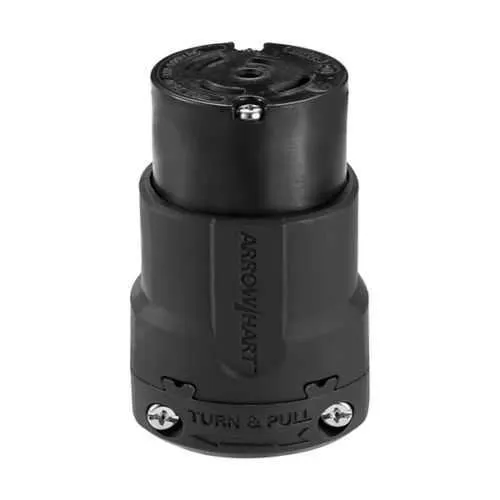

AH3523BK Eaton: Eaton Arrow Hart ultra grip locking connector, #16-12 AWG, 60 A, Industrial,250/600V, Back wiring,Black, Ultra grip, Non-NEMA, Four-pole, Five-wire, Nylon, 0.38 to 1.16 in
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
AH3523BK
UPC
032664737800
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.38 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Special features
Locking plug
Type
Locking connector
Amperage Rating
10A, 20A
Voltage rating
600/250V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 5
Number Of Poles
Four-pole
Color
Black
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-12 AWG
NEMA configuration
Non-NEMA
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH3523BK
Eaton Specification Sheet - AH3523BK
Feature: Ultra grip locking mechanism provides a positive, vibration-resistant lock. Business Impact: Reduces accidental disconnections, improving line reliability and minimizing downtime in high-vibration environments. Application: Ideal for conveyors, presses, and other heavy machinery where secure power connections are essential. Feature: Cord diameter range 0.38-1.16 in and #16-12 AWG back-wiring support. Business Impact: Enables flexible wiring options and faster, more reliable terminations, lowering installation time and training needs. Application: Control panels and industrial cabinets requiring adaptable cord management. Feature: Four-pole, back-wiring design. Business Impact: Supports complex, multi-wire circuits with simplified field wiring and improved fault isolation. Application: Industrial automation controllers and machine wiring harnesses. Feature: Nylon body with non-NEMA design and locking plug. Business Impact: Durable, chemical-resistant housing withstands harsh environments, extending service life and reducing replacement costs. Application: Outdoor or factory floor installations where exposure and cleanliness matter. Feature: Electrical ratings of 10/20 A and 600/250 V. Business Impact: Ensures compliance with common industrial standards while delivering robust current handling for equipment. Application: Industrial motors, controls, and power distribution setups. Feature: RoHS compliance and cULus listing. Business Impact: Streamlines procurement for regulated environments and supports safe integration into certified systems. Application: Panel builders and OEMs pursuing regulatory compliance without compromising performance.
Get a Quick Quote for a Eaton AH3523BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH3523BK?
Enquire Now
FAQs
Installing AH3523BK with #16-12 AWG conductors involves preparing the wire ends, stripping to the correct length, and inserting them into the back-wiring terminals per Eaton's datasheet. Ensure the conductors are fully seated to engage the Ultra grip lock. Verify the connection with a simple pull test and check that the assembly fits within the device’s approved cord diameter range (0.38–1.16 in). Use appropriate strain relief where required and follow safe lock-out/tag-out procedures during installation.
The AH3523BK supports 10 A and 20 A ratings with a voltage range of 600/250 V. This combination makes it suitable for industrial power distribution and control wiring, including higher voltage equipment in non-NEMA configurations. When selecting wiring, ensure your equipment and upstream supply conform to these ratings and maintain proper insulation, calipers, and torque for reliable terminations.
Yes. The four-pole locking design, back-wiring capability, and nylon Ultra grip housing make it well-suited for control panels and industrial machinery where a secure, vibration‑resistant connection is critical. It supports rigid mounting in harsh environments and is non-NEMA, expanding its applicability to specialized panel configurations beyond standard NEMA setups.
AH3523BK is RoHS compliant and cULus Listed, indicating restricted hazardous substances and recognized safety for North American markets. These certifications help ensure regulatory alignment for machine builders, reduce compliance risk in procurement, and simplify integration into certified systems without compromising performance or reliability.
Ultra Grip provides a secure, high‑reliability locking mechanism that resists loosening from vibration and thermal cycling. This reduces connection-related faults and maintenance intervals in dynamic applications. For lifecycle planning, select AH3523BK in environments with frequent mechanical movement or heavy equipment where stable power connections translate into lower downtime and longer service life.
