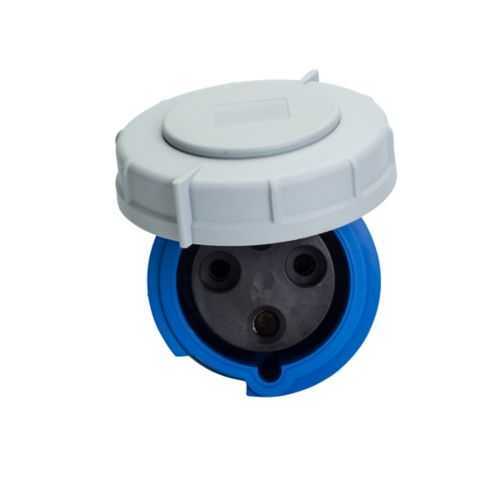

Eaton AH360C6WDR Pin & Sleeve Connector - IP69K Rated
Part Number: AH360C6WDR
Quick Summary
The Eaton AH360C6WDR pin & sleeve connector delivers rugged, IP69K-rated power connections for demanding industrial environments. Engineers wrestling with washdown cycles, moisture ingress, and connector wear will appreciate its durable nickel-plated brass contacts and nylon housing. With IP69K and IP67 protections, this two-pole, three-wire device maintains reliable operation across variable voltages, including 60A at 250V or 63A at 200-250V. The flexible design accommodates a broad cable range and grounding options, enabling straightforward panel, conveyor, and machine wiring. By aligning with Eaton’s Arrow Hart pin-and-sleeve ecosystem, it supports scalable, compliant installations that reduce maintenance intervals and improve uptime across tough manufacturing environments.
Product Information
Extended Description
AH360C6WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 60/63A, 60A 250V/63A 200-250V, two-pole, 0.66-1.5in (1.68-3.81cm) cable diameter, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), nickel plated brass, 3 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH360C6WDR
UPC
032664006708
Product Length/Depth
10 in
Product Height
4.29 in
Product Width
4.29 in
Product Weight
2.05 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
60/63A
Voltage rating
60A 250V/63A 200-250V
Contact material
Nickel plated brass
Number of wires
3 Grounding
Number Of Poles
Two-pole
Cable diameter
0.66-1.5in (1.68-3.81cm)
Environmental resistance
IP69K IP67
Allowable wire size
#8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot)
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
60A Dual Rated pin and sleeve devices spec sheet
Feature → Business Impact → Application: IP69K and IP67 environmental protection delivers superior washdown resistance, reducing corrosion and downtime in food processing and automotive assembly lines. This translates to lower maintenance costs and longer service intervals for critical connectors used on motors and control panels. Application: washdown-heavy facilities and outdoor equipment where environments demand robust ingress protection. Feature → Business Impact → Application: 60/63A amperage rating with dual voltage options (60A 250V / 63A 200-250V) enables direct, high-current connections to motor starters and control circuits without multiple adapters. Application: conveyors, presses, and automated machinery requiring reliable power in compact, two-pole form. Feature → Business Impact → Application: 0.66-1.5 in cable diameter capability supports field-wiring flexibility and reduces stocking diversity. Application: panel assemblies and machine wiring in variable layout installations. Feature → Business Impact → Application: nickel-plated brass contacts offer corrosion resistance and low contact resistance for dependable performance over time. Application: harsh industrial environments and intermittent washdowns where contact reliability drives uptime. Feature → Business Impact → Application: nylon face/body provides lightweight, chemical resistance and impact protection, simplifying installation and maintenance. Application: rugged housings in rugged shop floors, food processing, and packaging lines. Feature → Business Impact → Application: grounding and 3-wire configuration enhances safety and EMI management. Application: protection of motor controls and automation modules in demanding environments. Feature → Business Impact → Application: Arrow Hart compatibility enables quick sourcing, easier stock management, and faster installation. Application: system upgrades and panel refits within Eaton’s pin-and-sleeve ecosystem.
