Eaton AH360C7W Pin and Sleeve Connector - IP69K Rated
Part Number: AH360C7W
Quick Summary
Eaton AH360C7W pin and sleeve connector is a rugged power interconnect designed for industrial equipment and harsh environments. Typical challenges include ensuring reliable grounding and washdown resistance while maintaining quick, field-serviceable wiring. With IP69K rated sealing, IP67 protection, and nickel plated brass contacts, this connector meets stringent hygiene and uptime requirements. By combining back-wire installation with a 60 A, 480 V rating, it delivers robust power interconnects for heavy-duty lines and reduces maintenance cost over the device life. Ideal for food and beverage, wastewater, and general industrial automation, it fits into existing Eaton Arrow Hart ecosystems to improve reliability and uptime.
Product Information
Extended Description

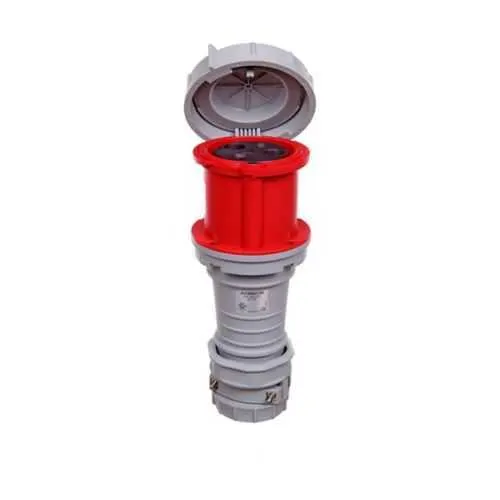

AH360C7W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #8-#2 AWG, #10-#2 AWG (Ground), #12-#16 AWG (Pilot), 60A, 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, 2-pole, 3-wire, grounding, 0.66-1.5in (1.68-3.81cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH360C7W
UPC
040893623122
Product Length/Depth
11.5 in
Product Height
5.125 in
Product Width
5.125 in
Product Weight
2.015 lb
Certifications
cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
60A
Voltage rating
480 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
Grounding 3 Three-wire
Number Of Poles
Two-pole
Cord diameter
0.66-1.5in (1.68-3.81cm)
Environmental resistance
IP67 IP69K
Color
Red
Gender
Female
Allowable wire size
#8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot)
Torque rating
28 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH360C7W
Eaton Specification Sheet - AH360C7W
Feature IP69K rated seal → Business Impact Provides superior washdown and high-temperature resistance, reducing failure risk in harsh environments; Application Food processing, wastewater treatment, and outdoor installations where frequent cleaning is required. Feature 60A at 480V → Business Impact Supports high-current loads with headroom for powerful equipment, leading to fewer connectors in parallel and streamlined panel design; Application Industrial automation, heavy machinery power distribution. Feature Back-wire wiring → Business Impact Delivers faster, debris-free terminations and repeatable torque consistency, lowering field labor time and traceability issues; Application Maintenance shops and field installs. Feature Nylon housing with nickel-plated brass contacts → Business Impact Combines chemical resistance and durable contact performance, extending life cycles in humid or corrosive environments; Application Food & beverage, wastewater, and general automation. Feature 2-pole, grounding 3-wire configuration with #8–#2 AWG primary conductors → Business Impact Enables robust grounding and versatile cable options, reducing inventory complexity and installation errors; Application Industrial power interconnects and panel assemblies. Feature 0.66–1.5 in cord diameter compatibility → Business Impact Maximizes field adaptability across common cable sizes, lowering the need for custom adapters; Application OEM integrations and retrofit projects. Feature IP67 and IP69K ratings → Business Impact Ensures reliable sealing across washdown and outdoor conditions, supporting compliance with hygiene standards; Application Food & beverage, dairy, and chemical processing. Feature Color-coded red and female design → Business Impact Aids fast identification during wiring and maintenance, reducing setup time and miswiring risk; Application System integrators and installation teams.
