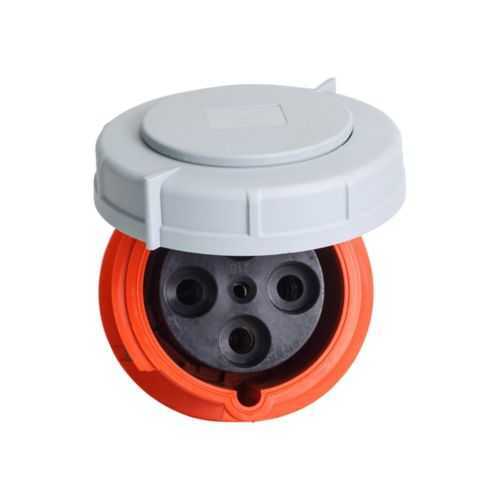

Eaton AH4100C12W Pin and Sleeve Connector - IP69K Rated
Part Number: AH4100C12W
Quick Summary
AH4100C12W pin and sleeve connector from Eaton provides robust, high-current power connections for harsh industrial environments. Engineers often face washdown exposure, corrosion risk, and costly downtime when wiring equipment in food and beverage, wastewater, or heavy manufacturing settings. The device carries IP69K and IP67 environmental ratings and cRUus certification, ensuring reliable performance under aggressive cleaning cycles and stringent safety requirements. Back-wire wiring, 4-wire grounding, and a compact nylon housing enable straightforward installation, while nickel-plated brass contacts deliver dependable, high-conductivity connections for long service life in demanding operations.
Product Information
Extended Description
AH4100C12W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 125/250V, Back wire, Orange, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, 0.97-1.94in (2.46-5.00cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH4100C12W
UPC
040893620497
Product Length/Depth
13.375 in
Product Height
5.625 in
Product Width
5.5 in
Product Weight
3.48 lb
Certifications
cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
100A
Voltage rating
125/250 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
Grounding 4 Four-wire
Number Of Poles
Three-pole
Cord diameter
0.97-1.94in (2.46-5.00cm)
Environmental resistance
IP67 IP69K
Color
Orange
Gender
Female
Allowable wire size
#4 -1/0 AWG, #12 - #16 AWG (pilot)
Torque rating
70 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH4100C12W
Eaton Specification Sheet - AH4100C12W
IP69K and IP67 environmental protection delivers washdown-ready reliability, reducing maintenance downtime in food and beverage facilities and wastewater plants. This translates to higher up-time and safer operation in harsh cleaning cycles, while supporting compliance with industry hygiene standards. The 100A, 125/250V rating, three-pole, four-wire design with grounding enables high-load distribution for automation equipment and motors, minimizing the need for multiple adapters and simplifying panel wiring. Back-wire wiring and a 70 lbf-in torque rating streamline installation, improve terminal integrity, and reduce field failures in rugged environments. Nickel-plated brass contacts paired with a Nylon housing resist corrosion and abrasion, delivering stable performance across temperature swings and demanding production schedules. Compatibility with Arrow Hart pin and sleeve devices supports scalable plant-wide power distribution. This connector also addresses common objections about cost by delivering longer service life, easier maintenance, and faster commissioning in industrial and process automation settings.
