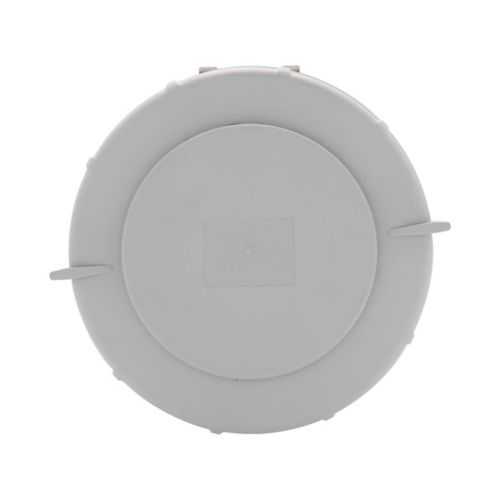

Eaton AH4100C5W pin-sleeve connector - IP69K rated
Part Number: AH4100C5W
Quick Summary
Eaton AH4100C5W pin-sleeve connector is designed for reliable three-phase power distribution in harsh industrial environments. When moisture, dust, or miswiring threaten uptime, you need a connector that seals tightly and installs quickly. This device carries IP67 and IP69K ruggedness, cRUus certification, and a 3Ø 600 V/100 A rating to support safe, compliant operation. Built with a nylon body and nickel-plated brass contacts, it pairs with back-wire terminations for scalable automation and cost-effective maintenance.
Product Information
Extended Description
AH4100C5W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3Ø 600V, Back wire, Black, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.97-1.94in (2.46-5.00cm), Female, 30 HP, 3PH
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH4100C5W
UPC
040893620503
Product Length/Depth
13.375 in
Product Height
5.625 in
Product Width
5.5 in
Product Weight
3.48 lb
Certifications
cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
100A
Voltage rating
3Ø 600 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
Grounding 4 Four-wire
Number Of Poles
Three-pole
Cord diameter
0.97-1.94in (2.46-5.00cm)
Phase
Three-phase
Environmental resistance
IP67 IP69K
Color
Black
Gender
Female
Horsepower
30 hp
Allowable wire size
#4 -1/0 AWG, #12 - #16 AWG (pilot)
Torque rating
70 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH4100C5W
Eaton Specification Sheet - AH4100C5W
IP69K and IP67 washdown readiness is built into the housing, delivering rugged durability and reduced downtime in high-pressure cleaning environments. The result is lower maintenance costs and longer service life for equipment in food and beverage, wastewater, and general industrial processes. With a three-pole, four-wire configuration rated at 100 A and 3Ø 600 V, it supports heavy motor loads up to 30 HP, enabling compact, reliable drives for pumps and fans. Back-wire wiring simplifies field terminations, speeds installation in control panels, and minimizes termination errors during panel upgrades. Nickel-plated brass contacts deliver corrosion resistance in challenging environments, while the nylon body keeps the assembly lighter without sacrificing strength, improving handling and installation in tight spaces. Cord diameter compatibility from 0.97 to 1.94 inches and a 70 lbf-inch torque rating ensure a secure, repeatable connection across a range of cable types. Designed for industrial, food and beverage, and wastewater applications, this device aligns with cRUus and safety standards for compliant operations. Overall, it supports easy replacements, scalable configurations, and dependable uptime for critical production lines.
Get a Quick Quote for a Eaton AH4100C5W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH4100C5W?
Enquire Now
FAQs
The AH4100C5W is a three-pole, four-wire pin-and-sleeve connector designed for standard IEC 60309-style systems. It uses a back-wire termination, nylon body, and nickel-plated brass contacts to ensure a secure, corrosion-resistant connection. With a 3Ø 600 V rating and 100 A capacity, it integrates smoothly with common industrial motors and control gear while meeting typical industry certifications.
AH4100C5W carries IP67 and IP69K ratings, protecting against water ingress and heavy washdowns. The nylon housing and corrosion-resistant nickel-plated brass contacts withstand chemicals and cleaning agents found in food, beverage, and wastewater facilities, reducing maintenance cycles and extending connector life in harsh operating conditions.
Yes. It is rated for 100 A and 3Ø 600 V with a 30 HP capability in a three-pole, four-wire configuration. This makes it suitable for medium-to-large industrial motors and motor drives. The cord diameter compatibility of 0.97–1.94 inches supports a wide range of cables, while back-wire terminations streamline installation in equipment racks and panels.
Back-wire wiring simplifies field terminations by allowing direct insertion of conductors into the clamp. Ensure torque is applied to the rated 70 lbf-inch for consistent contact pressure, and verify cable diameter falls within 0.97–1.94 inches. The connector’s nylon body and secure seal help maintain enclosure integrity, while its 13.375 inch length and 5.625 by 5.5 inch footprint fit typical industrial mounting footprints.
In food & beverage and wastewater environments, AH4100C5W delivers reliable, washdown-ready power connections with IP67/IP69K protection and corrosion-resistant contacts. The durable nylon body and back-wire design reduce maintenance time, minimize downtime, and improve regulatory compliance (cRUus). The 100 A, 3Ø 600 V rating supports essential pumps, mixers, and motors, delivering consistent performance and long-term cost savings.
