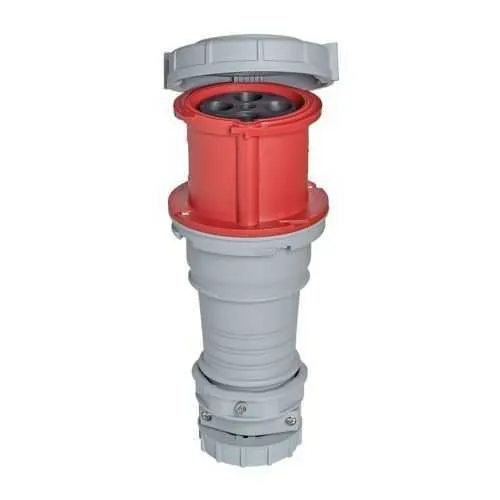

Eaton AH4100C6WDR Pin and Sleeve Connector - IP69K Rated
Part Number: AH4100C6WDR
Quick Summary
Eaton AH4100C6WDR is a pin and sleeve connector for rugged, IP69K-rated industrial connections. Installers often confront ingress, leaks, and mating instability in harsh washdown environments. Its IP69K protection and IP67 compatibility, 100/125A amperage, and 380-415V three-phase rating address harsh process lines. This rugged connector integrates with Eaton Arrow Hart systems to shorten installation time and reduce maintenance. Designed with nickel-plated brass contacts and a nylon body, it withstands industrial temperature swings while preserving signal integrity. Adopting this connector helps OEMs and maintenance teams meet safety standards, reduce downtime, and improve overall equipment efficiency. Whether you’re upgrading industrial control panels or renewing field connections in food processing, this pin-and-sleeve solution delivers reliability you can trust.
Product Information
Extended Description
AH4100C6WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 100/125A, 100/125A 3Ø 380-415V, three-pole, 0.97-1.94in (2.46-5.00cm) cable diameter, #4 -1/0 AWG, #12 - #16 AWG (pilot), nickel plated brass, 4 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH4100C6WDR
UPC
032664006753
Product Length/Depth
11.83 in
Product Height
4.86 in
Product Width
4.86 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
100/125A
Voltage rating
100/125A 3Ø 380-415V
Contact material
Nickel plated brass
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cable diameter
0.97-1.94in (2.46-5.00cm)
Environmental resistance
IP69K IP67
Allowable wire size
#4 -1/0 AWG, #12 - #16 AWG (pilot)
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
100A Dual Rated pin and sleeve devices spec sheet
IP69K rating delivers washdown-ready reliability in high-pressure environments. That protection reduces ingress risk, cutting downtime and maintenance costs in food processing, pharmaceutical, and automotive assembly lines. High amperage and 4-wire, three-pole design supports robust power distribution. In practice, this enables safer, compliant connections for machines using 380-415V three-phase power, streamlining panel wiring and field terminations. Cable diameter range of 0.97-1.94 inches and pilot wires #12-#16 simplify harness design. This reduces connector rework during installation and lowers total assembly time. Nickel-plated brass contacts deliver longevity and corrosion resistance in harsh environments, extending service life and guarding performance in washdown and oily environments. Nylon body provides light yet durable housing; compatibility with Arrow Hart offerings speeds design-in and keeps spare parts readily available, reducing downtime during maintenance.
Get a Quick Quote for a Eaton AH4100C6WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH4100C6WDR?
Enquire Now
FAQs
The AH4100C6WDR is designed for three-phase power setups, rated at 100/125A with 380-415V, and accommodates main conductors from #4 to 1/0 AWG plus pilot wires #12 to #16. It uses a four-wire arrangement with grounding, and a three-pole configuration, making it suitable for aggressive industrial harnesses and panel-to-device terminations.
IP69K protection ensures resistance to high-pressure, high-temperature water jets, minimizing ingress of dust and moisture. This translates to lower maintenance cycles, fewer field failures, and greater uptime in food processing, pharmaceuticals, and automotive manufacturing where frequent cleaning is required.
Yes. The AH4100C6WDR is a three-pole connector rated for 100/125A at 380-415V, designed for reliable three-phase power distribution. Its 4-wire configuration supports grounding and safe, compliant terminations in automated machinery, conveyors, and motor loads.
Key certifications include IP69K protection and IP67 compatibility, ensuring washdown and dust resistance in harsh environments. While CE and SIL certifications aren’t specified in the data, the IP ratings and robust construction align with common industrial safety and reliability expectations for harsh-duty applications.
By reducing ingress-related failures, enabling faster field terminations, and enabling reliable three-phase connections, the AH4100C6WDR lowers downtime and maintenance costs. Its rugged nylon body and corrosion-resistant contacts extend service intervals, contributing to lower total cost of ownership in continuous operation environments.
