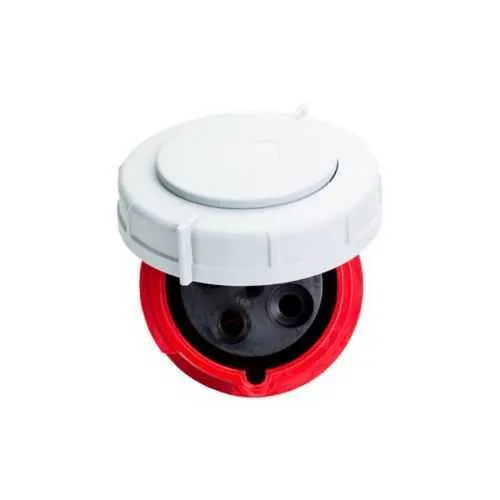

Eaton AH4100C7W Pin and Sleeve Connector - IP69K
Part Number: AH4100C7W
Quick Summary
The Eaton AH4100C7W pin and sleeve connector provides rugged, watertight three-phase power connections for industrial equipment. Maintenance teams face moisture ingress, washdown exposure, and field-termination challenges that drive downtime and rework. This device meets demanding standards with IP69K and IP67 ratings, a cRUus certification, and nickel-plated brass contacts for durable, low-resistance performance. Back-wire termination simplifies field installs, while its nylon body and red housing aid quick identification in cluttered panels. By combining robust mechanical protection with trusted electrical ratings, the AH4100C7W delivers reliable power delivery and lower total cost of ownership for food & beverage, wastewater, and other harsh-industrial applications.
Product Information
Extended Description
AH4100C7W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.97-1.94in (2.46-5.00cm), Female, 20 HP, 3PH
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH4100C7W
UPC
040893620510
Product Length/Depth
13.375 in
Product Height
5.625 in
Product Width
5.5 in
Product Weight
3.48 lb
Certifications
cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
100A
Voltage rating
3Ø 480 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-Duty
Wiring method
Back wire
Number of wires
Grounding 4 Four-wire
Number Of Poles
Three-pole
Cord diameter
0.97-1.94in (2.46-5.00cm)
Phase
Three-phase
Environmental resistance
IP69K IP67
Color
Red
Gender
Female
Horsepower
20 hp
Allowable wire size
#4 -1/0 AWG, #12 - #16 AWG (pilot)
Torque rating
70 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH4100C7W
Eaton Specification Sheet - AH4100C7W
The AH4100C7W uses IP69K/IP67 protection to survive high-pressure washdowns in clean-in-place environments, with quick-connect design enabling fast panel installation. This protection minimizes ingress and reduces unscheduled downtime in food processing and wastewater facilities. Rated 100A and 3Ø 480V, with back-wire termination and a 70 lbf-in torque, it handles demanding motor drives and equipment cords up to #4-1/0 AWG while allowing pilot wires #12-#16 AWG. This supports reliable, field-terminable connections and helps prevent overheating or arcing in rugged plant layouts.Nickel-plated brass contacts on a nylon body deliver low contact resistance and durable corrosion resistance, while the red housing aids identification in dense junction boxes. These materials choices translate to longer service life and easier troubleshooting in busy control panels.Back-wire wiring of four wires in a three-pole, four-wire configuration supports reliable grounding and safe operation, with a cord diameter range of 0.97-1.94 inches for flexible cable compatibility. The combination of hardware and enclosure materials simplifies installation and reduces commissioning time in new builds or retrofits.Designed for industrial, food and beverage, and wastewater applications, the AH4100C7W is an extra heavy-duty device-grade connector built to meet cRUus standards. This makes it an ideal option for OEMs and end users aiming to minimize downtime and total cost of ownership.
Get a Quick Quote for a Eaton AH4100C7W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH4100C7W?
Enquire Now
FAQs
The AH4100C7W uses back-wire termination with a 3-pole, 4-wire configuration and supports main conductors sized #4-1/0 AWG with pilot wires #12-#16 AWG. This provides a versatile, secure termination in demanding industrial panels while maintaining proper torque (70 lbf-in) for reliable connections.
Key ratings include 100A at 480V three-phase operation, with nickel-plated brass contacts for low resistance and corrosion resistance. The device is designed for rugged duty and features a 70 lbf-in torque specification to ensure a stable, long-lasting connection in challenging environments.
Yes. The connector is IP69K and IP67 rated for high-pressure washdown protection, with a nylon housing and nickel-plated brass contacts. These features enable reliable operation in food & beverage and wastewater treatment facilities where washdown and chemical exposure are common.
The AH4100C7W carries cRUus certification, indicating UL recognition for North American markets. Combined with IP69K/IP67 ingress protection, these certifications help ensure regulatory compliance, safety, and reliability in harsh industrial environments.
The IP69K/IP67 protection minimizes ingress-related downtime, while back-wire termination and a durable nickel-plated brass contact system reduce maintenance frequency and rework. These factors translate to improved uptime, faster commissioning, and lower total cost of ownership across long-running assembly lines and process facilities.
