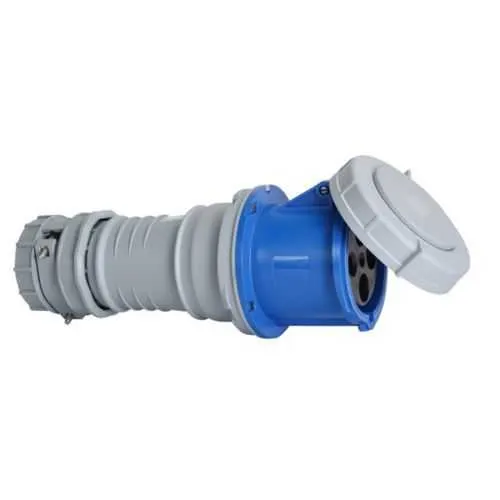

Eaton AH4100C9WDR Pin and Sleeve Connector - IP69K Rated
Part Number: AH4100C9WDR
Quick Summary
The Eaton AH4100C9WDR pin and sleeve connector provides a rugged, reliable power interface for industrial equipment, delivering secure, field-serviceable power connections in harsh environments. In many plants, moisture ingress, washdown cycles, and vibration drive premature wear on quick-disconnect devices, leading to unplanned downtime and escalating maintenance costs. This model carries key certifications and ratings that reduce risk: IP69K sealed for high-pressure washdowns, IP67 compatibility in damp installations, and a robust three-pole, 100/125A design for heavy loads. With nickel-plated brass contacts and a nylon body, it balances corrosion resistance with lightweight, cost-effective maintenance for automation projects.
Product Information
Extended Description
AH4100C9WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 100/125A, 100A 250V/125A 200-250V, three-pole, 0.97-1.94in (2.46-5.00cm) cable diameter, #4 -1/0 AWG, #12 - #16 AWG (pilot), nickel plated brass, 4 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH4100C9WDR
UPC
032664006760
Product Length/Depth
11.83 in
Product Height
4.86 in
Product Width
4.86 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
100/125A
Voltage rating
100A 250V/125A 200-250V
Contact material
Nickel plated brass
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cable diameter
0.97-1.94in (2.46-5.00cm)
Environmental resistance
IP69K IP67
Allowable wire size
#4 -1/0 AWG, #12 - #16 AWG (pilot)
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
100A Dual Rated pin and sleeve devices spec sheet
Feature → Business Impact → Application: IP69K sealed housing with IP67 compatibility ensures protection against high‑pressure washdowns and humidity, lowering field fault rates and warranty costs. Application: food processing, pharmaceuticals, and outdoor equipment require dependable sealing; this connector delivers that reliability in daily sanitation cycles. Feature → Business Impact → Application: 100/125A rating and 4-wire layout handle demanding loads with robust safety margins, reducing heating risk and unplanned disconnections. Application: motor drives, pumps, and industrial automation panels needing secure, multiwire power at common voltages (100A 250V or 125A 200-250V). Feature → Business Impact → Application: nickel-plated brass contacts resist corrosion, extending service life in humid or coastal facilities and lowering maintenance costs. Application: washdown zones, coastal plants, and equipment enclosures. Feature → Business Impact → Application: nylon body delivers lightweight, rugged housing that eases field wiring installation and reduces enclosure strain. Application: control panels, junction boxes, and portable equipment. Feature → Business Impact → Application: supports #4‑1/0 AWG main conductors and #12‑#16 AWG pilots with 0.97‑1.94 in cable diameter, enabling flexible, scalable wiring for mixed‑power systems. Application: installers and electricians in OEM manufacturing and industrial maintenance. It also aligns with Arrow Hart mating devices for quick, dependable field changes.
Get a Quick Quote for a Eaton AH4100C9WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH4100C9WDR?
Enquire Now
FAQs
AH4100C9WDR is rated 100/125A and supports a three-pole, 4-wire configuration, enabling robust power delivery for motors, pumps, and drives. Nickel-plated brass contacts ensure low resistance and corrosion resistance, while IP69K sealing minimizes washdown-related faults. This combination delivers reliable performance in demanding environments and reduces unplanned maintenance.
Yes. The connector supports main conductors up to #4-1/0 AWG and pilot conductors #12-#16 AWG, with a cable diameter range of 0.97-1.94 inches. This flexibility simplifies integration with existing Arrow Hart devices and enables mixed-power system wiring without compromising safety or compliance.
The AH4100C9WDR features IP69K sealing for high-pressure washdowns and IP67 compatibility for damp conditions. Its three-pole, rugged design is optimized for harsh environments such as food processing, packaging lines, and outdoor installations, meeting demanding industry standards while maintaining consistent performance.
Choose main conductors up to #4-1/0 AWG and pilots #12-#16 AWG, ensuring the overall cable diameter stays within 0.97-1.94 inches. Confirm system voltage supports 100A at 250V or 125A at 200-250V, and use proper crimping and strain relief to maintain isolation and reliability under operational stresses.
IP69K protection reduces ingress from high-pressure washdowns, lowering fault frequency and maintenance intervals. Corrosion-resistant nickel-plated brass contacts and a durable nylon body extend service life in humid or coastal facilities, translating to lower replacement costs and improved uptime in process plants and packaging lines.
