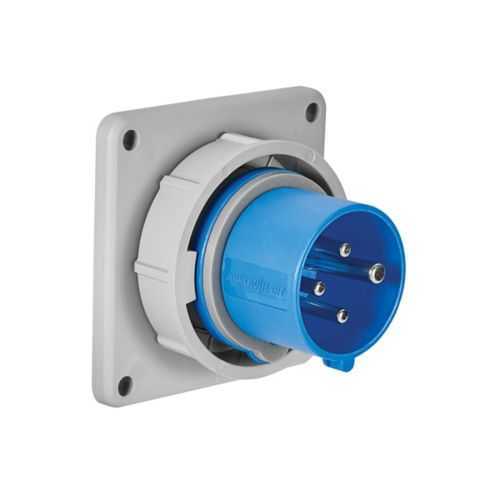

Eaton AH420C6WDR Pin and Sleeve Connector - IP69K Rated
Part Number: AH420C6WDR
Quick Summary
Eaton Arrow Hart AH420C6WDR pin and sleeve connector is a rugged, high-performance power coupling designed for harsh industrial environments. Operators in manufacturing and automation often struggle with washdown exposure, moisture intrusion, and unreliable power connections in conveyors and machines. The design delivers IP69K protection and IP67 endurance while using a nylon body and nickel-plated brass contacts to resist corrosion and wear. With a three-pole, 16/20A rating at 380-415V and a 4-wire configuration, it supports reliable three-phase power delivery in demanding installations. This combination reduces maintenance costs, minimizes downtime, and simplifies spare-part management for OEMs and industrial service teams.
Product Information
Extended Description
AH420C6WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 16/20A, 16/20A 3Ø 380-415V, three-pole, 0.333-0.775in (0.85-1.97cm) cable diameter, #12 - #10 AWG, nickel plated brass, 4 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH420C6WDR
UPC
032664006838
Product Length/Depth
6.89 in
Product Height
3.28 in
Product Width
3.28 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
16/20A
Voltage rating
16/20A 3Ø 380-415V
Contact material
Nickel plated brass
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cable diameter
0.333-0.775in (0.85-1.97cm)
Environmental resistance
IP69K IP67
Allowable wire size
#12 - #10 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
20A Dual Rated pin and sleeve devices spec sheet
IP69K rated housing provides washdown-ready resilience, preventing water ingress that can cause corrosion and faults. This translates to longer service life in food processing, beverage, and automotive assembly lines, reducing maintenance cycles and downtime. The 3Ø 380-415V, 16/20A rating and four-wire configuration ensure robust three-phase power delivery for heavy equipment. Nickel-plated brass contacts deliver low contact resistance and high mating durability, while the nylon body resists impact and chemical exposure, enhancing total cost of ownership in harsh environments. Allowable wire size #12–#10 AWG and cable diameter 0.333–0.775 in support flexible, field-assembled connections across equipment footprints, minimizing the need for adapters and rework. Compatibility with Arrow Hart pin and sleeve devices enables quick mating and standardized installation across fleets, reducing training time and inventory complexity. In practice, these features translate to fewer field failures and faster corrective maintenance in automation lines.
Get a Quick Quote for a Eaton AH420C6WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH420C6WDR?
Enquire Now
FAQs
Ensure mounting aligns with the four-wire, three-pole configuration and that the connector is mated with compatible Arrow Hart pin and sleeve devices. Use proper strain relief for wire size #12–#10 AWG and confirm cable diameter within 0.333–0.775 in to maintain IP69K integrity during washdown environments.
Yes. The connector is rated 16/20A and supports 380-415V in a three-pole, four-wire configuration, making it well suited for typical industrial automation and motor-drive applications.
The device uses a nylon body with nickel-plated brass contacts, delivering corrosion resistance and low contact resistance. Its IP69K rating (and IP67 protection in other conditions) provides washdown and dust ingress protection, reducing maintenance and extending service life.
The connector supports #12–#10 AWG conductors with a cable diameter range of 0.333–0.775 inches, enabling flexible field assemblies across a variety of equipment and installation needs.
Product length is 6.89 in with a width and height of 3.28 in each, and a listed weight of 0.01 lb, information useful for enclosure fitment and mounting planning in compact automation cabinets.
