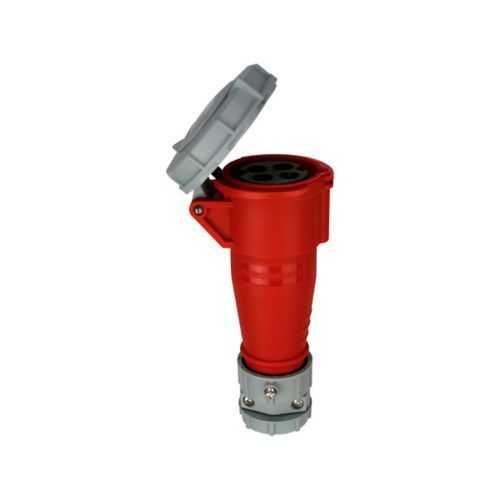

Eaton AH420C7W Pin and Sleeve Connector - IP69K Rated
Part Number: AH420C7W
Quick Summary
AH420C7W pin and sleeve connector from Eaton provides secure, high-current power connections for industrial machinery. In harsh environments, inconsistent terminations and inadequate seals drive downtime and costly maintenance. Its IP69K and IP67 ratings, along with cRUus certification, ensure washdown compatibility and global regulatory alignment. The nylon housing paired with nickel-plated brass contacts supports 3-phase, 480V systems while simplifying field wiring. Designed for reliability and ease of installation, this connector integrates seamlessly with Eaton Arrow Hart devices, delivering durable performance across demanding power-distribution applications and helping procurement teams standardize rugged wiring solutions.
Product Information
Extended Description
AH420C7W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, 0.333-0.775in (0.85-1.97cm), Female, 5 HP, Nylon, Three-phase
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH420C7W
UPC
032664733475
Product Length/Depth
8.5 in
Product Height
4.375 in
Product Width
4.375 in
Product Weight
0.749 lb
Certifications
cRUus
Special features
Connecctor
Type
Connector
Amperage Rating
20A
Voltage rating
480 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cord diameter
0.333-0.775in (0.85-1.97cm)
Phase
Three-phase
Environmental resistance
IP69K IP67
Color
Red
Gender
Female
Horsepower
5 hp
Allowable wire size
#12-10 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH420C7W
Eaton Specification Sheet - AH420C7W
AH420C7W pin and sleeve connector is built to endure demanding industrial environments. The IP69K/IP67 environmental resistance protects against washdown and incidental moisture exposure, reducing unplanned downtime and maintenance costs in food and beverage and wastewater facilities. The 20A, 480V, three-phase rating supports higher load motor drives and equipment, improving overall line efficiency and reducing panel wiring complexity in automation cells. Nickel-plated brass contacts offer corrosion resistance and reliable conductivity, extending service life in challenging environments and lowering replacement costs. A nylon body with back-wire termination simplifies installation, enabling faster commissioning and safer terminations, while the compact form factor optimizes panel density for modern control enclosures. Compatibility with standard Eaton pin and sleeve devices ensures scalable, cost-effective expansion of power-distribution networks across facilities.
Get a Quick Quote for a Eaton AH420C7W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH420C7W?
Enquire Now
FAQs
AH420C7W uses a back-wire termination design that accepts #12-10 AWG conductors, enabling fast, secure field terminations. The four-wire configuration includes a dedicated grounding path and a three-pole arrangement for robust three-phase power. Torque specifications and contact geometry are optimized to maintain low-resistance connections while reducing installer effort and potential wiring errors.
The connector is rated for 20A at 480V in a three-phase, four-wire setup. It features nickel-plated brass contacts and a nylon housing designed for reliability in demanding environments. Cord diameter compatibility is 0.333-0.775 inches, supporting a range of field Equipment wiring while maintaining secure mating and high current handling.
Yes. AH420C7W carries IP69K and IP67 environmental protection, making it well-suited for washdown-heavy industries like food & beverage and wastewater treatment. Its nylon housing and corrosion-resistant contacts help withstand cleaning agents and moisture exposure, while maintaining electrical integrity and safe operation in demanding production environments.
The AH420C7W is certified cRUus, indicating compliance with North American safety standards. IP69K and IP67 ratings confirm watertight performance in high-pressure washdown scenarios. These certifications support regulatory compliance, reduce the need for site-specific testing, and enable faster project approvals in industrial facilities.
The combination of IP-rated sealing, durable nickel-plated contacts, and a robust nylon body lowers maintenance frequency by minimizing moisture ingress and contact wear. Back-wire terminations speed up serviceability, reducing downtime during inspections or after equipment upgrades. Over time, these factors contribute to lower total cost of ownership and improved uptime for motor drives and three-phase power systems.
