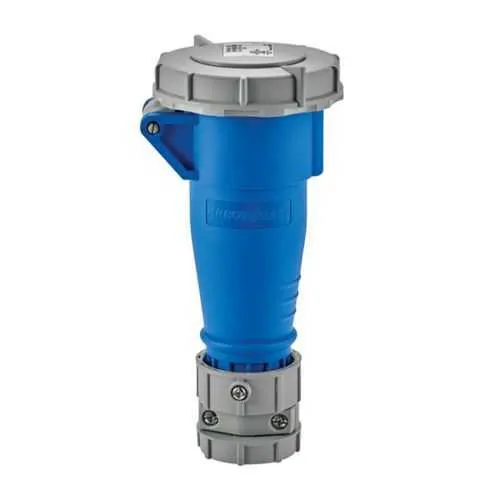

Eaton AH420C9WDR Pin & Sleeve Connector - IP69K Rated
Part Number: AH420C9WDR
Quick Summary
The Eaton Arrow Hart pin and sleeve connector delivers reliable interconnection for industrial equipment and control panels. Manufacturers often struggle with washdown exposure, moisture ingress, and mismatched cable sizes that slow installation. With IP69K protection and IP67 compatibility, nickel-plated brass contacts and a nylon housing, this dual-rated, three-pole, 4-wire connector supports rugged environments while simplifying field wiring. The design optimizes uptime and ease of maintenance in automated lines, water-intensive processes, and outdoor equipment. By aligning with standard wire gauges (#12 - #10 AWG) and a compact footprint, it also helps procurement and engineering teams reduce part variety and inventory costs without sacrificing performance.
Product Information
Extended Description
AH420C9WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 16/20A, 16A 250V/20A 200-250V, three-pole, 0.333-0.775in (0.85-1.97cm) cable diameter, #12 - #10 AWG, nickel plated brass, 4 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH420C9WDR
UPC
032664006845
Product Length/Depth
6.89 in
Product Height
3.28 in
Product Width
3.28 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
16/20A
Voltage rating
16A 250V/20A 200-250V
Contact material
Nickel plated brass
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cable diameter
0.333-0.775in (0.85-1.97cm)
Environmental resistance
IP69K IP67
Allowable wire size
#12 - #10 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
20A Dual Rated pin and sleeve devices spec sheet
Feature: IP69K rated for high-pressure washdown environments. Business Impact: Delivers dependable sealing against moisture, dust, and spray, reducing unplanned downtime and extending service life in food processing, beverage, and pharmaceutical facilities. Application: Ideal for washdown zones in automated production lines where cleanliness and protection are critical. Feature: Three-pole, four-wire configuration with grounding. Business Impact: Ensures proper grounding and reliable power distribution across automated controllers and motors, improving safety and electrical performance in control panels and equipment housings. Application: Suitable for industrial automation equipment requiring robust 4-wire power connections. Feature: Cable diameter range 0.333-0.775 in (0.85-1.97 cm) and allowable wire size #12-#10 AWG. Business Impact: Provides flexible field wiring options, reducing the need for multiple connector variants and speeding installation in diverse machine layouts. Application: Works with common field cables in conveyors, robotics, and packaging lines. Feature: Nickel-plated brass contact material. Business Impact: Offers corrosion resistance and durable conduction, lowering maintenance costs and extending connector life in humid or chemical-exposed environments. Application: Essential for outdoor equipment and washdown zones. Feature: Nylon face/body with compact, panel-friendly footprint. Business Impact: Lightweight, impact resistant, and easier to mount in tight spaces, improving installation time and panel density. Application: Widely applicable in control cabinets and equipment enclosures where space is at a premium. Feature: IP67 protection and general ruggedization notes. Business Impact: Provides versatile environmental protection to handle submersion risks and tough industrial conditions, supporting broader deployment across facilities. Application: Suitable for both indoor and outdoor automation installations seeking dual-rated reliability.
Get a Quick Quote for a Eaton AH420C9WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH420C9WDR?
Enquire Now
FAQs
When installing the AH420C9WDR, ensure mating with the correct compatible receptacle, support the 0.333-0.775 inch cable diameter using #12-#10 AWG conductors, and secure the nylon housing to maintain IP69K sealing. Use proper tightening torque on connection points and verify grounding continuity for safe, reliable operation in wet, high-pressure washdown areas.
The connector’s amperage rating of 16/20A and voltage rating of 16A 250V/20A 200-250V define its suitability for mixed power circuits. The three-pole, four-wire configuration with grounding ensures correct phase distribution and safe operation in automation panels and motors, meeting typical factory electrical standards for industrial equipment.
Best suited for rugged automation environments such as food processing, beverage, chemical, and outdoor equipment where washdown protection and reliable power interconnects are critical. Its compact, three-pole design and 0.333-0.775 in cable range support diverse machinery, conveyors, and robotics requiring durable pin and sleeve connections.
The AH420C9WDR features IP69K protection for high-pressure washdowns and IP67 compatibility for robustness in submersion or harsher environments. The nickel-plated brass contacts provide corrosion resistance, while the nylon housing offers impact resistance and a lightweight footprint suitable for demanding industrial settings.
The durable nickel-plated contacts and nylon housing reduce corrosion and wear, lowering maintenance frequency. IP69K protection minimizes contamination-related failures, while the compact form factor speeds installation and reduces panel space requirements, contributing to lower downtime and long-term cost savings in automation and manufacturing environments.
