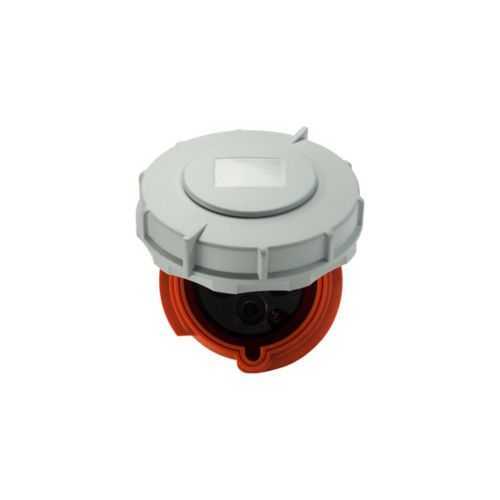

Eaton AH430C12W Pin and Sleeve Connector - IP69K
Part Number: AH430C12W
Quick Summary
The Eaton AH430C12W pin and sleeve connector provides rugged industrial power connections for three-pole, four-wire assemblies in harsh environments. Engineers often contend with water ingress, dust intrusion, and maintenance downtime that derail project schedules. This unit delivers IP67 and IP69K protection, nickel-plated brass contacts, and a nylon housing designed for reliable back-wire terminations. With a 30A rating at 125/250 V and compatibility with #10-2 AWG conductors, it supports compliant, durable installations across industrial, food and beverage, and wastewater applications. By marrying durable materials with a compact footprint, it reduces field rework, simplifies splices, and drives operating efficiency while meeting cRUus certification requirements.
Product Information
Extended Description
AH430C12W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 30A, Extra Heavy-Duty, 125/250V, Back wire, Orange, Nickel plated brass, IP67, IP69K, Nylon, Three-pole, Four-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH430C12W
UPC
032664732706
Product Length/Depth
10.375 in
Product Height
4.813 in
Product Width
4.75 in
Product Weight
1.207 lb
Certifications
cRUus
Type
Connector
Amperage Rating
30A
Voltage rating
125/250 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cord diameter
0.433-0.985in (1.10-2.5cm)
Environmental resistance
IP67 IP69K
Color
Orange
Gender
Female
Allowable wire size
#10-2 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
