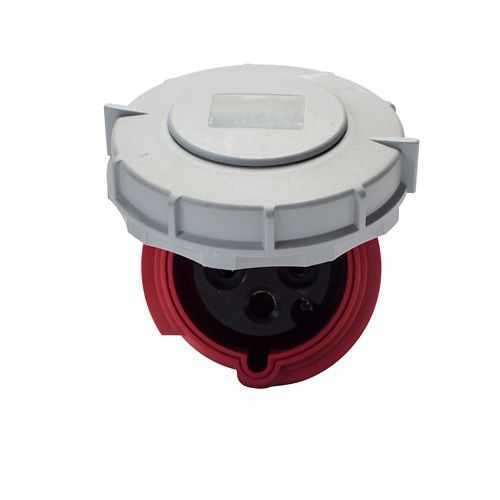

Eaton AH430C6WDR Pin and Sleeve Connector - IP69K
Part Number: AH430C6WDR
Quick Summary
AH430C6WDR pin and sleeve connector is designed to reliably power three-phase equipment in harsh industrial environments. Manufacturers and maintenance teams often battle washdown, moisture ingress, and corrosion that drive downtime and maintenance costs. IP69K rated protection, IP67 readiness, and a rugged nylon body with nickel-plated brass contacts deliver durable performance in high-pressure cleaning and harsh outdoor settings. The design supports safe, easy installation in tight spaces while meeting essential reliability standards. Typical applications include food and beverage lines, packaging machinery, and general industrial automation where robust, secure power connections are essential.
Product Information
Extended Description
AH430C6WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 30/32A, 30/32A 3Ø 380-415V, three-pole, 0.433-0.985in (1.10-2.5cm) cable diameter, #10 -#2 AWG, nickel plated brass, 4 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH430C6WDR
UPC
032664006913
Product Length/Depth
8.55 in
Product Height
3.97 in
Product Width
3.97 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
30/32A
Voltage rating
30/32A 3Ø 380-415V
Contact material
Nickel plated brass
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cable diameter
0.433-0.985in (1.10-2.5cm)
Environmental resistance
IP69K IP67
Allowable wire size
#10 -#2 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
30A Dual Rated pin and sleeve devices spec sheet
IP69K protection and a nylon body deliver washdown-ready durability, reducing downtime and corrosion-related failures in food and beverage lines, packaging machines, and other automated equipment. With 30/32A, 3Ø 380-415V rating and four conductors including grounding, the connector supports motor and drive applications with minimal voltage drop, improving efficiency and safety on conveyors, pumps, and mixers. The 0.433-0.985 inch cable diameter window and allowable wire size #10–#2 AWG provide flexible field terminations, speeding maintenance and reducing spare-part complexity. Nickel-plated brass contacts offer excellent conductivity with robust corrosion resistance, extending service life in humid, damp, or washdown environments. A nylon housing keeps weight down while resisting impact and chemical exposure, simplifying installation in confined spaces. Compatible with Eaton Arrow Hart pin-and-sleeve family devices, AH430C6WDR enables straightforward retrofits and reliable performance across automation apps.
Get a Quick Quote for a Eaton AH430C6WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH430C6WDR?
Enquire Now
FAQs
AH430C6WDR is a three-pole, 4-wire connector designed for #10–#2 AWG conductors with a cable diameter range of 0.433–0.985 inches. Its nylon housing and nickel-plated brass contacts are compatible with Eaton Arrow Hart pin-and-sleeve systems, enabling straightforward field terminations and retrofit compatibility without reworking control panels.
Key specs include IP69K environmental protection, IP67 readiness, 30/32A amperage rating, and 3Ø 380–415V voltage rating. It supports four wires with grounding and uses nickel-plated brass contacts for durable, low-resistance connections.
Yes. The IP69K rating, combined with a nylon housing and robust contact material, makes it well-suited for washdown-heavy facilities such as food & beverage, packaging, and pharmaceutical manufacturing, helping minimize corrosion and ingress-related failures.
Routine inspection should verify mating integrity and contact cleanliness. The nickel-plated brass contacts resist corrosion, but periodic cleaning and ensuring proper cable strain relief will extend life. Its IP69K rating supports repeated washdowns without compromising electrical performance.
By delivering reliable three-phase power with strong ingress protection and a durable nylon body, it reduces downtime, extends service intervals, and lowers maintenance costs, especially in washdown environments and retrofit projects where uptime is critical.
