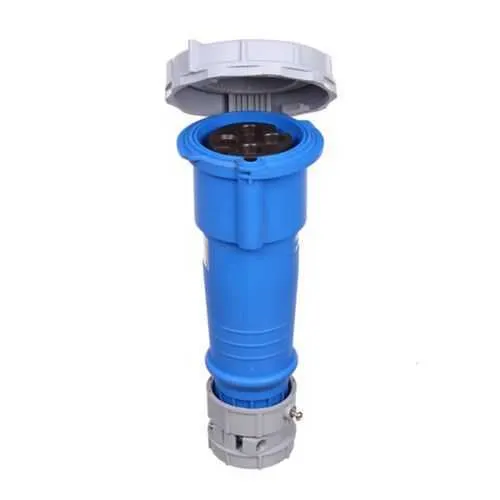

Eaton AH430C9WDR Pin and Sleeve Connector - IP69K Rated
Part Number: AH430C9WDR
Quick Summary
The Eaton AH430C9WDR pin and sleeve connector is a rugged, high-current interconnect designed for industrial machinery and outdoor equipment. It helps prevent intermittent connections and water ingress in harsh environments, reducing downtime and maintenance costs. Key protections include IP69K and IP67 environmental ratings, plus a nickel-plated brass contact set and a robust nylon body for long-term reliability. This solution also aligns with standard #10–#2 AWG wiring and a 0.433–0.985 inch cable diameter range, delivering a solid balance of performance and ease of installation. For design engineers and procurement teams, the AH430C9WDR translates to lower total cost of ownership and faster field cabling without compromising safety or compliance.
Product Information
Extended Description
AH430C9WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 30/32A, 30A 250V/32A 200-250V, three-pole, 0.433-0.985in (1.10-2.5cm) cable diameter, #10 -#2 AWG, nickel plated brass, 4 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH430C9WDR
UPC
032664006920
Product Length/Depth
8.55 in
Product Height
3.97 in
Product Width
3.97 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
30/32A
Voltage rating
30A 250V/32A 200-250V
Contact material
Nickel plated brass
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cable diameter
0.433-0.985in (1.10-2.5cm)
Environmental resistance
IP69K IP67
Allowable wire size
#10 -#2 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
30A Dual Rated pin and sleeve devices spec sheet
Feature → Business Impact → Application: IP69K rated sealing delivers washdown-ready reliability, reducing corrosion risk and downtime in food processing and packaging lines while maintaining performance in high-pressure cleaning cycles. This translates to longer mean time between failures (MTBF) and lower maintenance costs on automated conveyors and outdoor equipment. Feature → Business Impact → Application: 30/32A amperage at up to 250V (30A 250V / 32A 200-250V) supports heavy motor and control loads, enabling single-point hookups that shorten installation time and minimize cabling complexity in machine tool or packaging automation. Feature → Business Impact → Application: Three-pole, four-wire configuration with grounding ensures proper safety, fault management, and code compliance on industrial machinery and robotics systems, reducing the risk of ground faults during high-current start-ups. Feature → Business Impact → Application: Cable diameter compatibility (0.433–0.985 in) and #10–#2 AWG flexibility enable seamless integration with common power harnesses, accelerating retrofits and new builds in windswept outdoor plants and washdown environments. Feature → Business Impact → Application: Nickel-plated brass contacts provide corrosion resistance and repeatable contact force, delivering durable performance in aggressive environments and minimizing contact resistance over the device lifecycle. Feature → Business Impact → Application: Nylon body lightens the overall weight while offering chemical resistance and outdoor suitability, simplifying field installation and reducing support costs in automotive assembly lines and outdoor equipment setups. Feature → Business Impact → Application: IP69K IP67 environmental resistance supports high-duty cycles and frequent washdowns, ensuring ongoing compliance with environmental standards across food, beverage, and process industries. Feature → Business Impact → Application: Clear compatibility with standard wiring practices reduces training needs for maintenance staff and speeds up onboarding for new automation projects.
Get a Quick Quote for a Eaton AH430C9WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH430C9WDR?
Enquire Now
FAQs
The AH430C9WDR is designed for #10–#2 AWG conductors and a cable diameter range of 0.433–0.985 inches. Use appropriate strain-relief and compatible mounting hardware for three-pole, four-wire configurations. Ensure grounding is secure and that the nylon body is clear of sharp edges to avoid abrasion during plug-in and unplug cycles. This approach minimizes resistance changes and improves service life in rugged environments.
Key specs include an amperage rating of 30/32A and voltage ratings of 30A at 250V or 32A at 200–250V, depending on configuration. The connector uses nickel-plated brass contacts for durability and provides a three-pole, four-wire arrangement with grounding. Confirm the mating connector or receptacle meets IP69K/IP67 protection requirements for your washdown or outdoor application.
Yes. The AH430C9WDR is IP69K rated and compatible with outdoor and washdown environments. Its nylon body and nickel-plated brass contacts offer robust chemical and corrosion resistance, while the three-pole design ensures reliable grounding and safe operation in conveyors, packaging lines, and outdoor automation equipment.
The product carries IP69K and IP67 environmental ratings, indicating high protection against water ingress and dust. These ratings support compliance in harsh environments such as washdown facilities and outdoor installations. Always verify site-specific regulatory requirements and ensure downstream components match these protection levels.
The IP69K/IP67 protection and durable nickel-plated brass contacts reduce corrosion and contact degradation, lowering maintenance frequency. Its reliable high-current performance minimizes downtime during motor starts and power transfers, delivering a lower total cost of ownership over the equipment’s life cycle in automation, packaging, and manufacturing facilities.
