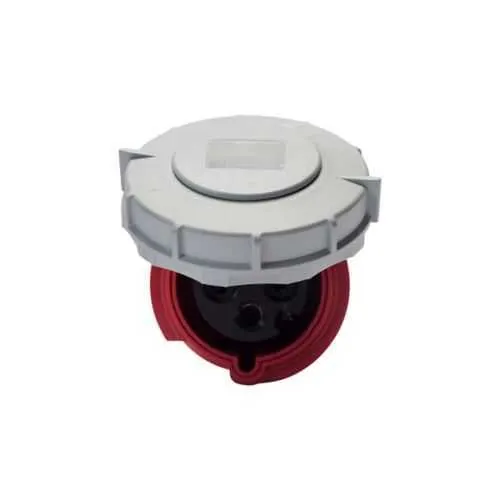

Eaton AH432C3W Pin and Sleeve Connector - IP69K Rated
Part Number: AH432C3W
Quick Summary
The Eaton AH432C3W pin and sleeve connector provides rugged, IP-rated power connections for industrial equipment and harsh environments. Too many washdown solutions fail under moisture and debris, driving maintenance costs and unplanned downtime. UL Listed cRUus certification plus IP69K and IP67 ratings ensure safety, compliance, and reliable operation in demanding facilities. Designed for three-pole, four-wire systems with grounding, it supports back-wire termination and a broad wire range, enabling faster installs with less rework. In practice, this translates to longer service life, easier replacements, and more predictable maintenance budgets for food and beverage, wastewater, and general industrial applications.
Product Information
Extended Description
AH432C3W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 32A, 380V, 50Hz; 44V, 60Hz, Back wire, Red, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH432C3W
UPC
032664732799
Product Length/Depth
10.13 in
Product Height
4.75 in
Product Width
5 in
Product Weight
1.24 lb
Certifications
UL Listed cRUus
Type
Connector
Amperage Rating
32A
Voltage rating
380-415 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
Grounding 4
Number Of Poles
Three-pole
Cord diameter
0.433-0.985in (1.10-2.5cm)
Environmental resistance
IP69K IP67
Color
Red
Gender
Female
Allowable wire size
#10-2 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH432C3W
Eaton Specification Sheet - AH432C3W
Feature: IP69K and IP67 environmental resistance provides superior washdown tolerance and contaminant protection. Business Impact: Reduced risk of moisture ingress leading to fewer unplanned outages and lower maintenance costs. Application: Ideal for food & beverage facilities, wastewater treatment, and harsh industrial environments. Feature: 32A, 380-415V rating with three-pole, four-wire configuration and grounding. Business Impact: Supports high-power loads with reliable grounding, enabling safer operation and scalable motor drives. Application: Heavy-duty automation and equipment feeds in manufacturing lines. Feature: Back-wire capable terminals with #10-2 AWG conductors and a cord diameter range of 0.433-0.985 in. Business Impact: Faster, cleaner terminations and easier field adaptation for varied harnesses. Application: Installation teams benefit from reduced assembly time and fewer termination errors. Feature: Nickel-plated brass contacts and nylon body. Business Impact: Corrosion resistance and robust mechanical integrity extend service life in aggressive environments. Application: Long-term reliability in corrosive washdowns and chemical exposure scenarios. Feature: UL Listed cRUus and IP-rated design with red nylon housing. Business Impact: Regulatory compliance and clear visibility aid safe operations and maintenance planning. Application: Compliance-driven projects in food processing, water treatment, and heavy industries.
Get a Quick Quote for a Eaton AH432C3W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH432C3W?
Enquire Now
FAQs
AH432C3W supports back-wire termination for three-pole, four-wire systems and accepts #10-2 AWG conductors within a 0.433-0.985 in cord diameter. Start by verifying back-wire terminals, trim conductors to length, and insert per polarity. Tighten to 10 lbf-in, confirm the ground connection, and mate with the corresponding receptacle. This approach reduces field termination errors and ensures reliable seals in washdown environments.
AH432C3W achieves washdown readiness via IP69K and IP67 environmental ratings, a nylon body, and nickel-plated brass contacts. The combination provides moisture and debris resistance, minimizing ingress during high-pressure cleaning. UL Listed cRUus certification further supports regulatory compliance, making it a dependable choice for food and beverage facilities and wastewater plants.
The connector is rated for 32A at 380-415V and supports three-pole, four-wire configurations with grounding. It uses back-wire termination for conductors in the #10-2 AWG range and accommodates a cord diameter of 0.433-0.985 inches. This makes it compatible with standard industrial power distribution harnesses and a wide range of equipment inputs.
The AH432C3W carries UL Listed cRUus certification and IP69K/IP67 environmental ratings, which validate electrical safety and rugged protection in washdown environments. These certifications aid regulatory compliance, reduce risk for end-users, and support quality assurance during audits and supplier assessments in regulated industries.
By delivering high reliability in harsh environments, the AH432C3W minimizes downtime and maintenance frequency. Its durable nylon housing and corrosion-resistant contacts lower replacement costs, while the straightforward back-wire/removal process reduces maintenance labor. Over the life of critical manufacturing lines, this translates to improved uptime, predictable maintenance budgets, and a favorable return on investment.
