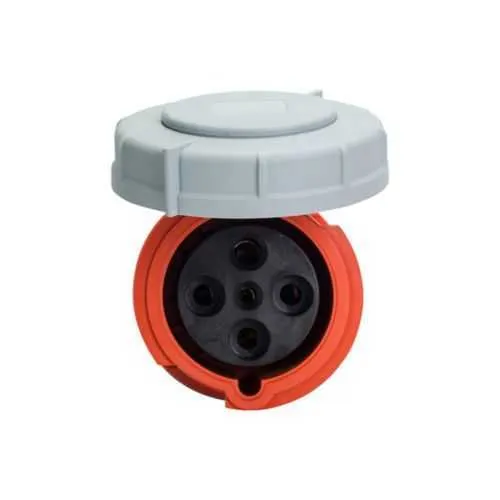

Eaton AH460C12W Pin-and-Sleeve Connector - IP69K
Part Number: AH460C12W
Quick Summary
The Eaton AH460C12W pin-and-sleeve power connector delivers rugged, reliable interconnection for industrial machinery and washdown environments. Many plants struggle with downtime from corroded contacts and ingress during aggressive washdowns, resulting in costly repairs and extended outages. Its IP67 and IP69K ratings provide washdown resilience in demanding facilities, while cRUus certification supports North American safety compliance. The design supports back-wire termination and a nylon body for lightweight durability, enabling faster installations and easier service. By combining robust electrical performance with installation simplicity, this connector helps reduce maintenance costs and improve uptime in harsh processing or wastewater applications.
Product Information
Extended Description
AH460C12W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 125/250V, Back wire, Orange, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.66-1.5in (1.68-3.81cm), Female, Nylon
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH460C12W
UPC
040893619781
Product Length/Depth
11.5 in
Product Height
5.125 in
Product Width
5.125 in
Product Weight
2.092 lb
Certifications
cRUus
Type
Connector
Amperage Rating
60A
Voltage rating
125/250 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cord diameter
0.66-1.5in (1.68-3.81cm)
Environmental resistance
IP67 IP69K
Color
Orange
Gender
Female
Allowable wire size
#8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot)
Torque rating
28 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH460C12W
Eaton Specification Sheet - AH460C12W
Feature: 60A at 125/250V rating with a 3-pole, 4-wire configuration. Business Impact: Supports high-load industrial applications with a compact footprint, reducing panel space and component count while improving reliability in machinery wiring. Application: Ideal for manufacturing lines, pumps, and drives where dependable power delivery is essential. Feature: IP67 and IP69K environmental resistance. Business Impact: Protects against water ingress, dust, and high-pressure washdowns, lowering maintenance cycles and extending equipment life in harsh environments. Application: Food & beverage processing, wastewater treatment, and other washdown-intensive facilities. Feature: Nickel-plated brass contacts inside a nylon housing. Business Impact: Delivers corrosion resistance with lightweight handling, promoting longer service intervals and simpler field servicing. Application: Harsh industrial environments requiring durable contact performance. Feature: Back-wire termination with orange nylon body. Business Impact: Speeds up installation, reduces wiring errors, and enhances visibility for safe energizing in complex panels. Application: New builds and retrofit installations in control cabinets and remote power drops. Feature: Compatibility with three-pole, four-wire systems and grounding. Business Impact: Ensures reliable grounding and secure torque (28 lbf-in), supporting code compliance and predictable performance. Application: Industrial automation, process controls, and plant utilities.
Get a Quick Quote for a Eaton AH460C12W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH460C12W?
Enquire Now
FAQs
AH460C12W is a three-pole, four-wire pin-and-sleeve connector designed for back-wire termination in industrial panels. It accepts wire sizes #8-2 AWG, #10-2 AWG (ground), and #12-16 AWG (pilot), facilitating straightforward retrofit or new-install wiring while maintaining a secure, code-compliant connection.
The AH460C12W provides a 60A amperage rating with a 125/250 V voltage rating, four conductors including a grounding path, and a torque rating of 28 lbf-in to ensure consistent, reliable mating and electrical contact integrity across heavy-duty applications.
Yes. It features IP67 and IP69K environmental resistance, along with a nylon housing and nickel-plated brass contacts, delivering excellent protection against water ingress, dust, and high-pressure washdowns common in food & beverage and wastewater facilities.
Industries such as manufacturing, food and beverage processing, and wastewater treatment benefit from the AH460C12W due to its rugged IP-rated protection, back-wire ease, and reliable 60A power delivery in demanding environments.
The AH460C12W carries cRUus certification for North American safety compliance and IP ratings that validate its suitability for harsh environments, helping ensure regulatory alignment and safer equipment integration.
