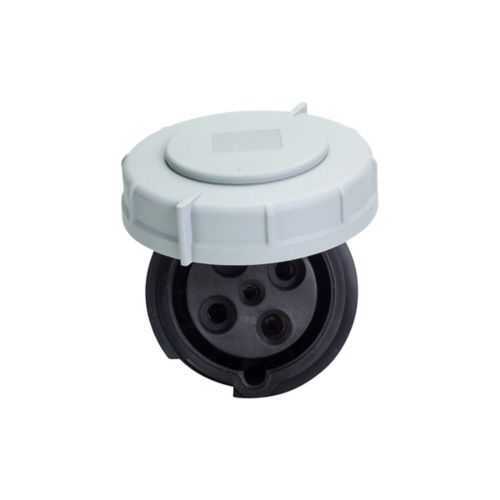

Eaton AH460C5W Pin and Sleeve Connector - IP69K 60A 600V
Part Number: AH460C5W
Quick Summary
The Eaton AH460C5W pin and sleeve connector provides rugged three-phase power in demanding industrial environments. Users often struggle with seal integrity and grounding under washdown conditions, especially in harsh facilities. With IP69K/IP67 ratings and nickel-plated brass contacts, this connector ensures reliable operation in aggressive environments such as food processing and wastewater treatment. Its nylon housing and back-wire capability streamline installation, helping projects meet tight timelines while reducing maintenance costs. For engineers seeking robust, compliant power interfaces, the AH460C5W combines performance with long-term value across multiple industries.
Product Information
Extended Description
AH460C5W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 3Ø 600V, Back wire, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.66-1.5in (1.68-3.81cm), Female, 20 HP, 3PH
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH460C5W
UPC
040893619798
Product Length/Depth
11.5 in
Product Height
5.125 in
Product Width
5.125 in
Product Weight
2.092 lb
Certifications
cRUus
Type
Connector
Amperage Rating
60A
Voltage rating
600 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
Grounding 4
Number Of Poles
Three-pole
Cord diameter
0.66-1.5in (1.68-3.81cm)
Phase
Three-phase
Environmental resistance
IP69K IP67
Color
Black
Gender
Female
Horsepower
20 hp
Allowable wire size
#8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot)
Torque rating
28 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH460C5W
Eaton Specification Sheet - AH460C5W
Feature → Business Impact → Application: The AH460C5W offers IP69K and IP67 environmental resistance, ensuring uptime in washdown zones and outdoor installations, reducing unplanned downtime in food processing and wastewater plants. Benefit: improved reliability and reduced maintenance成本. Application: high-duty food & beverage line equipment and municipal water treatment systems benefit from extended service life. Feature → Business Impact → Application: Back-wire capability simplifies field installation, lowering labor time and mounting errors. Benefit: faster commissioning and easier retrofits in existing control panels. Application: retrofit projects in aging facilities or new builds with compact footprint constraints. Feature → Business Impact → Application: Nickel-plated brass contacts provide corrosion resistance and lower contact resistance over time, improving electrical performance. Benefit: safer connections, stable torque characteristics, and reduced replacement frequency in demanding environments. Application: industrial motors and three-phase power distribution in harsh environments. Feature → Business Impact → Application: 60A at 600V rating supports sizable loads, enabling smaller multi-cocket assemblies and fewer devices per line. Benefit: cost efficiency, simplified wiring schematics, and enhanced scalability. Application: large motors up to 20 HP in food processing, wastewater, and manufacturing lines. Feature → Business Impact → Application: Nylon body delivers lightweight yet durable housing with good chemical resistance. Benefit: easier handling during installation and reduced risk of impact damage in busy plant floors. Application: general purpose pin and sleeve devices inside production facilities.
Get a Quick Quote for a Eaton AH460C5W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH460C5W?
Enquire Now
FAQs
The AH460C5W is a three-phase, four-wire (Ground) pin and sleeve connector with back-wire terminals suitable for #8-2 AWG, #10-2 AWG (ground), and #12-16 AWG (pilot) leads. It uses a 60A, 600V rating and a nickel-plated brass contact set, enabling reliable field wiring and straightforward retrofits into existing IEC 60309-based systems.
This connector carries IP69K and IP67 environmental ratings, meaning it is highly resistant to washdown, dust intrusion, and temporary immersion. It is well-suited for harsh environments found in food and beverage processing, wastewater treatment, and other industrial settings demanding high ingress protection.
The AH460C5W supports up to 60A and 600V with allowable wire sizes of #8-2 AWG, #10-2 AWG (ground), and #12-16 AWG (pilot). The torque rating is 28 lbf-in, which, when followed, ensures reliable electrical contact without damaging the nylon housing or contacts during installation.
Yes. The device is specified for three-phase power and supports up to 20 HP loads, making it suitable for motors and equipment in manufacturing lines, processing plants, and other industrial applications where robust three-phase connections are required.
The AH460C5W carries cRUus certification and IP ratings that support compliance with regional electrical standards and washdown requirements. This helps facilities meet regulatory expectations while delivering reliable operation in challenging environments.
