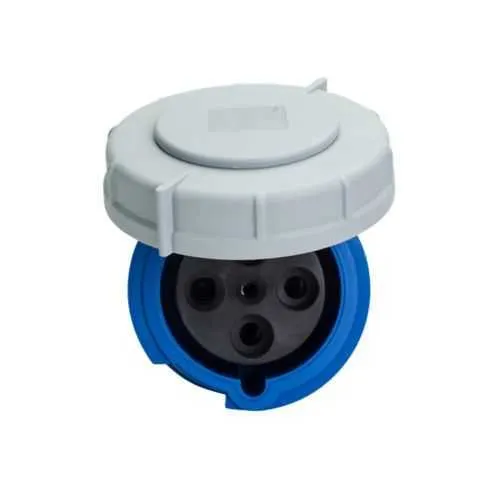

Eaton AH460C9WDR Pin & Sleeve Connector - IP69K Rated
Part Number: AH460C9WDR
Quick Summary
The Eaton AH460C9WDR Pin & Sleeve Connector is a rugged power connection designed for harsh industrial environments. Maintenance teams often contend with washdowns, moisture ingress, and corrosion that shorten service life and raise costs. Its IP69K seal (plus IP67 compatibility) delivers washdown resilience, while nickel-plated brass contacts ensure reliable current transfer in challenging conditions. For engineers and procurement professionals, this connector offers straightforward installation, high current capability, and a predictable total cost of ownership in automation lines, packaging equipment, and outdoor machinery. The combination of robust materials, rated amperage, and a compact 4-wire, three-pole design supports scalable manufacturing and compliant electrical installation.
Product Information
Extended Description
AH460C9WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 60/63A, 60A 250V/63A 200-250V, three-pole, 0.66-1.5in (1.68-3.81cm) cable diameter, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), nickel plated brass, 4 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH460C9WDR
UPC
032664007002
Product Length/Depth
10 in
Product Height
4.29 in
Product Width
4.29 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
60/63A
Voltage rating
60A 250V/63A 200-250V
Contact material
Nickel plated brass
Number of wires
4 Grounding
Number Of Poles
Three-pole
Cable diameter
0.66-1.5in (1.68-3.81cm)
Environmental resistance
IP69K IP67
Allowable wire size
#8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot)
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
60A Dual Rated pin and sleeve devices spec sheet
Feature: IP69K rated seal and Nylon body provide superior protection against high-pressure, high-temperature washdowns. Business Impact: Reduces maintenance cycles, minimizes leakage risk, and extends equipment life in sanitary or rugged outdoor settings. Application: Food and beverage processing lines, outdoor pumps, and heavy-duty conveyors. Feature: 60/63A current rating with 60A at 250V or 63A at 200–250V support. Business Impact: Enables reliable power delivery to motors and actuators with lower protection strategies and reduced panel size. Application: Industrial automation, robotics, and material handling. Feature: Three-pole configuration with four conductors including grounding. Business Impact: Simplifies control and safety grounding, lowering wiring errors and improving fault isolation. Application: Complex control circuits and safety-critical machinery. Feature: Cable diameter range 0.66–1.5 inches (1.68–3.81 cm). Business Impact: Broad harness compatibility reduces spare parts and eliminates need for adapters. Application: Variable-diameter cables in OEM equipment installations. Feature: Nickel-plated brass contact materials. Business Impact: Improves corrosion resistance and longevity in challenging environments, lowering replacement costs. Application: Harsh washdown zones and outdoor installations. Feature: Nylon face/body construction and rugged connector design. Business Impact: Lightweight yet durable housing simplifies installation and reduces fatigue during maintenance. Application: Portable and fixed wiring assemblies across industrial plants.
Get a Quick Quote for a Eaton AH460C9WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH460C9WDR?
Enquire Now
FAQs
The AH460C9WDR is a three-pole pin & sleeve connector configured for four conductors, including a grounding wire. It supports cable diameters from 0.66 to 1.5 inches and accepts wire sizes from #8 to #2 AWG (with grounding), and #12 to #16 AWG for pilot functions. This makes it compatible with a wide range of industrial harnesses and simplifies integration into existing control circuits.
This connector is rated for 60/63A, with voltage ratings of 60A at 250V or 63A at 200–250V. These specifications enable reliable power delivery to motors, drives, and actuators while maintaining a compact footprint suitable for panel and cabinet designs in automation lines.
Yes. The AH460C9WDR features IP69K sealing, providing excellent protection against high-pressure washdowns and water ingress. The rugged nylon housing and nickel-plated brass contacts further enhance durability in harsh environments, making it a dependable choice for washdown zones, outdoor equipment, and rugged manufacturing floors.
The primary environmental protection is IP69K sealing, with IP67 compatibility noted in the specifications. This combination ensures dust-tight integrity and resilience against powerful washdowns. The nickel-plated brass contacts offer corrosion resistance, contributing to long service life in challenging industrial settings.
The combination of IP69K protection, robust contact materials, and a 60/63A rating reduces downtime and maintenance frequency by preventing water ingress and corrosion. Its straightforward 4-wire, three-pole design minimizes wiring errors during installation and replacement, delivering lower total cost of ownership and faster return on investment in automation projects.
