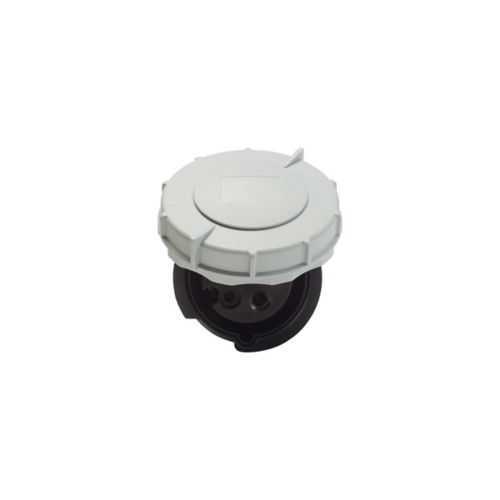

Eaton AH520C5W Pin & Sleeve Connector - IP69K Rated
Part Number: AH520C5W
Quick Summary
Eaton AH520C5W pin and sleeve connector is designed for rugged, reliable three-phase power in harsh industrial settings. When washdowns, vibration, or tight cable runs threaten uptime, a sealed, maintenance-friendly interface reduces corrosion and field failures. This device carries cRUus certification and IP69K/IP67 protection, ensuring safe operation in demanding environments. Its nylon housing and nickel-plated brass contacts resist chemicals and wear, while back-wire terminals speed installations. Designed for compatibility with #12-10 AWG conductors and 0.433–0.84 inch cords, it supports scalable motor connections across food and beverage, wastewater, and general industrial applications, delivering consistent performance and lower total cost of ownership through robust sealing and dependable connectivity.
Product Information
Extended Description
AH520C5W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, 3ØY 347/600V, Back wire, Black, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, grounding, 0.433-0.84in (1.10-2.5cm), Female, 7 1/2 HP, Nylon, Three-phase
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH520C5W
UPC
032664732652
Product Length/Depth
8.5 in
Product Height
4.375 in
Product Width
4.375 in
Product Weight
0.826 lb
Certifications
cRUus
Type
Connector
Amperage Rating
20A
Voltage rating
347/600 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
5 Grounding
Number Of Poles
Four-pole
Cord diameter
0.433-0.84in (1.10-2.5cm)
Phase
Three-phase
Environmental resistance
IP69K IP67
Color
Black
Gender
Female
Horsepower
7.50 hp
Allowable wire size
#12-10 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH520C5W
Eaton Specification Sheet - AH520C5W
IP69K/IP67 rated pin and sleeve interface delivers field-proven protection against washdown and dust intrusion, reducing unplanned downtime and maintenance costs in food and beverage lines and wastewater treatment facilities. The 20A, 347/600V rating enables direct connection to standard motor circuits, cutting adapters and splices while improving energy efficiency and reliability in three-phase systems. Nylon body with nickel-plated brass contacts provides excellent chemical resistance and long life in harsh environments, with back-wire terminals that simplify field wiring and reduce labor time. Cord diameter compatibility from 0.433 to 0.84 inches and wire size #12–10 AWG supports common installation practices, lowering stocking complexity and enabling quicker same-day upgrades. Four-pole with grounding, plus a 7.5 HP equivalent capability, offers strong mechanical stability for vibration-heavy applications like conveyors and mixers, improving uptime and operator safety.
Get a Quick Quote for a Eaton AH520C5W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH520C5W?
Enquire Now
FAQs
The AH520C5W uses back-wire terminations designed for #12–10 AWG conductors and a cord diameter of 0.433–0.84 inches. Start by aligning the four-pole, grounding-ready plug with the mating receptacle, then insert the conductors into the back-wire terminals, tighten to the specified torque, and secure the assembly to the panel. Ensure the enclosure maintains IP69K/IP67 integrity by using compatible seals and gaskets. This approach minimizes wiring errors and reduces installation time while maintaining a robust, vibration-resistant connection.
Verify the amperage rating of 20A and the voltage rating of 347/600V to match your motor or controller. Confirm compatibility with #12–10 AWG conductors and the cord diameter range of 0.433–0.84 inches. The four-pole configuration with grounding supports three-phase motors up to about 7.5 HP, with a 10 lbf-inch torque rating on the terminal interface to ensure secure mating in high-vibration environments.
Yes. The connector features IP69K and IP67 environmental protection and a nylon housing with nickel-plated brass contacts, which resist washdown chemicals and corrosion. These characteristics make it well-suited for challenging environmental conditions found in food & beverage processing lines and wastewater treatment facilities, delivering reliable power connections with reduced maintenance demands.
AH520C5W carries cRUus certification, indicating compliance with North American safety standards. Its IP69K/IP67 ratings provide ingress protection for washdown and dusty environments, and the design supports industrial-grade, three-phase power connections with grounding. When selecting for regulated facilities, these certifications help satisfy essential safety and reliability requirements.
The IP69K/IP67 sealing reduces ingress-related failures, lowering maintenance frequency in harsh environments. The back-wire design and nylon body enable faster field wiring and longer service life, which translates to reduced labor costs per installation and fewer unscheduled outages. Over time, this translates into lower total cost of ownership for motor feeders in demanding industries such as food & beverage and wastewater treatment.
