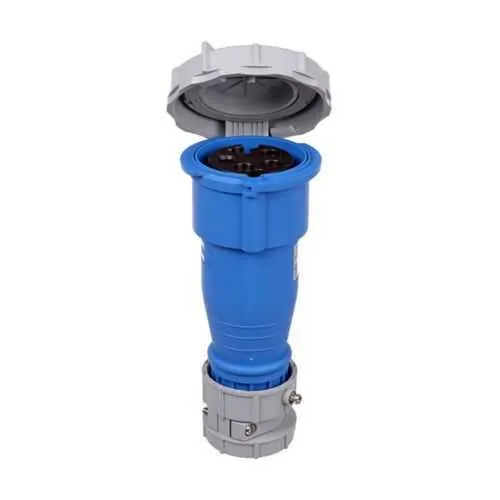

Eaton Arrow Hart AH520C9WDR pin and sleeve connector - IP69K
Part Number: AH520C9WDR
Quick Summary
Eaton Arrow Hart AH520C9WDR pin and sleeve connector powers rugged equipment in harsh industrial washdown areas. Maintenance teams struggle with ingress, corrosion, and mis-wiring when connectors are not IP-rated. The AH520C9WDR offers IP69K protection, IP67 compatibility, and a four-pole 120/208V design to meet harsh washdown and automation demands. In practice, this translates to faster field terminations, reduced downtime, and easier procurement for industrial control panels, with nylon housing and nickel-plated contacts ensuring durability. This combination delivers reliable power connections in food and beverage, manufacturing, and other high-demand sectors while supporting scalable automation architectures.
Product Information
Extended Description
AH520C9WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 16/20A, 16/20A 3ØY 120/208V, four-pole, 0.433-0.84in (1.10-2.5cm) cable diameter, #12 - #10 AWG, nickel plated brass, 5 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH520C9WDR
UPC
032664007156
Product Length/Depth
7.19 in
Product Height
3.64 in
Product Width
3.64 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
16/20A
Voltage rating
16/20A 3ØY 120/208V
Contact material
Nickel plated brass
Number of wires
5 Grounding
Number Of Poles
Four-pole
Cable diameter
0.433-0.84in (1.10-2.5cm)
Environmental resistance
IP69K IP67
Allowable wire size
#12 - #10 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
20A Dual Rated pin and sleeve devices spec sheet
Feature: IP69K rated protection and IP67 compatibility. Business Impact: Delivers washdown-ready durability, minimizing ingress risk and corrosion, which reduces maintenance costs and extends service life. Application: Ideal for food processing, pharma, and other demanding environments where frequent cleaning is required and downtime is costly. Feature: Four-pole design with 16/20A capacity and 120/208V 3ØY rating. Business Impact: Supports robust three-phase motor and control circuits with clear, verified power sequencing, improving installation reliability and safety. Application: Panel-to-machine connections in automated lines, servo drives, and packaging systems. Feature: Cable compatibility 0.433–0.84 in (1.10–2.5 cm) and #12–#10 AWG conductors. Business Impact: Enables flexible harnessing and common wire sizes, reducing inventory complexity and custom tooling needs. Application: Industrial harness assemblies and retrofit projects. Feature: Nickel-plated brass contacts and nylon body. Business Impact: Delivers corrosion resistance and durable, low-friction mating cycles, lowering replacement frequency and warranty exposure. Application: Harsh environments, washdown zones, and long-life service contracts. Feature: Pin and sleeve connector design with grounding support and four-pole configuration. Business Impact: Ensures reliable earth continuity and fault isolation, simplifying electrical protection strategies. Application: General-purpose power distribution in control panels and equipment enclosures, with broad compatibility across Eaton Arrow Hart accessories.
