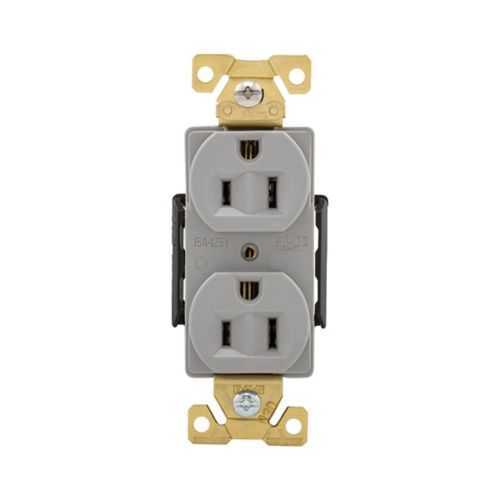

Eaton AH5262CRGY Receptacle - UL/NOM W-C-596F rated
Part Number: AH5262CRGY
Quick Summary
Eaton AH5262CRGY corrosion resistant duplex receptacle provides rugged 15A, 125V power for industrial equipment. In corrosive environments, standard outlets can fail prematurely, driving maintenance costs and unplanned downtime. This unit carries RoHS compliance and UL/NOM Federal Specification Classification W-C-596F, underscoring safety and reliability in harsh conditions. Its back-and-side wiring and flush mounting simplify panel integration while preserving space and reducing installation time. With nickel-plated brass contacts and a glass-filled nylon base, it delivers durable performance that supports long-term operations in demanding facilities, making it a prudent choice for industrial controls, equipment cabinets, and wash-down applications.
Product Information
Extended Description
AH5262CRGY Eaton: Eaton Arrow Hart corrosion resistant straight blade duplex receptacle,#14-10 AWG,15A,Industrial,Flush,125V,Back and side,Gray,Nickel-plated brass,Corrosion resistant,Nylon face,Glass-filled nylon base,5-15R,Duplex,Screw,Nylon,Core pack
Product Name
Eaton Arrow Hart corrosion resistant straight blade duplex receptacle
Catalog Number
AH5262CRGY
UPC
032664720413
Product Length/Depth
1.32 in
Product Height
4.19 in
Product Width
0.88 in
Product Weight
0.23 lb
Compliances
RoHS Compliant
Certifications
UL NOM Federal Specification Classification W-C-596F
Device type
Receptacle
Special features
Terminal guardsAuto-grounding
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Nickel plated brass
Features
Terminal guards Auto-grounding
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back and side
Environmental conditions
Corrosive
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
Nylon
Packaging type
Core pack
Environmental resistance
Corrosion resistant
Color
Gray
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon face Glass-filled nylon base
Receptacle type
Duplex
Complex environment devices brochure
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5262CRGY
Feature: Corrosion resistant construction using nylon face and glass-filled nylon base with nickel-plated brass contacts. Business Impact: Extends service life in aggressive environments, lowers replacement frequency, and reduces maintenance costs. Application: Industrial equipment housings and control panels where exposure to moisture and chemicals is common. Feature: Duplex straight blade design with 5-15R NEMA configuration, rated at 15A and 125V. Business Impact: Standardized plug compatibility minimizes downtime and simplifies inventory management, improving line reliability. Application: Power sources for motors, sensors, and general-purpose equipment in manufacturing cells. Feature: Back and side wiring method with screw connections. Business Impact: Flexible installation options save time during wiring runs and allow easier retrofits in crowded enclosures. Application: Panel interiors where space is tight and diverse conductor sizes are in use. Feature: Flush mounting and color/finish in gray nylon. Business Impact: Space-saving, clean panel appearance, easier sealing against dust and moisture, and consistent aesthetics in control panels. Application: Enclosures in automation halls and process lines. Feature: Auto-grounding and terminal guards for safety. Business Impact: Reduces shock risk and wiring mistakes, supporting safer commissioning and ongoing operation. Application: Industrial environments with frequent handling and maintenance tasks. Feature: RoHS compliance and UL NOM W-C-596F certification. Business Impact: Regulatory peace of mind and conformity with industry standards, facilitating audits and supplier qualification. Application: Compliance-driven projects in manufacturing and processing facilities. This receptacle’s material combination and design choices deliver predictable performance, enable faster installation, and support proactive maintenance strategies in industrial settings, while remaining compatible with common tools and existing Eaton Arrow Hart components for seamless system upgrades.
Get a Quick Quote for a Eaton AH5262CRGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5262CRGY?
Enquire Now
FAQs
To install AH5262CRGY, first de-energize the circuit and prepare #14-10 AWG conductors. Use the back and side wiring terminals, tighten to the specified torque of 14 lbf-in, and ensure the terminal guards are in place. Verify an excellent ground connection via auto-grounding and mount flush to the panel. This minimizes heat buildup and ensures reliable operation in industrial environments.
Yes. The unit uses a nylon face with a glass-filled nylon base and nickel-plated brass contacts, providing resistance to chemical attack and moisture. This combination delivers long service life in harsh industrial settings, reducing maintenance frequency and downtime while maintaining electrical reliability in corrosive atmospheres.
AH5262CRGY carries RoHS compliance and UL NOM Federal Specification Classification W-C-596F. These certifications indicate adherence to environmental and safety standards, support regulatory audits, and simplify approvals for industrial installations, especially in regulated facilities or equipment projects requiring verified electrical components.
The 5-15R configuration defines a standard, 15A, 125V duplex receptacle. This ensures compatibility with most general-purpose plugs used in industrial settings, enabling quick replacement and broad device interoperability while maintaining safe and reliable power delivery in panels and enclosures.
Auto-grounding reduces shock risk during servicing, while terminal guards mitigate conductor damage and improper tightening. The corrosion-resistant materials extend service life, decreasing maintenance cycles, and the flush mount enhances sealing and cleanliness in control panels, contributing to lower total cost of ownership over the equipment’s life cycle.
