Eaton AH5266 Plug - cULus Listed RoHS
Part Number: AH5266
Quick Summary
Eaton AH5266 Plug is a rugged straight blade plug designed for industrial power wiring in control panels and heavy machinery. This compact connector simplifies panel wiring by supporting back-wire termination for fast, reliable connections. A key challenge in harsh environments is maintaining solid terminations under vibration and temperature fluctuations; AH5266 addresses this with a nylon body, brass contacts, and a robust 15A, 125V rating. The device carries RoHS compliance and cULus listing, with NOM and Federal Specification W-C-596F alignment, helping meet safety and procurement standards across North American facilities. For volume projects, its core-pack packaging and compatibility with NEMA 5-15P receptacles translate into reduced labor and inventory costs while preserving performance.
Product Information
Extended Description
AH5266 Eaton: Eaton Arrow Hart ultra grip straight blade plug, #18 - #12 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-15P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

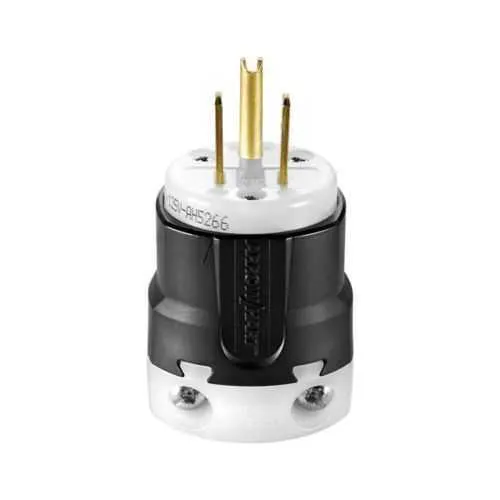

Eaton Arrow Hart ultra grip straight blade plug
Catalog Number
AH5266
UPC
032664737503
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
2.59 in
Product Weight
0.17 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification W-C-596F
Amperage Rating
15A
NEMA configuration
5-15P
Torque rating
14 lbf-inch
Voltage rating
125V
Wiring method
Back wire
Color
Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#18-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Plug
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Plug
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5266
Eaton Specification Sheet - AH5266
Feature: 15A, 125V electrical rating enables use with common industrial loads. Business Impact: Supports standard control panel power requirements while preserving headroom for startup surges. Application: Ideal for industrial automation equipment and machine wiring. Feature: Back-wire termination supports quick, reliable field terminations for #18-12 AWG conductors. Business Impact: Reduces installation time and loosened connections, lowering maintenance calls. Application: Panel wiring and equipment hookups in manufacturing lines. Feature: Nylon face/body with brass contacts delivers corrosion resistance and long service life. Business Impact: Minimizes replacement costs and downtime in dusty or humid environments. Application: Harsh factory floors and outdoor enclosures. Feature: NEMA 5-15P configuration with two-pole grounding ensures proper safety grounding. Business Impact: Improves safety compliance and reduces risk of miswiring. Application: Control panels and power distribution nodes. Feature: Extra heavy-duty industrial specification grade with 14 lbf-inch torque rating for screw terminations. Business Impact: Provides secure, vibration-resistant connections suitable for dynamic equipment. Application: Heavy machinery and roller conveyors. Feature: Core-pack packaging supports efficient inventory management and shipping. Business Impact: Streamlines procurement and reduces handling costs. Application: OEMs and distributors stocking field-ready插 now.
