Eaton AH5266BK Straight Blade Plug - RoHS Compliant
Part Number: AH5266BK
Quick Summary
The Eaton Arrow Hart ultra grip straight blade plug provides secure, robust power connections for industrial panels. In field installs, back-wire terminations can loosen under vibration or temperature swings, leading to intermittent power or downtime — this plug addresses that risk with a proven clamping design and reliability-first construction. This product carries RoHS compliance and cULus listing, with NOM classification supporting regulatory adherence in North American and global projects. By integrating a nylon body with brass contacts and precise torque specs, it delivers consistent performance in demanding environments. Designed for back-wire installations with 18-12 AWG conductors in a 0.33-0.66 inch cord range, it reduces wiring errors and speeds panel commissioning, benefiting maintenance and procurement teams.
Product Information
Extended Description
AH5266BK Eaton: Eaton Arrow Hart ultra grip straight blade plug, #18-12 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-15P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

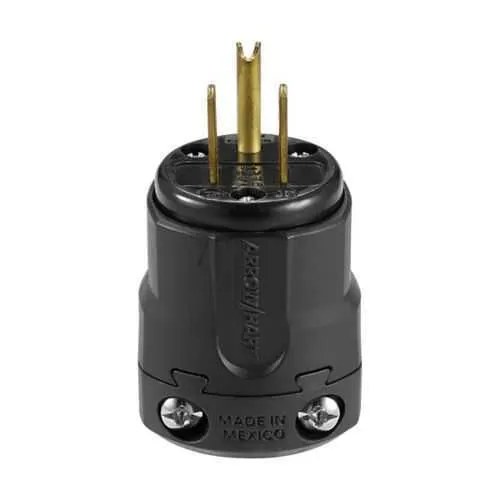

Eaton Arrow Hart ultra grip straight blade plug
Catalog Number
AH5266BK
UPC
032664737527
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
2.59 in
Product Weight
0.205 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification W-C-596F
Amperage Rating
15A
NEMA configuration
5-15P
Torque rating
14 lbf-inch
Voltage rating
125V
Wiring method
Back wire
Color
Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#18-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Plug
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Plug
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5266BK
Eaton Specification Sheet - AH5266BK
Feature: 15A at 125V electrical ratings. Benefit: Supports common industrial power circuits with reliable current delivery, reducing the risk of overheating and nuisance trips in control panels. Application: Ideal for equipment racks and automation cabinets where standard NEC-compliant power distribution is required. Feature: Back-wire wiring method. Benefit: Quick, secure terminations that minimize installation time and back-out failures, improving field reliability. Application: Suitable for panel enclosures and automation equipment that require fast, vibration-resistant connections. Feature: Nylon face/body with brass contacts. Benefit: Durable, wear-resistant construction that withstands industrial environments while maintaining low contact resistance. Application: Harsh environments where long service life and corrosion resistance matter. Feature: NEMA configuration 5-15P; two-pole, three-wire grounding. Benefit: Clear, standardized plug/receptacle pairing simplifies wiring diagrams and reduces mis-wiring risk. Application: Control panels, power distribution hubs, and machine interfaces. Feature: Cord-range compatibility #18-12 AWG and 0.33-0.66 inch diameter. Benefit: Broad conductor compatibility accelerates sourcing and reduces stock variety. Application: New installations and refurbishments across industrial wiring & connectivity portfolios. Feature: RoHS compliant and cULus listed with NOM classification. Benefit: Regulatory conformity supports global deployments and reduces compliance risk. Application: Critical for North American and international projects in industrial environments.
Get a Quick Quote for a Eaton AH5266BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5266BK?
Enquire Now
FAQs
AH5266BK supports back-wire terminations designed for #18-12 AWG conductors. To terminate, strip the conductors per the insulation guidelines, insert into the back-wire terminals until firmly seated, and tighten to the specified torque. This method provides a reliable, vibration-resistant connection suited for industrial panels and equipment enclosures.
Yes. AH5266BK is rated for 15A at 125V and uses the NEMA 5-15P configuration. This makes it compatible with common North American power systems and standard control panel wiring, enabling straightforward integration with existing 15A/125V circuits and equipment.
AH5266BK is RoHS compliant and cULus listed, with NOM classification indicating conformance to specific safety standards for electrical components. These certifications support regulatory compliance in North American markets and bolster reliability for industrial deployments in stringent environments.
Absolutely. The nylon body and brass contacts are designed for durability, with a back-wire termination and a robust torque specification that resist loosening under vibration. This makes AH5266BK well-suited for equipment racks, automation cabinets, and other applications prone to operational shocks and temperature variations.
The back-wire design minimizes field labor during installation, reducing commissioning time. High durability and RoHS/cULus compliance lower long-term maintenance costs and regulatory risk, while standard 15A/125V ratings and easy sourcing of #18-12 AWG conductors improve uptime and total cost of ownership for control panels and wiring devices.
