Eaton AH5269BK Straight Blade Connector - cULus Listed
Part Number: AH5269BK
Quick Summary
The Eaton AH5269BK straight blade connector delivers reliable power connections for industrial wiring and control panels. In busy facilities, loose fittings and improper wire termination drive downtime and rework. It is RoHS compliant and cULus listed, with NOM classification W-C-596F, ensuring safe, regulator-friendly performance. Designed for the Wiring & Connectivity category, it supports back-wire termination with a durable nylon body. This combination delivers improved installation efficiency, reduced field faults, and a lower total cost of ownership for industrial facilities. Users benefit from clear wiring diagrams, robust contact material, and a design that resists vibration in demanding environments. Its two-pole, three-wire grounding configuration supports safe grounding practices in motor control and automation panels.
Product Information
Extended Description
AH5269BK Eaton: Eaton Arrow Hart ultra grip straight blade connector, #16-12 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-15R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

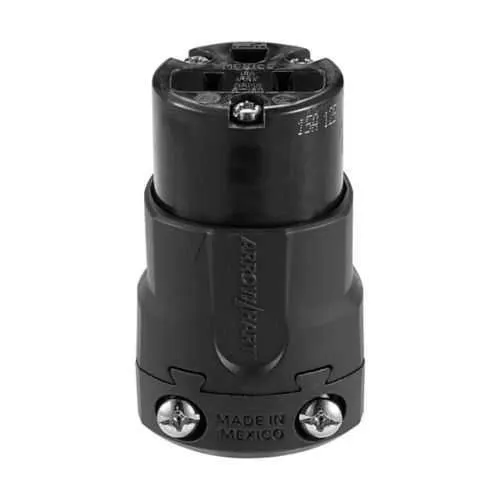

Eaton Arrow Hart ultra grip straight blade connector
Catalog Number
AH5269BK
UPC
032664737541
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
3.61 in
Product Weight
0.55 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification W-C-596F
Amperage Rating
15A
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Voltage rating
125V
Wiring method
Back wire
Color
Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#16-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Connector
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Connector
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5269BK
Eaton Specification Sheet - AH5269BK
The AH5269BK is built to handle 15A at 125V, aligning with standard industrial power distribution needs and reducing nuisance trips in control panels. The back-wire termination with screw connections enables faster, secure terminations for #16-12 AWG conductors, speeding field installations while maintaining pull-out resistance in vibration-prone environments. A nylon body paired with brass contacts delivers durable, corrosion-resistant performance in harsh industrial settings, helping to extend service life and lower maintenance costs. Designed as an extra heavy-duty, industrial specification grade device, it withstands the rigors of demanding production floors, minimizing replacement cycles and downtime. The two-pole, three-wire grounding and grounding receptacle configuration supports safe grounding practices in motor control and automation panels. Core-pack packaging reduces waste and supports efficient warehouse handling. With its 2.23 in length, 2.1 in height, and 3.61 in width, installation fits standard enclosures, while a 14 lbf-inch torque rating ensures consistent termination tightness.
Get a Quick Quote for a Eaton AH5269BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5269BK?
Enquire Now
FAQs
AH5269BK is a two-pole, three-wire grounding straight blade connector rated for 15A at 125V, designed for #16-12 AWG conductors with back-wire termination and a brass contact set. It aligns with standard NEMA 5-15R receptacle interfaces for easy panel integration and dependable power delivery in industrial equipment.
Yes. AH5269BK is RoHS compliant and cULus listed, with NOM classification W-C-596F. These certifications help ensure regulatory compliance for industrial wiring in North America and support safe, reliable operation in control panels and machinery.
Install by terminating wires via back-wire method using the built-in clamps and a compatible screwdriver. Maintain a torque of 14 lbf-in to secure terminations and prevent loosening from vibration. Use conductors within #16-12 AWG and ensure proper alignment for a solid two-pole, three-wire grounding connection in the enclosure.
Benefits include reliable 15A/125V operation, robust nylon body and brass contacts for durability, faster back-wire termination, and a grounded two-pole design ideal for motor control and automation panels. These features translate to reduced downtime, easier maintenance, and improved regulatory compliance across industrial wiring applications.
AH5269BK provides a grounded two-pole, three-wire configuration, a 125V rating, and RoHS plus cULus NOM compliance, delivering safer installations and reduced risk of regulatory non-conformance in industrial wiring, panels, and harness assemblies.
