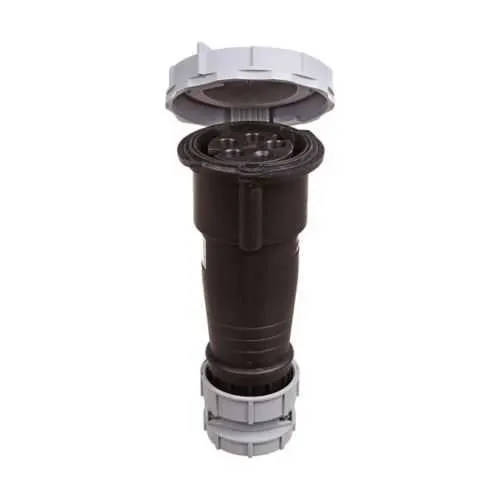

Eaton AH530C5W Pin and Sleeve Connector - IP69K
Part Number: AH530C5W
Quick Summary
The Eaton AH530C5W pin and sleeve connector provides rugged power interconnection for industrial facilities. In harsh environments, maintenance and unreliable terminations can halt production, making dependable connections essential. This IP69K/IP67 rated device carries cRUus certification and is built to withstand wash-down and high-pressure cleaning, offering long-term durability. With a 30A rating at 347/600V and three-phase capability, it supports efficient, scalable power distribution for OEMs and end users. Nylon housing and nickel-plated brass contacts deliver reliable performance while back-wire termination simplifies installation, reducing labor costs and field failures.
Product Information
Extended Description
AH530C5W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 30A, 3ØY 347/600V, Back wire, Black, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, grounding, 0.433-1.15in (1.10-2.92cm), Female, 15 HP, Nylon, Three-phase
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH530C5W
UPC
032664732744
Product Length/Depth
10.375 in
Product Height
4.813 in
Product Width
4.75 in
Product Weight
1.273 lb
Certifications
cRUus
Type
Connector
Amperage Rating
30A
Voltage rating
347/600 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
Grounding 5
Number Of Poles
Four-pole
Cord diameter
0.433-1.15in (1.10-2.92cm)
Phase
Three-phase
Environmental resistance
IP69K IP67
Color
Black
Gender
Female
Horsepower
15 hp
Allowable wire size
#10-2 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH530C5W
Eaton Specification Sheet - AH530C5W
Feature: IP69K/IP67 sealing and rugged housing provides superior protection against moisture, dust, and wash-down environments. Business Impact: Extends equipment life, reduces downtime from environmental ingress, and lowers maintenance costs. Application: Food & beverage processing, wastewater treatment, and other harsh-industrial settings benefit from durable sealing and dependable operation. Feature: 30A, 347/600V, four-pole, three-phase configuration enables standard industrial power distribution with fewer connection points. Business Impact: Improves electrical efficiency, simplifies panel layouts, and reduces wiring errors during installation. Application: Suitable for motors, pumps, and conveyors in OEM assemblies and retrofit projects. Feature: Back-wire termination with nylon body simplifies field assembly and improves insulation reliability. Business Impact: Speeds up commissioning, minimizes field faults, and lowers labor time per install. Application: System integrators and maintenance teams appreciate faster, cleaner terminations in demanding environments. Feature: Nickel-plated brass contacts offer low contact resistance and robust corrosion resistance. Business Impact: Maintains consistent performance over long service intervals, cutting rework and replacement costs. Application: High-humidity and wash-down areas common in food processing and water treatment. Feature: Four-pole grounding and compatibility with #10-2 AWG conductors provide versatile wiring options. Business Impact: Enhances safety, reduces the need for multiple connector types, and supports scalable system design. Application: Industrial power distribution across multi-motor and multi-line setups. Feature: cRUus certification and stringent IP ratings meet regulatory expectations for industrial equipment. Business Impact: Streamlines procurement and accelerates project approvals, reducing risk. Application: Compliance-focused deployments in North American facilities and engineered systems.
Get a Quick Quote for a Eaton AH530C5W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH530C5W?
Enquire Now
FAQs
AH530C5W supports back-wire termination compatible with #10-2 AWG conductors. When wiring, ensure proper stripping length and secure clamping to avoid loose terminations that can cause resistance rise or arcing. The nylon body provides good insulation, while the nickel-plated brass contacts maintain low contact resistance under frequent wash-downs. Proper torque and compliance with device ratings are essential for long-term reliability.
Yes. AH530C5W is IP69K and IP67 rated, designed for high-pressure wash-downs and harsh environments. It is a four-pole, three-phase connector rated for 30A and 347/600V, making it suitable for industrial motors, pumps, and conveyors where robust sealing and reliable phase connections are required.
Industries such as food and beverage, wastewater treatment, and general industrial manufacturing benefit most. The combination of IP sealing, nylon construction, and nickel-plated contacts supports hygienic environments, wash-down cycles, and long service life while enabling reliable power distribution across multi-motor systems and complex panel layouts.
AH530C5W carries cRUus certification and IP69K/IP67 environmental ratings, confirming compliance with North American electrical standards and demanding sealing requirements. These certifications simplify procurement, reduce regulatory risk, and support certified installations in process industries and OEM equipment.
The connector’s rugged sealing, back-wire ease, and durable contacts reduce maintenance frequency and field faults, translating to lower downtime and labor costs. Its compatibility with standard conductors and three‑phase power supports scalable machine designs, enabling faster commissioning, easier servicing, and improved uptime for critical production lines.
