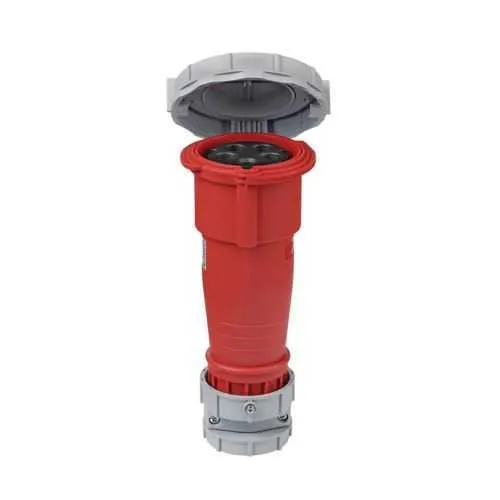

Eaton AH530C6WDR Pin and Sleeve Connector - IP69K Rated
Part Number: AH530C6WDR
Quick Summary
Eaton Arrow Hart pin and sleeve connector provides rugged power coupling for industrial equipment and mobile machinery in demanding environments. In harsh environments, ingress, vibration, and moisture challenge reliable connections, driving maintenance costs and downtime for many facilities. Its IP69K rating, along with IP67 protection, ensures washdown readiness and dust resistance across facilities from food processing to packaging lines. With a four-pole, 30/32A, and 200-415V rating, this connector supports scalable power distribution while enabling fast, secure field and panel installations. Designed with nickel-plated brass contacts and a nylon body, it reduces maintenance and service life, improving uptime and total cost of ownership in demanding industrial apps.
Product Information
Extended Description
AH530C6WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 30/32A, 30/32A 200-415V, four-pole, 0.433-1.15in (1.10-2.92cm) cable diameter, #10 -#2 AWG, nickel plated brass, 5 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH530C6WDR
UPC
032664007224
Product Length/Depth
8.74 in
Product Height
4.22 in
Product Width
4.22 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
30/32A
Voltage rating
30/32A 200-415V
Contact material
Nickel plated brass
Number of wires
5 Grounding
Number Of Poles
Four-pole
Cable diameter
0.433-1.15in (1.10-2.92cm)
Environmental resistance
IP69K IP67
Allowable wire size
#10 -#2 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
30A Dual Rated pin and sleeve devices spec sheet
Feature: IP69K rated protection delivers superior washdown resistance and dust exclusion, reducing corrosion risk and maintenance frequency. Business Impact: Increases equipment uptime and compliance with washdown protocols, lowering total cost of ownership. Application: Food processing lines, beverage plants, and automotive assembly where high-pressure cleaning is routine. Feature: 30/32A current rating at 200-415V supports higher-load motors and equipment with fewer interconnections, reducing connection points and failure risk. Business Impact: Improves electrical efficiency and simplifies panel design, cutting installation time. Application: Conveyor drives, pumps, and fans in medium-to-heavy industrial settings. Feature: Four-pole configuration with grounding and five-wire capability enables safe, robust power distribution and fault tolerance. Business Impact: Enhances operator safety and system reliability, reducing downtime from miswiring. Application: Machinery controls, robotic assemblies, and remote power drops. Feature: Nickel-plated brass contacts and nylon housing combine durability with corrosion resistance. Business Impact: Extends service life in harsh environments, lowering maintenance costs and replacement cycles. Application: Outdoor installations, washdown zones, and rugged factory floors. Feature: Cable diameter range 0.433-1.15 inches and wire size #10-#2 AWG provides flexible wiring options. Business Impact: Simplifies field wiring choices and inventory management, speeding commissioning. Application: New builds and retrofits in industrial plants and distribution centers.
