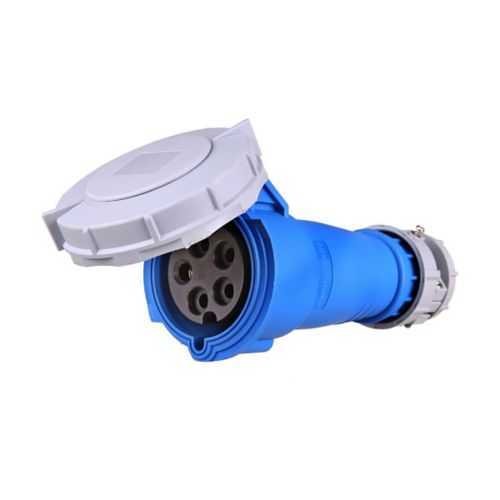

Eaton AH530C7W pin and sleeve connector - IP69K Rated
Part Number: AH530C7W
Quick Summary
The Eaton AH530C7W pin and sleeve connector is a high-current power interface designed for four-pole, three-phase industrial installations. Engineers often struggle with moisture ingress, corrosion, and field maintenance in harsh environments, making reliable sealing and easy terminations essential. With IP69K and IP67 environmental protection and cRUus certification, this connector meets demanding reliability standards in automated plants. The nylon body and nickel-plated brass contacts enable robust back-wire terminations and quick field retrofit, while red color coding helps ensure correct mating and safe operation. Designed for industrial, food and beverage, and wastewater applications, it supports efficient, compliant power distribution across equipment.
Product Information
Extended Description
AH530C7W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 30A, 3ØY 277/480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, grounding, 0.433-1.15in (1.10-2.92cm), Female, 10 HP, Nylon, Three-phase
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH530C7W
UPC
032664732751
Product Length/Depth
10.375 in
Product Height
4.813 in
Product Width
4.75 in
Product Weight
1.273 lb
Certifications
cRUus
Type
Connector
Amperage Rating
30A
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Number of wires
Grounding 5
Number Of Poles
Four-pole
Cord diameter
0.433-1.15in (1.10-2.92cm)
Phase
Three-phase
Environmental resistance
IP69K IP67
Color
Red
Gender
Female
Horsepower
10 hp
Allowable wire size
#10-2 AWG
Torque rating
10 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH530C7W
Eaton Specification Sheet - AH530C7W
Feature: IP69K/IP67 protection provides wash-down resilience and corrosion resistance. Business Impact: Reduces maintenance cycles and unplanned downtime, protecting costly equipment and enhancing plant availability. Application: Ideal for food and beverage lines, wastewater treatment facilities, and any harsh wash-down environment. Feature: 30A amperage rating with 277/480V three-phase capability. Business Impact: Supports standard industrial power distribution for motors, pumps, and conveyors, enabling fewer components and simplified panel layout. Application: Suitable for industrial automation cabinets, packaging lines, and material-handling equipment. Feature: Back-wire compatibility with #10-2 AWG cord diameter range (0.433–1.15 in). Business Impact: Streamlines field terminations and reduces installation time, lowering labor costs. Application: Quick-prep connections in back-wire installations for rugged, high-current circuits. Feature: Nickel-plated brass contacts in a nylon body. Business Impact: Improves contact reliability, wear resistance, and corrosion protection while keeping weight manageable. Application: Long-life performance in challenging environments such as manufacturing floors and chemical processing. Feature: Four-pole, grounding, red, nylon-faced connector rated for 10 HP and 10 lbf-in torque. Business Impact: Delivers strong mechanical and electrical integrity with straightforward mating alignment, reducing mis-wiring risk and enhancing safety. Application: Three-phase power distribution to motors and drives across heavy equipment fleets.
Get a Quick Quote for a Eaton AH530C7W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH530C7W?
Enquire Now
FAQs
Key considerations include back-wire termination compatibility with #10-2 AWG conductors, a cord diameter range of 0.433–1.15 inches, and a torque rating of 10 in‑lb to ensure proper seating. The nylon body and nickel-plated brass contacts provide durable, corrosion-resistant connections, while the IP69K/IP67 rating supports reliable operation in wash-down environments. Ensure correct mating with the corresponding male/female counterpart and verify grounding arrangement for three-phase power distribution.
Yes. The AH530C7W is designed for three-phase power with a 277/480V rating and a 30A amperage rating, enabling reliable four-pole connections for motors, pumps, and drives. Its back-wire capability and 10 HP horsepower rating support common industrial equipment, while the IP69K/IP67 protection supports challenging environments typical of modern manufacturing and processing facilities.
The AH530C7W carries cRUus certification for safety compliance and IP ratings of IP69K and IP67 for environmental resistance. These certifications ensure reliability in wash-down areas and compliance with North American safety standards, which is important for food processing, beverage lines, and wastewater treatment plants.
Industries such as industrial automation, food and beverage processing, and wastewater treatment benefit most. Applications include three-phase power distribution to motors and drives, back-wire terminations in rugged environments, and equipment interfaces requiring high protection ratings. The nylon body, nickel-plated brass contacts, and red color coding support safe, efficient installations across harsh production floors.
Nylon construction reduces weight while offering good impact resistance and chemical tolerance, contributing to longer device life and easier handling during installation. Nickel-plated brass contacts enhance wear resistance and conductivity, lowering maintenance frequency. Combined with IP69K/IP67 protection, these features translate to reduced downtime, fewer replacement parts, and overall lower total cost of ownership in demanding industrial settings.
