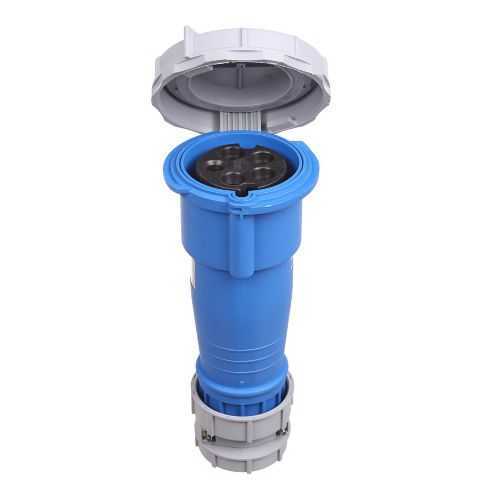

Eaton AH530C9WDR Pin & Sleeve Connector - IP69K Rated
Part Number: AH530C9WDR
Quick Summary
Eaton Arrow Hart pin and sleeve connector is a rugged, 30/32A power interface designed for industrial automation and heavy equipment. Operators often struggle with seal failures and corrosion in wash-down areas; this connector delivers reliable mating despite repeated exposure to moisture, dust, and high-pressure sprays. Key ratings include IP69K (wash-down protection) and IP67 compatibility in harsh environments, with a nylon body and nickel-plated brass contacts to resist corrosion. With a four-pole, 5-wire configuration and a flexible cable diameter range of 0.433 to 1.15 inches, it supports 120/208V three-phase systems and up to 30/32 A. Engineers gain installation efficiency and lifecycle reliability, while procurement benefits from standardized Eaton Arrow Hart components.
Product Information
Extended Description
AH530C9WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 30/32A, 30/32A 3ØY 120/208V, four-pole, 0.433-1.15in (1.10-2.92cm) cable diameter, #10 -#2 AWG, nickel plated brass, 5 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH530C9WDR
UPC
032664007231
Product Length/Depth
8.74 in
Product Height
4.22 in
Product Width
4.22 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
30/32A
Voltage rating
30/32A 3ØY 120/208V
Contact material
Nickel plated brass
Number of wires
5 Grounding
Number Of Poles
Four-pole
Cable diameter
0.433-1.15in (1.10-2.92cm)
Environmental resistance
IP69K IP67
Allowable wire size
#10 -#2 AWG
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
30A Dual Rated pin and sleeve devices spec sheet
IP69K rated sealing protects against washdown and dust intrusion, reducing downtime and maintenance costs in food processing, automotive assembly, and material handling, while preserving electrical integrity. The 30/32A amperage rating and 120/208V three-phase capability align with common industrial power systems, enabling standardization across equipment and assemblies and lowering part variety. The four-pole, five-wire configuration with grounding simplifies wiring layouts and improves fault isolation, boosting reliability in complex automation cells. Nickel-plated brass contact material delivers robust electrical performance and corrosion resistance, extending service life in harsh environments. The nylon face/body keeps the assembly lightweight for easier handling and faster installation, while maintaining strength for rugged panel interfaces. Cable diameter flexibility from 0.433 to 1.15 inches supports a range of field-wabricated cables, reducing inventory and accelerating deployment. Overall, compatibility with Arrow Hart accessories and existing Eaton pin-and-sleeve ecosystems minimizes training needs and procurement risk, delivering measurable uptime improvements and a lower total cost of ownership.
Get a Quick Quote for a Eaton AH530C9WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH530C9WDR?
Enquire Now
FAQs
The AH530C9WDR is a four-pole, pin-and-sleeve connector rated for up to 30/32A and 120/208V. Ensure mating receptacles match the four-pole configuration, select wiring within #10–#2 AWG, and route cables through appropriate strain relief. Verify IP69K sealing during mating, and consider nylon body compatibility with your enclosure materials to maximize longevity in washdown environments.
Yes. AH530C9WDR supports 30/32A current and 120/208V three-phase Y configurations with four poles and five conductors (including grounding). This makes it suitable for common industrial equipment, conveyors, and robot stations that require a rugged, standard power interface with reliable grounding and isolation.
The connector features IP69K-rated sealing and a nylon body with nickel-plated brass contacts, providing excellent moisture, dust, and corrosion resistance. These characteristics minimize ingress during high-pressure cleaning and frequent washdowns, reducing maintenance cycles and extending connector life in food processing, automotive, and material-handling facilities.
This device emphasizes IP ratings, notably IP69K washdown protection and IP67 compatibility in tough environments. The nylon body and nickel-plated brass contacts further support durability and corrosion resistance, making the AH530C9WDR a dependable choice for compliant, long-life power connections in industrial settings.
AH530C9WDR supports wire sizes from #10 to #2 AWG and a cable diameter range of 0.433 to 1.15 inches. This range accommodates a variety of field cabling configurations, enabling flexible installation across different equipment and enclosure layouts without changing connectors.
