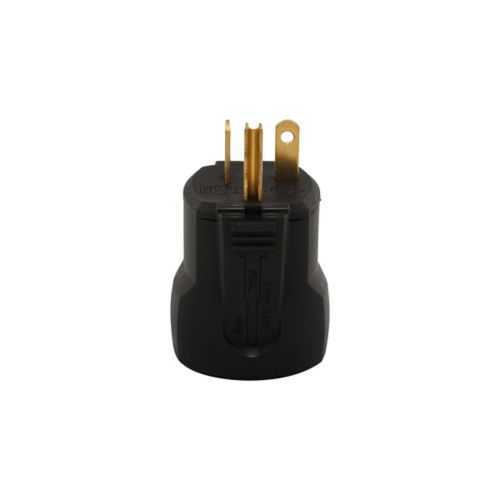

Eaton AH5364BK Quick Grip Plug - 20A 125V cULus
Part Number: AH5364BK
Quick Summary
AH5364BK is a rugged Eaton Arrow Hart quick grip straight blade plug designed for industrial 125V power connections. In the field, electricians often contend with loose terminations, corrosion, and slow wiring, which this plug mitigates through a reliable back-wire design and brass contact hardware. It carries cULus Listed and NOM certifications, reinforcing compliance with North American electrical standards in demanding environments. The combination of a durable nylon body, polycarbonate face, and robust torque rating supports quick, safe installations while reducing maintenance. For panel builders and maintenance teams, this plug delivers value through standardized configuration and ease of procurement, supporting streamlined project timelines and long-term reliability in control panels and factory wiring.
Product Information
Extended Description
AH5364BK Eaton: Eaton Arrow Hart quick grip straight blade plug, #18-12 AWG, 20A, Industrial, 125V, Back wire, Black, Brass, Polycarbonate with thermoplastic housing, 5-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66" in diameter, Nylon, Core pack
Product Name
Eaton Arrow Hart quick grip straight blade plug
Catalog Number
AH5364BK
UPC
032664722905
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
1.96 in
Product Weight
0.115 lb
Certifications
cULus Listed NOM
Device type
Plug
Type
Plug
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.33-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-20P
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Polycarbonate with thermoplastic housing
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5364BK
Eaton Specification Sheet - AH5364BK
Feature: 20A at 125V rating; Business Impact: Supports common industrial loads with a proven current capability, reducing the need for oversizing components and simplifying part selection; Application: Suitable for motor starters, conveyors, and equipment feeds in manufacturing environments. Feature: Back-wire wiring method plus screw termination; Business Impact: Fast, repeatable terminations with strong pull-out resistance, lowering installation time and rework risk; Application: Field terminations in control panels and equipment decks. Feature: NEMA 5-20P configuration with two-pole, three-wire grounding; Business Impact: Standardized plug/receptacle pairing for plug-and-play compatibility across machines, improving maintenance efficiency; Application: Industrial power distribution in panels and enclosures. Feature: Brass contact material with nylon body and polycarbonate housing; Business Impact: High conductivity paired with vibration and impact resistance, extending service life in harsh environments; Application: Heavy-duty industrial environments with frequent lifecycle cycling. Feature: Torque rating 12–14 lbf-in; Business Impact: Ensures consistent, code-compliant terminations that resist loosening over time, reducing failure modes; Application: Routine maintenance and installation checks. Feature: Cord-range compatibility 0.33–0.66 in; Business Impact: Accommodates a broad range of cord diameters without needing adapters, simplifying stock and field wiring; Application: Flexible power feeds to motors and control devices. Feature: Core-pack packaging; Business Impact: Streamlined stocking and inventory control for MES/ERP-driven procurement, lowering total cost of ownership; Application: Warehouse and distribution of parts for job sites. Certification note: cULus Listed NOM confirms alignment with regulatory requirements and safety standards for industrial wiring.
Get a Quick Quote for a Eaton AH5364BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5364BK?
Enquire Now
FAQs
AH5364BK supports back-wire terminations for fast, secure wiring and can also be installed with a screw connection where required. The device is designed for #18-12 AWG conductors, with a torque range of 12-14 lbf-in to maintain a reliable contact pressure. This combination minimizes rewiring time and ensures solid, vibration-resistant connections in demanding environments.
Yes. AH5364BK uses a NEMA configuration of 5-20P (two-pole, three-wire, grounding), enabling straightforward pairing with standard 125V receptacles in industrial panels. The straight blade design simplifies insertion in crowded panel layouts, and the durable polycarbonate nylon housing withstands daily industrial wear and vibration.
AH5364BK is cULus Listed and NOM certified, meeting North American safety standards for industrial wiring. These certifications help ensure compliance with regulatory requirements in many facilities, reduce risk during audits, and support safe operation in harsh industrial settings where reliable power connections are critical.
The allowable wire size is #18-12 AWG, terminating via back-wire or screw connections. The brass contact material provides reliable conduction, while the 12-14 lbf-in torque rating ensures consistent terminations. This combination supports dependable power delivery to motors and equipment and minimizes loosening from vibration or thermal cycling.
With a durable nylon body, polycarbonate face, and robust brass contacts, AH5364BK offers long service life and reduced maintenance needs. The back-wire design speeds installations, while compliant certifications help avoid downtime due to regulatory issues. Overall, users typically see lower replacement costs, faster panel builds, and improved machine uptime in high-cycle industrial applications.
