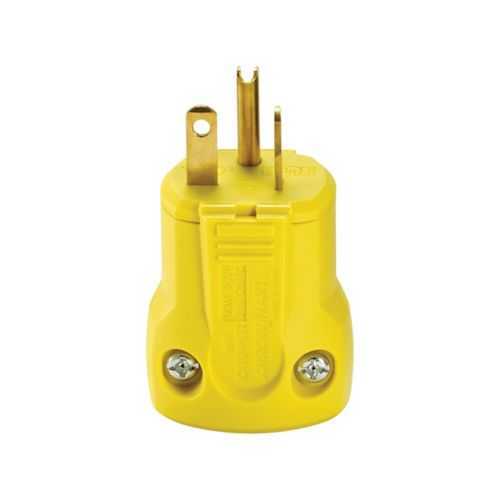

Eaton AH5364Y Plug - 20A 125V Two-Pole, cULus Listed NOM
Part Number: AH5364Y
Quick Summary
Eaton AH5364Y plug ensures secure, 20A 125V power connections for industrial equipment. This back-wire, straight-blade design helps reduce wiring time and improve reliability on control panels and manufacturing lines. Operators routinely confront loose terminations and wiring misfits in harsh environments; the AH5364Y mitigates these issues with brass contact reliability and a durable polycarbonate housing. The product carries cULus Listed and NOM certifications, underscoring compliance with essential safety standards. For buyers, this connector delivers rugged performance with a compact footprint, enabling efficient panel layouts, safer wire management, and predictable maintenance costs. Secondary considerations like compatible wiring methods and color coding further support streamlined installation and ongoing operational efficiency in industrial settings.
Product Information
Extended Description
AH5364Y Eaton: Eaton Arrow Hart quick grip straight blade plug, #18-12 AWG, 20A, Industrial, 125V, Back wire, Yellow, Brass, Polycarbonate with thermoplastic housing, 5-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66" in diameter, Nylon, Core pack
Product Name
Eaton Arrow Hart quick grip straight blade plug
Catalog Number
AH5364Y
UPC
032664722882
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
1.96 in
Product Weight
0.115 lb
Certifications
cULus Listed NOM
Device type
Plug
Type
Plug
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.33-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Yellow
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-20P
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Polycarbonate with thermoplastic housing
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5364Y
Eaton Specification Sheet - AH5364Y
Feature → Business Impact → Application: Back-wire termination streamlines installation and reduces field wiring time, delivering measurable labor savings and fewer wiring errors in high-volume assembly lines. Application: Use in control panels and industrial enclosures where consistent terminations are critical. Feature → Business Impact → Application: Brass contact material provides stable conductivity and wear resistance, lowering contact resistance over time and boosting uptime in demanding environments. Application: Ideal for hot, vibration-prone equipment where secure mating is essential. Feature → Business Impact → Application: Two-pole, three-wire grounding with a 5-20P configuration ensures proper safety grounding and compatibility with common NEMA devices, reducing misconfigurations in new or retrofit projects. Application: Industrial machinery, motor loads, and power distribution blocks. Feature → Business Impact → Application: Nylon body and polycarbonate housing offer impact resistance and chemical tolerance, extending service life in factory floors and outdoor-rated installations. Application: Environments with tool vibration, heat exposure, or exposure to cleaning agents. Feature → Business Impact → Application: Yellow color coding aids visual identification for circuit zoning and safety procedures, lowering the risk of incorrect connections in complex panels. Application: Large-scale electrical installations and retrofits where quick identification saves time. Feature → Business Impact → Application: Back- and screw-term combinations provide flexible wiring options and secure assemblies, supporting diverse field requirements and reducing rework during installation. Application: Field wiring in mixed commissioning scenarios. Feature → Business Impact → Application: 0.33–0.66 in cord range compatibility accommodates a wide variety of flexible cables, enabling broader supplier and wire sourcing compatibility. Application: Device hookups in power distribution blocks and equipment harnesses.
Get a Quick Quote for a Eaton AH5364Y
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5364Y?
Enquire Now
FAQs
Yes. AH5364Y is specified for #18-12 AWG wiring with back-wire termination, and it provides a 12-14 lbf-in torque rating for a secure connection. This supports reliable, code-compliant terminations in control panels and industrial assemblies.
The plug is rated at 20A and 125V, with a two-pole, three-wire grounding configuration (5-20P). It uses brass contacts and a yellow nylon body with a polycarbonate housing for durable, high-visibility performance.
Yes. It is a heavy-duty industrial specification grade connector, certified with cULus Listed and NOM, designed to withstand industrial environments while maintaining secure terminations and reliable performance.
The NEMA configuration is 5-20P, two-pole, three-wire grounding. It is commonly used in industrial equipment hookups, control cabinets, and power distribution blocks requiring a safe, compliant straight-blade plug.
AH5364Y provides back-wire and screw connection options, enabling flexible wiring approaches and quicker field terminations. Its compact dimensions, brass contacts, and durable housing reduce rework and support easier panel layout and maintenance.
