Eaton AH5369 Plug - UL NOM Federal Specification 6221 02
Part Number: AH5369
Quick Summary
The Eaton AH5369 plug delivers rugged straight-blade connectivity for industrial wiring. When field terminations are rushed or miswired, downtime and safety risk rise, impacting productivity. Certifications include UL NOM Federal Specification 6221 02, aligning with stringent industrial standards and regulatory expectations. Designed for 20A, 125V operation with back-wire termination, this connector supports efficient panel wiring and reliable control-system performance, while smaller facilities benefit from its compact footprint. For procurement and maintenance teams, AH5369 combines robustness with straightforward installation, helping reduce rework and improve overall project lead times in industrial environments. Secondary considerations such as NEMA 5-20P compatibility and durable nylon construction reinforce value across projects and service life.
Product Information
Extended Description

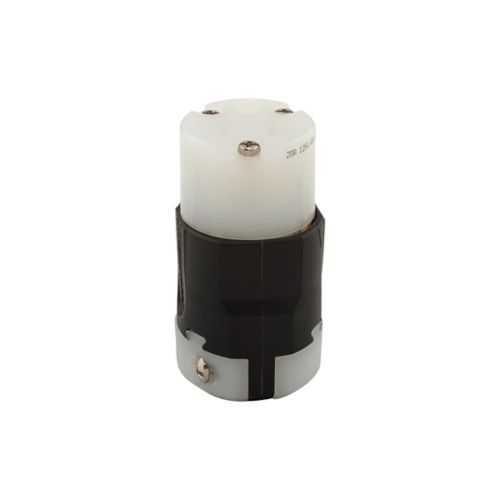

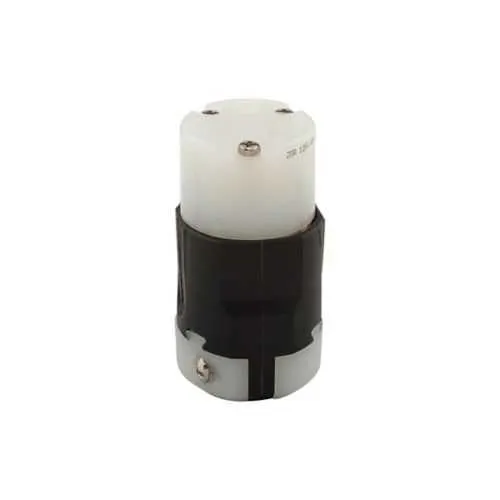

AH5369 Eaton: Eaton Arrow Hart ultra grip straight blade connector, #16 - #12 AWG, 20A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name
Eaton Arrow Hart ultra grip straight blade connector
Catalog Number
AH5369
UPC
032664737565
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
2.59 in
Product Weight
0.195 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Amperage Rating
20A
NEMA configuration
5-20P
Torque rating
12-14 lbf-inch
Voltage rating
125V
Wiring method
Back wire
Color
Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#16-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Connector
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Plug
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5369
Eaton Specification Sheet - AH5369
The AH5369 is engineered as a 20A, 125V straight blade plug that accepts #16-12 AWG conductors, enabling broad compatibility with common control panel wiring while ensuring a stable, code-compliant connection. This translates to a tangible business impact: faster assembly in manufacturing lines and reduced field troubleshooting when wiring into NEMA 5-20P outlets in power-distribution enclosures. By supporting back-wire termination, installers achieve cleaner terminations with less risk of conductor loosening, improving panel reliability in high-vibration environments. The nylon body and brass contacts deliver strength and corrosion resistance, extending service intervals and lowering maintenance cost in harsh plant conditions. The two-pole, three-wire grounding configuration provides essential safety grounding, while the 0.33-0.66" cord range accommodates common cordsets used in industrial equipment. With a dedicated industrial design and screw termination, installation time is minimized, and consistency across assemblies is improved. Core packaging aids stocking and logistics, helping maintenance teams plan replacements without disruptive downtime. This connector is ideal for control panels, motor starters, and other industrial apparatus where reliability and regulatory alignment matter most.
Get a Quick Quote for a Eaton AH5369
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5369?
Enquire Now
FAQs
To install AH5369, prepare conductors within the #16-12 AWG range, strip appropriately, and insert into the back-wire terminals per the device’s wiring diagram. Tighten screws to the specified torque (12-14 lbf-in) to ensure a secure connection. Verify polarity and grounding by testing with a circuit simulator or a calibrated continuity tester before energizing the panel. This process minimizes the risk of loose terminations and improves long-term reliability in industrial cabinets.
AH5369 supports up to 20A at 125V and accepts #16-12 AWG conductors. It is designed for two-pole, three-wire configurations with grounding (NEMA 5-20P compatibility). The back-wire termination method simplifies field wiring, reduces installation time, and promotes consistent conductor seating. These ratings make it suitable for typical industrial control circuits and equipment power feeds within standard panel enclosures.
Yes. AH5369 is a two-pole plug with a grounding receptacle configuration intended for industrial use. Its grounding feature ensures proper safety pathways for fault conditions, meeting common industry practices for control and power distribution in factory environments. The product’s nylon body and brass contacts further enhance durability in areas with mechanical stresses and exposure to contaminants.
AH5369 carries UL NOM Federal Specification 6221 02 classification, reflecting compliance with established electrical safety and performance standards for industrial wiring devices. This certification supports regulatory acceptance across markets and helps ensure that installations meet recognized safety criteria, reducing the risk of non-conformance during inspections and maintenance audits.
The connector uses brass contacts and a nylon body, delivering durability and corrosion resistance suited to continuous operation in industrial environments. With screw and back-wire terminations, terminations remain secure under vibration, reducing rework and maintenance cycles. A compact form factor and core-pack packaging streamline stocking and replacements, contributing to lower inventory handling costs and faster field service responses.
