Eaton AH5369BK Quick Grip Connector - 20A 125V UL NOM 6221 02
Part Number: AH5369BK
Quick Summary
Eaton AH5369BK quick grip connector is designed to securely terminate wires in industrial applications. This straight blade connector simplifies field wiring and reduces installation time, addressing common looseness and mis-wiring challenges in control panels. It carries UL NOM Federal Specification 6221 02 compliance, reinforcing reliability in demanding environments, with additional industry validation for rugged use. The design supports back-wire terminations, 2-pole 3-wire grounding, and a 20A/125V rating, delivering predictable performance. For engineers and procurement teams, this means faster panel builds, easier maintenance, and consistent electrical safety across machines and assemblies.
Product Information
Extended Description
AH5369BK Eaton: Eaton Arrow Hart quick grip straight blade connector, #16-12 AWG, 20A, Industrial, 125V, Back wire, Black, Brass, Polycarbonate with thermoplastic housing, 5-20R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

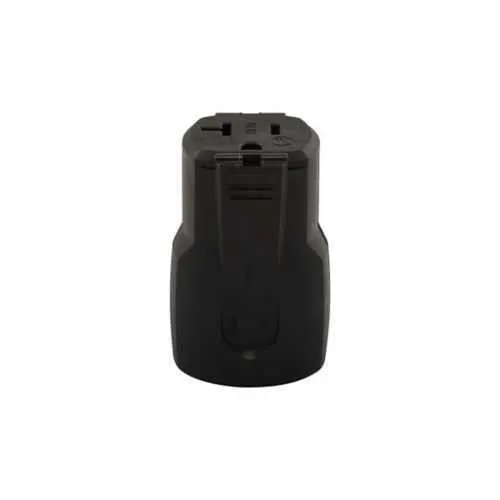

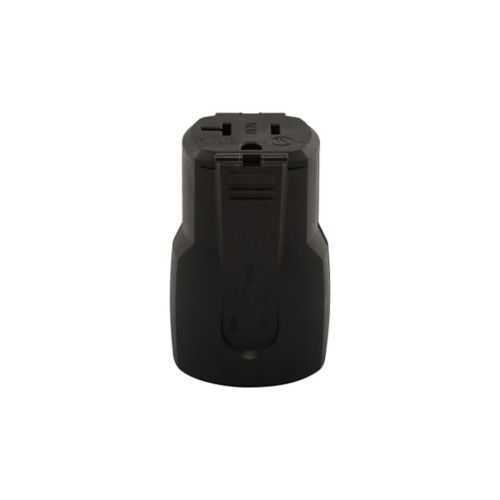

Eaton Arrow Hart quick grip straight blade connector
Catalog Number
AH5369BK
UPC
032664722912
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
2.59 in
Product Weight
0.129 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Connector
Type
Connector
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.33-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#16-12 AWG
NEMA configuration
5-20R
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Polycarbonate with thermoplastic housing
Receptacle type
Two-pole, three-wire, grounding
