Eaton AH5466 Straight Blade Plug - UL Listed 20A 250V
Part Number: AH5466
Quick Summary
AH5466 is Eaton's straight blade plug, delivering reliable power connections for industrial equipment and control panels. Many engineers face loose terminations and wear in harsh environments; this design uses back-wire wiring and a durable nylon body to minimize downtime. UL Listed, RoHS Compliant, and bearing Federal Specification Classification 6221 02 with NOM certification, the AH5466 meets essential safety and regulatory requirements. Rated at 20A and 250V in a two-pole, three-wire grounding configuration, it handles typical industrial loads with confidence. Designed for compatibility with Arrow Hart accessories, it enables scalable, cost-effective panel and wiring installations.
Product Information
Extended Description
AH5466 Eaton: Eaton Arrow Hart ultra grip straight blade plug, #16 - #12 AWG, 20A, Industrial, 250V, Back wire, Black, Brass, Nylon, 6-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

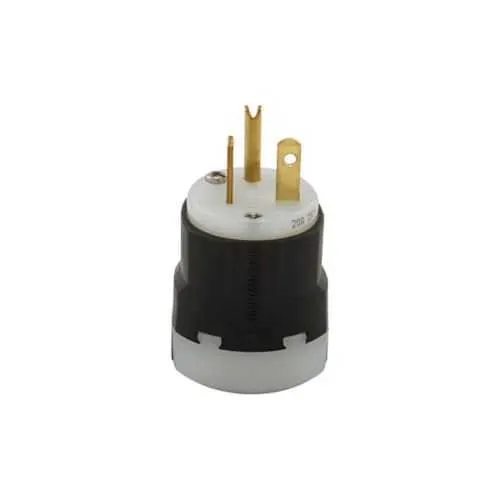

Eaton Arrow Hart ultra grip straight blade plug
Catalog Number
AH5466
UPC
032664737572
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
2.59 in
Product Weight
0.165 lb
Compliances
RoHS Compliant
Certifications
UL NOM Federal Specification Classification 6221 02
Amperage Rating
20A
NEMA configuration
6-20P
Torque rating
14 lbf-inch
Voltage rating
250V
Wiring method
Back wire
Color
Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#16-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Plug
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Plug
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5466
Eaton Specification Sheet - AH5466
