Eaton AH5469BK Connector - UL NOM 6221 02 Industrial Grade
Part Number: AH5469BK
Quick Summary
The Eaton AH5469BK Connector is a quick grip straight blade connector designed for industrial wiring projects. When wiring panels or control cabinets, unreliable terminations from back-wire or loose screws can slow assembly and increase field service time. It carries UL and NOM listings, plus Federal Specification 6221 02, supporting compliance in regulated environments. The unit accepts #16-12 AWG conductors and uses a back-wire termination for faster, consistent terminations, while the brass contact and nylon body deliver durable, corrosion-resistant performance. Designed for two-pole, three-wire configurations with grounding and a 0.33–0.66 inch cord range, it provides secure, code-compliant connections in harsh industrial environments. This product aligns with heavy-duty industrial specification grade requirements and complements other Eaton Arrow Hart components for scalable panel wiring.
Product Information
Extended Description
AH5469BK Eaton: Eaton Arrow Hart quick grip straight blade connector, #16-12 AWG, 20A, Industrial, 250V, Back wire, Black, Brass, Nylon, 6-20R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

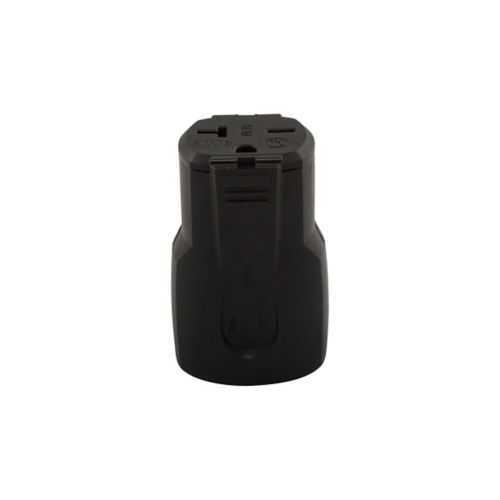

Eaton Arrow Hart quick grip straight blade connector
Catalog Number
AH5469BK
UPC
032664734250
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
2.59 in
Product Weight
0.129 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Connector
Type
Connector
Amperage Rating
20A
Voltage rating
250V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.33-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#16-12 AWG
NEMA configuration
6-20R
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5469BK
Eaton Specification Sheet - AH5469BK
Feature: Quick grip straight blade design with screw connection; Business Impact: speeds installation and ensures stable terminations even in vibration-prone panels; Application: panel wiring in industrial automation environments. Feature: Back wire termination supports #16-12 AWG conductors; Business Impact: reduces tool requirements and improves repeatability of terminations; Application: control cabinets and equipment enclosures. Feature: 20A, 250V rating; Business Impact: supports common industrial loads and motor control circuits; Application: industrial power distribution. Feature: NEMA 6-20R compatibility, two-pole three-wire with grounding; Business Impact: ensures safe grounding and field compatibility; Application: rugged machinery and drive systems. Feature: Nylon body with brass contacts; Business Impact: durable, corrosion-resistant and lightweight; Application: harsh plant environments with high duty cycles. Feature: UL NOM certification and Federal Specification 6221 02; Business Impact: regulatory compliance and streamlined procurement; Application: regulated facilities and OEM panel builds.
