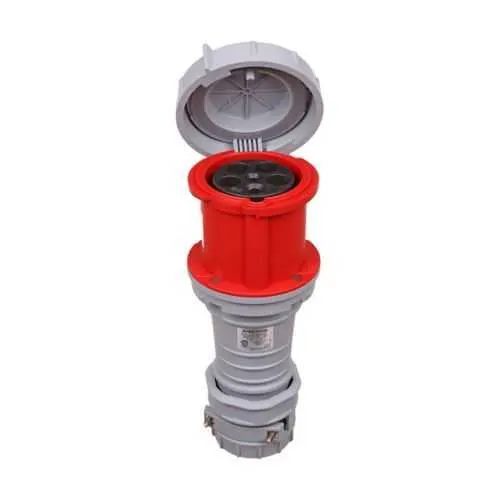

Eaton AH560C6WDR Pin and Sleeve Connector - IP69K Rated
Part Number: AH560C6WDR
Quick Summary
AH560C6WDR pin and sleeve connector delivers rugged, field-ready interconnection for industrial equipment and control panels. This solution tackles downtime caused by mismatched hardware and corroded contacts by offering a robust, easy-to-maintain interface. With IP69K protection and IP67 resilience in harsh environments, it thrives in washdown zones and on crowded factory floors. The nylon body keeps weight down while nickel-plated brass contacts ensure lasting conductivity, even in challenging conditions. Designed for 60/63A at 200-415V across four poles, it accommodates 0.66-1.5 inch cables and multiple wire sizes, delivering reliable performance with simplified installation. For engineers and procurement teams, AH560C6WDR provides a proven balance of durability, compatibility, and total cost of ownership reduction.
Product Information
Extended Description
AH560C6WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 60/63A, 60/63A 200-415V, four-pole, 0.66-1.5in (1.68-3.81cm) cable diameter, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), nickel plated brass, 5 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH560C6WDR
UPC
032664007309
Product Length/Depth
10 in
Product Height
4.29 in
Product Width
4.29 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
60/63A
Voltage rating
60/63A 200-415V
Contact material
Nickel plated brass
Number of wires
5 Grounding
Number Of Poles
Four-pole
Cable diameter
0.66-1.5in (1.68-3.81cm)
Environmental resistance
IP69K IP67
Allowable wire size
#8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot)
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
60A Dual Rated pin and sleeve devices spec sheet
Feature: IP69K rated protection for continuous washdown exposure → Business Impact: Maintains electrical integrity and reduces maintenance downtime in food processing, pharmaceuticals, and aggressive cleaning environments → Application: Mated to Arrow Hart systems in automated washdown lines. Feature: 60/63A current rating at 200-415V across four poles → Business Impact: Supports heavy equipment and motors without overdesign, enabling compact switchgear and safer panel layouts → Application: Control panels and motor starter assemblies in packaging and material handling. Feature: Cable diameter range 0.66-1.5 inches → Business Impact: Flexible harnessing reduces part diversity and stocking costs while simplifying field routing → Application: Equipment end-stops, conveyors, and multi-axis machinery. Feature: 5-wire configuration including grounding and pilot → Business Impact: Improves fault detection, safety interlocks, and control accuracy for complex automation → Application: PLC, servo, and I/O interfaces in automated lines. Feature: Nickel-plated brass contacts and nylon housing → Business Impact: Superior corrosion resistance, extended service life, and lighter weight for easier installation → Application: Harsh factories, outdoor enclosures, and high-traffic machinery. Feature: Four-pole design with robust mating interface → Business Impact: Reliable connections under vibration and thermal cycling, reducing rework and warranty costs → Application: Industrial automation panels and rugged equipment connections. Feature: General dimensions and weight support quick planning and installation → Business Impact: Predictable fit in existing enclosures, faster project timelines, and easier spare-part planning → Application: Retrofit projects and new builds in control rooms and plant floors.
Get a Quick Quote for a Eaton AH560C6WDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH560C6WDR?
Enquire Now
FAQs
AH560C6WDR is a four-pole pin and sleeve connector designed to be compatible with Eaton Arrow Hart mating devices. Its nylon housing and nickel-plated brass contacts ensure secure, corrosion-resistant connections, while the 10 inch length and standard 4-pole configuration simplify cross-compatibility with existing harnesses and panel mounts. When planning retrofit installs, verify cable diameter range (0.66-1.5 in) and grounding/pilot wiring to match your control scheme.
The AH560C6WDR supports 60/63A at 200-415V across four poles, with allowable wire sizes from #8 to #2 AWG (ground #10-#2 AWG, pilot #12-#16 AWG). The connector also handles IP69K and IP67 environmental exposure, making it suitable for washdown and wet environments. This combination enables reliable motor and actuator interconnections while maintaining safety margins under peak loads.
Yes. The IP69K rating provides superior washdown protection, and the nickel-plated brass contacts resist corrosion in aggressive cleaners. The nylon body keeps weight down and simplifies installation in tight spaces. The four-pole, four-wire plus grounding/pilot configuration supports complex automation panels typical in food processing lines, packaging plants, and pharmaceutical equipment.
AH560C6WDR carries IP69K protection with IP67 resistance in applicable conditions, ensuring ingress protection during aggressive cleaning and condensation scenarios. While CE/UL certifications are not listed in the provided data, the device's rugged rating and nickel-plated brass contacts align with industry expectations for safety and reliability in European and North American automation environments.
The combination of IP69K protection, corrosion-resistant nickel-plated brass contacts, and a nylon housing reduces corrosion-related failures and maintenance cycles. The four-pole design simplifies wiring, while the compatibility with Arrow Hart systems minimizes spare-part variety. This translates to lower downtime, faster servicing, and a lower total cost of ownership across machine life cycles.
