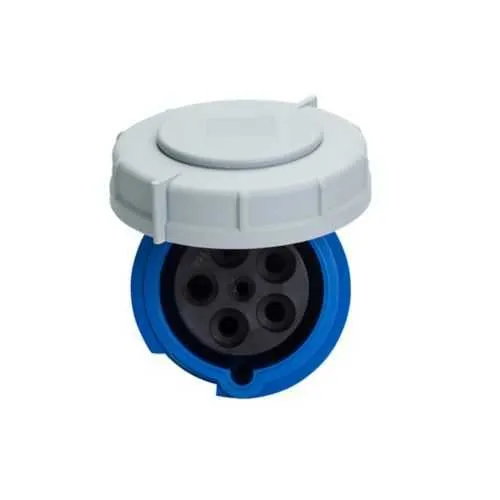

Eaton AH560C9WDR Pin & Sleeve Connector - IP69K Rated
Part Number: AH560C9WDR
Quick Summary
Eaton AH560C9WDR is a pin and sleeve connector for high-reliability power connections in industrial equipment. Maintenance teams face moisture ingress and field miswiring that drive unplanned downtime, especially in washdown zones. This device provides IP69K washdown protection, IP67 compatibility, and a four-pole, 60/63A rating for 120/208V service, delivering durable performance in harsh environments. Designed for quick, dependable installations, it aligns with Arrow Hart components and supports a broad cable range to simplify project planning and reduce inventory costs. Where reliability matters most, this connector minimizes maintenance cycles and helps meet uptime SLAs for critical lines. Its design supports straightforward field terminations and reduces the risk of incorrect wiring through color-coded, keyed interfaces.
Product Information
Extended Description
AH560C9WDR Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 60/63A, 60/63A 3ØY 120/208V, four-pole, 0.66-1.5in (1.68-3.81cm) cable diameter, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), nickel plated brass, 5 wire
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH560C9WDR
UPC
032664007316
Product Length/Depth
10 in
Product Height
4.29 in
Product Width
4.29 in
Product Weight
0.01 lb
Special features
IP69K Rated
Type
Connector
Amperage Rating
60/63A
Voltage rating
60/63A 3ØY 120/208V
Contact material
Nickel plated brass
Number of wires
5 Grounding
Number Of Poles
Four-pole
Cable diameter
0.66-1.5in (1.68-3.81cm)
Environmental resistance
IP69K IP67
Allowable wire size
#8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot)
Design type
Pin and sleeve connector
Face/body material
Nylon
Eaton’s Arrow Hart Dual rated pin and sleeve devices
60A Dual Rated pin and sleeve devices spec sheet
IP69K/IP67 environmental protection minimizes moisture and dust ingress, extending component life and reducing maintenance intervals. The nylon body with nickel-plated brass contacts resists corrosion even in rigorous washdowns, delivering lower replacement costs over the device lifecycle. This makes the AH560C9WDR ideal for food and beverage processing lines, pharmaceutical packaging, and outdoor equipment where cleanliness and reliability are non-negotiable. High-current capability of 60/63A in a four-pole, 120/208V three-phase Y configuration supports motor loads and control circuits directly, reducing the number of components and saving panel space. This simplifies electrical design and field assembly on conveyors, presses, and processing equipment, delivering consistent power distribution with fewer points of failure. The connector also offers a wide cable diameter range, 0.66-1.5 in (1.68-3.81 cm), enabling field installs without adapters and easing BOM management. Grounding and pilot wiring options (#10 - #2 AWG for ground, #12 - #16 AWG for pilot) provide flexible wiring for safety and control circuits, while the nylon body and nickel-plated brass contacts ensure durable, corrosion-resistant performance in harsh environments. Compatibility with Arrow Hart dual-rated devices simplifies system integration and spare-part planning, promoting faster maintenance and reduced downtime in demanding automation applications.
