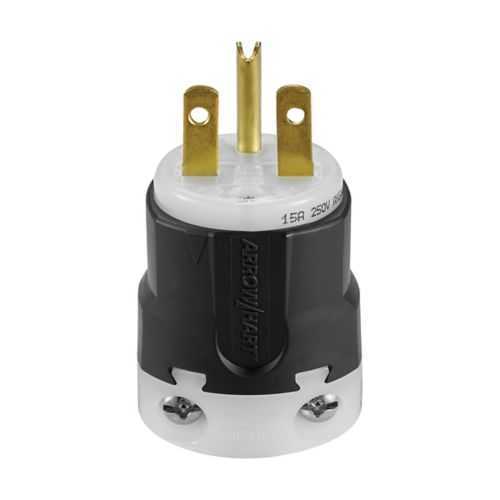

Eaton AH5666 Arrow Hart straight blade plug - NOM 6221-02
Part Number: AH5666
Quick Summary
The Eaton AH5666 Arrow Hart straight blade plug delivers a reliable, high-quality power connection for industrial equipment. In harsh environments, loose connections and downtime erode productivity and inflate maintenance costs. UL NOM 6221-02 certification and RoHS compliance ensure safety, traceability, and environmentally responsible operation. Designed for back-wire and screw connections, it simplifies field installation and provides secure, vibration-resistant performance. This device is ideal for industrial wiring and control panels where rugged reliability and quick, repeatable service matter. With a two-pole, three-wire grounding receptacle and a compact 2.23 in depth, it fits tight enclosures without compromising contact quality. Constructed from brass contacts and a nylon body, it supports a 0.33–0.66 inch cord range and #18-12 AWG wires.
Product Information
Extended Description
AH5666 Eaton: Eaton Arrow Hart ultra grip straight blade plug, #18 - #12 AWG, 15A, Industrial, 250V, Back wire, Black, Brass, Nylon, 6-15P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name
Eaton Arrow Hart ultra grip straight blade plug
Catalog Number
AH5666
UPC
032664737596
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
2.59 in
Product Weight
0.2 lb
Compliances
RoHS Compliant
Certifications
UL NOM Federal Specification Classification 6221 02
Amperage Rating
15A
NEMA configuration
6-15P
Torque rating
14 lbf-inch
Voltage rating
250V
Wiring method
Back wire
Color
Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#18-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Plug
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Plug
Arrow Hart - Connecting Safety to Reliability since 1890
Industrial Grade Straight Blade Devices Spec Sheet
Industrial Grade Straight Blade Devices Spec Sheet
Feature: High-current capability and precise mating. Business Impact: Ensures safe, reliable power transfer with minimal voltage drop in motors and equipment, reducing unexpected downtime and extending service intervals. Application: Power distribution in industrial control panels and motor control centers. The AH5666 delivers 15A at 250V with a 14 lbf-inch torque, aligning with NEMA 6-15P standards for rugged environments. Feature: Back-wire and screw termination. Business Impact: Speeds installation, lowers field labor costs, and minimizes wiring errors. Application: Quick terminations in panel enclosures and junction boxes while maintaining robust connection integrity. Feature: Brass contact with nylon face/body. Business Impact: Enhanced corrosion resistance and long-term durability in demanding environments, reducing maintenance needs. Application: Industrial settings with exposure to dust, oils, and temperature swings. Feature: Extra heavy-duty industrial specification grade. Business Impact: Improves lifecycle reliability and reduces replacement costs in high-use applications. Application: Repeated mating in control panels, machinery feeds, and power strips. Feature: Cord compatibility and grounding. Business Impact: Supports a wide range of conductors (0.33–0.66 in diameter) with secure grounding, enabling flexible wiring schemes. Application: Equipment wiring where safety, grounding, and versatility are critical for preventive maintenance and regulatory compliance.
Get a Quick Quote for a Eaton AH5666
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5666?
Enquire Now
FAQs
AH5666 supports back-wire and screw termination for #18-12 AWG conductors. For back-wire, strip the insulation per manufacturer guidelines and insert into the clamp until seated, then verify polarity. For screw termination, loosen terminal screws, insert conductors fully, tighten to the recommended torque (14 in‑lb), and retorque after a brief tug test. Ensure proper strain relief and enclosure clearance.
The AH5666 is rated for 15A at 250V and uses a NEMA 6-15P configuration. It is a two-pole, three-wire grounding device with back-wire or screw termination. This combination supports industrial equipment such as motors and control panels with reliable, code-compliant power connections in rugged settings.
Yes. AH5666 is designed for industrial wiring and control panels, featuring extra heavy-duty industrial specification grade construction, brass contacts, and a nylon body. Its RoHS compliance and UL NOM 6221-02 certification meet stringent safety and environmental standards, while its back-wire/screw options and 0.33–0.66 in cord range support flexible, durable panel wiring.
AH5666 carries RoHS compliance and UL NOM Federal Specification Classification 6221 02, signaling conformance to environmental and safety standards. This matters for regulatory compliance in many industrial facilities, ensures safer handling and disposal practices, and supports traceability during audits. The certification set reduces risk when integrating into regulated power distribution systems.
The combination of brass contact material and nylon body provides durable, corrosion-resistant performance with low contact resistance over time, reducing re-termination and maintenance needs. Its robust design, secure mating (14 in‑lb torque), and compatibility with common #18-12 AWG wiring contribute to lower replacement frequency and favorable total cost of ownership in high-use industrial environments.
