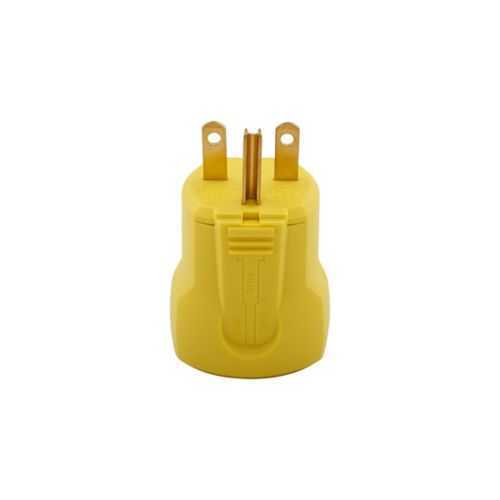

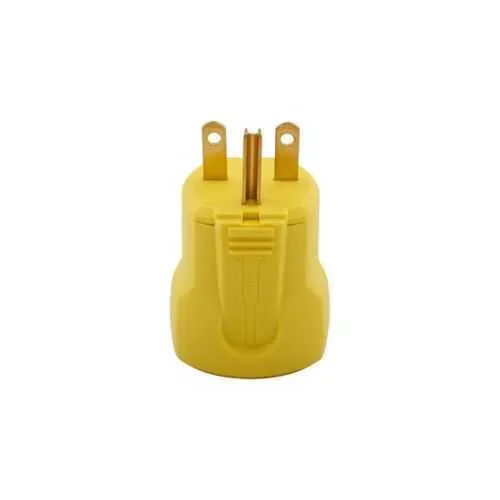

Eaton AH5666Y Quick Grip Plug - 250V, 6-15P, UL 6221
Part Number: AH5666Y
Quick Summary
The Eaton AH5666Y Quick Grip plug provides reliable, back-wire connectivity for industrial equipment in control panels and power distribution. Across harsh factory floors, conductor loosening from vibration creates downtime and safety risk—this plug addresses that with a rugged nylon body and firm screw connections. It carries RoHS compliance and UL, NOM, and Federal Specification 6221 02 listings to meet safety and regulatory requirements across global markets. Designed for heavy industrial use, it supports back-wire installation for quick field terminations, while its 6-15P configuration and 0.22-0.66 inch cord range enable flexible panel wiring.
Product Information
Extended Description
AH5666Y Eaton: Eaton Arrow Hart quick grip straight blade plug, #16-12 AWG, 15A, Industrial, 250V, Back wire, Yellow, Brass, Nylon, 6-15P, Two-pole, three-wire, grounding, Screw, 0.22-0.66", Nylon, Core pack
Product Name
Eaton Arrow Hart quick grip straight blade plug
Catalog Number
AH5666Y
UPC
032664722929
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
1.96 in
Product Weight
0.11 lb
Compliances
RoHS Compliant
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Plug
Type
Plug
Amperage Rating
15A
Voltage rating
250V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.22-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Yellow
Connection type
Screw
Allowable wire size
#16-12 AWG
NEMA configuration
6-15P
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5666Y
Eaton Specification Sheet - AH5666Y
Feature: Heavy-duty nylon body and brass contact material provide durable, corrosion-resistant performance. Business Impact: Minimizes wear and maintains low contact resistance, reducing maintenance and downtime. Application: Ideal for back-wire terminations in control panels and industrial junctions. Feature: Back-wire termination with screw clamp enables quick, secure conductor terminations. Business Impact: Improves installation efficiency and torque control, lowering labor costs and error rates. Application: Suitable for #16-12 AWG conductors in high-volume panel builds. Feature: NEMA 6-15P compatibility with a 15A, 250V rating ensures broad system compatibility. Business Impact: Reduces the need for adapters and streamlines wiring schemes. Application: Power distribution in automation panels and equipment racks. Feature: RoHS compliant with UL/NOM Federal Specification 6221-02 listing provides regulatory assurance. Business Impact: Facilitates global procurement and regulatory audits. Application: OEM and integrator deployments across multiple regions. Feature: Yellow color coding and nylon face/body for visibility and long service life. Business Impact: Helps prevent mis-wiring and supports rugged use in crowded panels. Application: Harness assemblies and control panel wiring in manufacturing environments. Feature: Torque rating of 12-14 lbf-in supports reliable clamping without over-torque risk. Business Impact: Ensures consistent electrical contact over lifecycle, improving system reliability. Application: Screw termination workflows with 0.22-0.66 inch cord ranges for flexible conductor sizes.
Get a Quick Quote for a Eaton AH5666Y
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5666Y?
Enquire Now
FAQs
To install AH5666Y, remove the panel cover, strip conductors to the recommended length, insert each conductor into the back-wire terminal under the clamp, and tighten the screw to the specified torque range of 12-14 lbf-in. Verify conductor seating and perform a continuity check. This method reduces field termination time and ensures a secure, vibration-resistant connection.
AH5666Y uses a 6-15P NEMA configuration rated for 15A at 250V, with two-pole, three-wire grounding. This matches common industrial power circuits, simplifies wiring schemes, and minimizes the need for adapters. Its back-wire option and rigid nylon housing support reliable panel wiring in manufacturing environments.
Yes. AH5666Y is RoHS compliant and carries UL/NOM and Federal Specification 6221-02 listings, confirming safety, material restrictions, and regulatory compliance. These certifications simplify cross-border procurement and support audits for OEMs and integrators deploying equipment across multiple regions.
Absolutely. AH5666Y is designed for #16-12 AWG conductors with back-wire termination and a screw connection. This enables secure, repeatable terminations, reduces the chance of conductor damage during installation, and supports quick field terminations in busy control panels.
The Quick Grip design delivers faster terminations, consistent torque, and reduced maintenance due to a robust nylon body and brass contacts. Over the lifecycle, this translates to lower labor costs, fewer unscheduled outages, and improved reliability in high-vibration industrial environments.
