Eaton AH5669 straight blade connector - UL 6221 02
Part Number: AH5669
Quick Summary
Eaton AH5669 straight blade connector is a rugged, two-pole terminal designed for industrial wiring in control panels and equipment enclosures. This solution addresses the common pain point of loose terminations in vibration-heavy environments by providing a secure back-wire and screw connection. It carries UL NOM Federal Specification Classification 6221 02, underscoring its compliance and reliability in regulated applications, while the nylon body and brass contacts contribute to long-term durability. For buyers seeking a robust, easy-to-install industrial connector, AH5669 also reinforces efficiency and maintenance improvements, aligning with core needs for safety, consistency, and cost control in manufacturing and process environments.
Product Information
Extended Description
AH5669 Eaton: Eaton Arrow Hart ultra grip straight blade connector, #16 - #12 AWG, 15A, Industrial, 250V, Back wire, Black, Brass, Nylon, 6-15R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

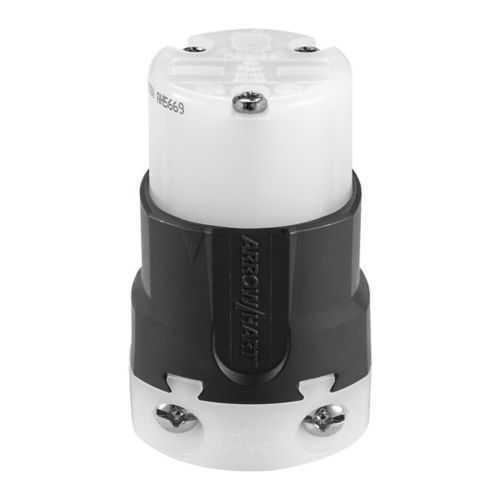

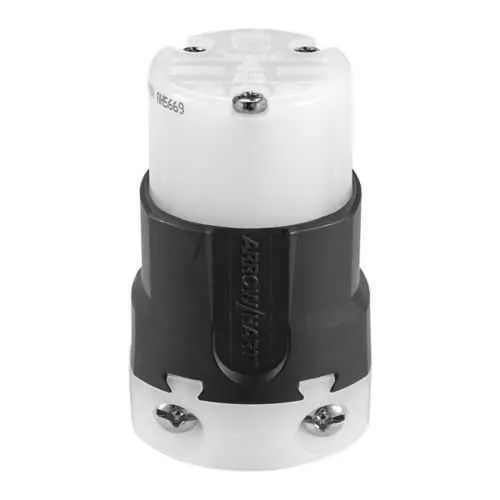

Eaton Arrow Hart ultra grip straight blade connector
Catalog Number
AH5669
UPC
032664737602
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
3.61 in
Product Weight
0.195 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Amperage Rating
15A
NEMA configuration
6-15R
Torque rating
12-14 lbf-inch
Voltage rating
250V
Wiring method
Back wire
Color
Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#16-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Connector
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Connector
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5669
Eaton Specification Sheet - AH5669
Feature: Supports #16-12 AWG conductors with a 15A, 250V rating. Business Impact: Enables use of common industrial conductors while ensuring safe operating margins. Application: Control cabinets and power feeds in machine equipment. Feature: Back-wire termination with screw connection. Business Impact: Speeds up installation, reduces field wiring errors, and improves vibration resistance. Application: Panel wiring where secure retention is essential. Feature: Nylon body with brass contacts. Business Impact: Delivers corrosion resistance and durable current transfer, lowering maintenance needs. Application: Harsh industrial environments and long-term reliability. Feature: Two-pole, three-wire receptacle with grounding (6-15R). Business Impact: Ensures proper grounding and simplifies compliance with electrical codes. Application: Industrial power distribution in equipment enclosures. Feature: Core-pack packaging and material robustness. Business Impact: Streamlines stocking and on-site handling, improving logistics and reducing waste. Application: High-volume manufacturing and assembly lines.
