Eaton AH5669Y Connector - UL NOM Federal Spec 6221 02
Part Number: AH5669Y
Quick Summary
AH5669Y connector by Eaton delivers quick-grip straight-blade electrical connectivity for industrial panel wiring. When space is tight and back-wire terminations are required, securing reliable connections can slow production. This unit is certified under UL NOM Federal Specification Classification 6221 02 and supports a 15A, 250V rating with a two-pole, three-wire grounding configuration (NEMA 6-15R), ensuring safe, compliant installations. With a yellow nylon housing and brass contacts, it delivers durable performance and straightforward wiring, helping OEMs and maintenance teams reduce installation time and lifecycle costs. Its back-wire option supports 0.22-0.66 inch wire diameters, and the 6-15R configuration enables plug-in compatibility with industrial equipment.
Product Information
Extended Description

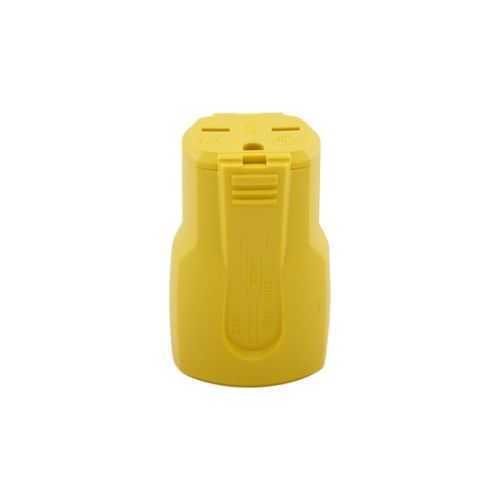

AH5669Y Eaton: Eaton Arrow Hart quick grip straight blade connector, #16-12 AWG, 15A, Industrial, 250V, Back wire, Yellow, Brass, Nylon, 6-15R, Two-pole, three-wire, grounding, Screw, 0.22-0.66", Nylon, Core pack
Product Name
Eaton Arrow Hart quick grip straight blade connector
Catalog Number
AH5669Y
UPC
032664722936
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
2.59 in
Product Weight
0.129 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Connector
Type
Connector
Amperage Rating
15A
Voltage rating
250V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.22-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Yellow
Connection type
Screw
Allowable wire size
#16-12 AWG
NEMA configuration
6-15R
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
