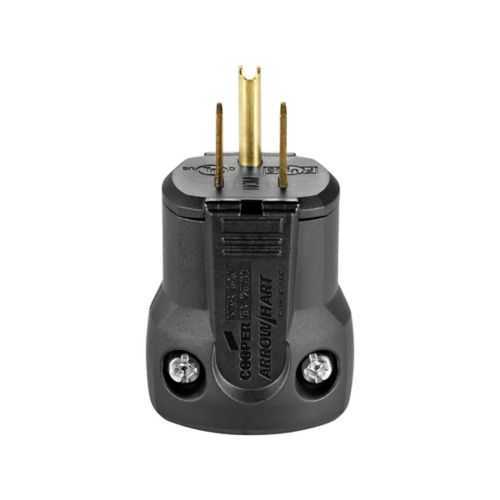

Eaton AH5965BK Plug - RoHS Compliant, 15A 125V
Part Number: AH5965BK
Quick Summary
Eaton AH5965BK Plug is a heavy-duty straight blade connector designed for industrial wiring and field installations. Maintenance teams often struggle with loose back-wire terminations in harsh environments; this plug delivers secure, tool-free connections that reduce restart times and improve safety. This device is RoHS compliant and cULus listed, rated at 15A and 125V, with a two-pole, three-wire grounding configuration to meet modern electrical codes. Designed for quick installation, it supports #18-12 AWG conductors and Nylon construction for reliability, while its compact, core-pack packaging streamlines procurement and inventory control. For engineers sourcing industrial wiring devices, the AH5965BK aligns with Arrow Hart standards and offers consistent torque performance of 12-14 lbf-in, ensuring stable connections over the equipment lifecycle. This combination reduces maintenance costs and field failures over time.
Product Information
Extended Description
AH5965BK Eaton: Eaton Arrow Hart quick grip straight blade plug, #18-12 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-15P, Two-pole, three-wire, grounding, Screw, 0.22-0.66" in diameter, Nylon, Core pack
Product Name
Eaton Arrow Hart quick grip straight blade plug
Catalog Number
AH5965BK
UPC
032664722868
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
1.96 in
Product Weight
0.135 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Device type
Plug
Type
Plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.22-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-15P
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5965BK
Eaton Specification Sheet - AH5965BK
Feature: Back-wire termination with secure screw connections → Business Impact: Faster, reliable field terminations reduce installation time and rework in busy panels; Application: Ideal for panel builders and equipment racks where quick, repeatable wiring is essential. Feature: 0.22-0.66 inch cord range compatibility → Business Impact: Accommodates a wide range of #18-12 AWG cables, minimizing stocking needs and enabling versatile installations in industrial settings; Application: Control enclosures and machine wiring where harness flexibility matters. Feature: 15A, 125V rating with brass contacts → Business Impact: Delivers dependable power delivery for standard industrial circuits, lowering nuisance trips and service calls; Application: General-purpose power distribution in manufacturing and facilities. Feature: Nylon body, black finish → Business Impact: Robust, lightweight construction improves durability and reduces wear in harsh environments; Application: Harsh factory floors and dusty electrical rooms. Feature: cULus listed, RoHS compliant → Business Impact: Ensures regulatory compliance and safer environmental handling, aiding procurement and audit readiness; Application: Compliance-driven projects across industrial automation. Feature: NEMA 5-15P configuration, two-pole three-wire grounding → Business Impact: Standardized compatibility with common receptacles simplifies design, installation, and maintenance; Application: Industrial control panels and equipment cords requiring grounding.
Get a Quick Quote for a Eaton AH5965BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH5965BK?
Enquire Now
FAQs
The AH5965BK uses back-wire terminals designed for #18-12 AWG conductors. Strip insulation per conductor, insert into the back-wire clamp until the conductor seats, and tighten the screw to the specified torque of 12-14 lbf-in. Verify conductors are fully seated and re-check torque after initial energization to ensure a secure, code-compliant connection.
Key specs include a 15A amperage rating and 125V voltage rating, brass contact material for reliable conductivity, and a two-pole, three-wire grounding configuration. These specifications support standard industrial power distribution while meeting RoHS and cULus certifications for safety and compliance.
Yes. With its straight blade design, back-wire capability, and NEMA 5-15P configuration, AH5965BK is well-suited for control panels and equipment enclosures where quick, durable power connections are required. Its nylon body and robust terminals withstand industrial environments, reducing maintenance frequency.
AH5965BK is RoHS compliant and cULus listed. RoHS ensures restricted hazardous substances are managed, while cULus listing confirms adherence to safety standards for electrical equipment used in North America. These certifications simplify procurement and support regulatory compliance across manufacturing facilities.
Benefits include faster installation due to reliable back-wire terminations, reduced rework from secure connections, and standardized components with broad compatibility (NEMA 5-15P). Over time, these factors translate into lower labor costs, fewer field failures, and improved overall equipment uptime in high-volume manufacturing environments.
