Eaton AH5969Y Connector - RoHS & cULus Listed
Part Number: AH5969Y
Quick Summary
Eaton AH5969Y connector provides quick-grip straight blade connections for industrial wiring. In the field, technicians often contend with loose terminations and time-consuming wiring when assembling control panels. It carries RoHS compliance and cULus listing for regulatory confidence, with a rugged nylon body and brass contacts designed for heavy-duty use. Designed for back-wire terminations with 18-12 AWG conductors, AH5969Y supports the two-pole, three-wire grounding configuration and NEMA 5-15R receptacle compatibility, delivering fast, reliable installs and reduced rework in demanding environments. This translates to lower wiring labor costs and improved ongoing maintenance performance for industrial equipment.
Product Information
Extended Description

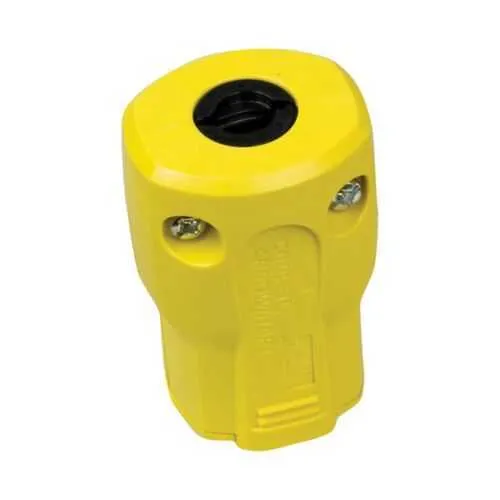

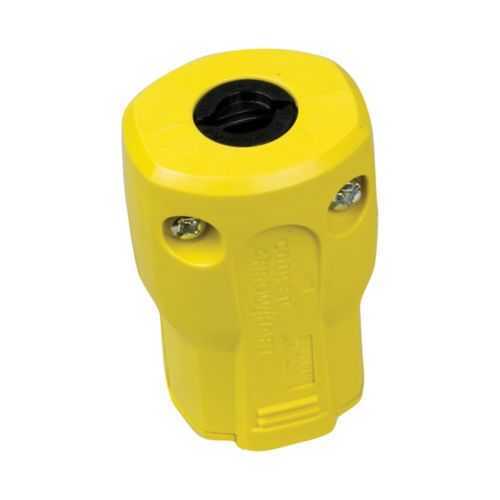

AH5969Y Eaton: Eaton Arrow Hart quick grip straight blade connector, #18-12 AWG, 15A, Industrial, 125V, Back wire, Yellow, Brass, Nylon, 5-15R, Two-pole, three-wire, grounding, Screw, 0.22-0.66" in diameter, Nylon, Core pack
Product Name
Eaton Arrow Hart quick grip straight blade connector
Catalog Number
AH5969Y
UPC
032664722851
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
2.59 in
Product Weight
0.129 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Device type
Connector
Type
Connector
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.22-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Yellow
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-15R
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH5969Y
Eaton Specification Sheet - AH5969Y
Back-wire, straight blade design with brass contacts and a nylon body enables secure terminations and reliable current flow in rugged environments, reducing intermittent contact and field service calls. The 15A, 125V rating aligns with standard control circuits, supporting dependable operation in industrial machines while avoiding over-specification that adds cost. The two-pole, three-wire grounding configuration and NEMA 5-15R compatibility ensure broad appliance and equipment interoperability, speeding panel builds and simplifying replacements. The cord range of 0.22-0.66 inches accommodates 18-12 AWG conductors, with a torque requirement of 12-14 lbf-in that guarantees consistent clamping and long-term stability. Yellow color coding aids circuit identification and safety compliance, while core-pack packaging streamlines inventory and logistics for maintenance teams. Overall, AH5969Y delivers measurable gains in install speed, reliability, and regulatory peace of mind for industrial wiring projects.
