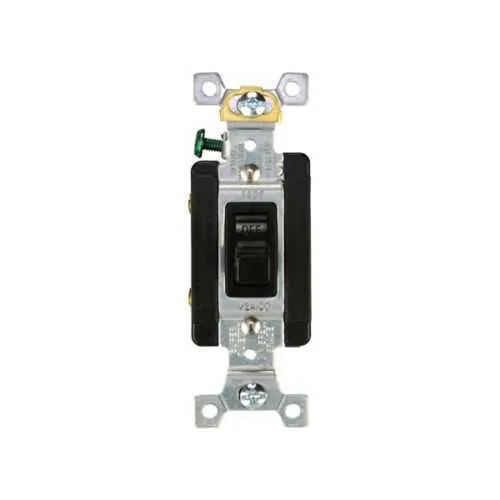

Eaton AH6808UDAC Manual Motor Controller - cULus Listed
Part Number: AH6808UDAC
Quick Summary
Eaton AH6808UDAC Manual Motor Controller is a compact, reliable on/off device for industrial motors, ideal in control panels and wall-mounted installations. Facility operators and engineers often confront wiring confusion, inconsistent terminations, and lengthy commissioning when adding motor control to panels. Built with back and side wiring and a thermoset enclosure, this unit supports 20/30A at 600/250V and is designed for single-phase, two-pole applications in harsh environments. Certified for cULus listing and RoHS compliance with NAFTA, it navigates regulatory hurdles and regional sourcing, accelerating project timelines. Its simple wall mounting and maintained toggle switch reduce downtime while delivering predictable performance and easy serviceability for uptime-critical equipment.
Product Information
Extended Description
AH6808UDAC Eaton: Eaton manual motor controller, #14-10 AWG, 20/30A,Industrial, Wall, 600/250V, Back and side, Maintained contact, Black, Open, Two-pole, -20-65˚C, Single-phase, Toggle switch, Copper-alloy terminal, brass screw, Single-throw, Thermoset
Product Name
Eaton manual motor controller
Catalog Number
AH6808UDAC
UPC
040893123905
Product Length/Depth
4 in
Product Height
12 in
Product Width
4 in
Product Weight
0.259 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed
Enclosure
Open
Special features
Switch only
Type
Manual motor controller
Amperage Rating
20/30A
Voltage rating
600/250V
Number Of Poles
Two-pole
Phase
Single-phase
Application
Industrial
Device grade
Industrial
Wiring method
Back and side, spring-loaded screw
Contact type
Maintained
Switch type
Toggle switch
Mounting method
Wall
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Thermoset plastic
Termination style
Back and side wire
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Black
Feature: 20/30A, 600/250V ratings; Business Impact: handles typical industrial motor loads with a healthy safety margin, reducing overcurrent risk and protecting downstream circuitry; Application: control panels for conveyors, machines, and fans. Feature: Two-pole, single-phase design with maintained contact; Business Impact: simplifies control logic and ensures predictable start/stop behavior, lowering misoperation; Application: single-phase motors in manufacturing lines and equipment racks. Feature: Back and side wiring with copper-alloy terminals (brass screws); Business Impact: accelerates wiring during installation and minimizes terminal creep over life, boosting reliability; Application: panel builders and field-installed motor controls. Feature: Open enclosure with a toggle switch; Business Impact: easier inspection, maintenance, and replacement, reducing downtime; Application: wall-mounted installations in service-heavy environments. Feature: Thermoset material and compact 4 in x 4 in footprint; Business Impact: rugged construction that withstands industrial heat and chemical exposure while saving panel space; Application: compact control stations and retrofit projects. Feature: RoHS Compliant and NAFTA with cULus Listed; Business Impact: streamlines regulatory approvals and component sourcing across North America; Application: compliance-driven industrial projects and OEM integrations. Feature: Wire range #14-10 AWG; Business Impact: supports common field wiring standards, reducing the need for adapters or re-termination; Application: new builds and upgrades in industrial facilities.
Get a Quick Quote for a Eaton AH6808UDAC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH6808UDAC?
Enquire Now
FAQs
The AH6808UDAC is designed for wall mounting with back and side wiring, using spring-loaded screws and copper-alloy terminals suitable for #14-10 AWG conductors. This allows quick, secure terminations in control panels and new installations, minimizing wiring errors and expediting panel builds. Its compact 4 in by 4 in footprint supports space-constrained enclosures while maintaining accessibility for maintenance.
AH6808UDAC provides a 20/30A amperage rating and a 600/250V voltage rating, configured as a two-pole, single-phase device with maintained contacts. This setup ensures reliable start/stop operation for industrial motors, reduces arcing during switching, and aligns with standard motor control practices in factory automation and machine control panels.
Yes. Rated for 20/30A and 600/250V, the two-pole, single-phase design with a toggle switch is well-suited for industrial conveyors, machines, and equipment control panels. Its wall-mount capability and open enclosure make it a practical option for accessible control points, while the back/side wiring supports straightforward integration into existing panel architectures.
AH6808UDAC is cULus Listed and RoHS Compliant, with NAFTA compliance as part of its general specifications. This combination supports regulatory approvals in North American markets, simplifies supplier qualification, and aligns with sustainability requirements often mandated in modern industrial projects.
The maintained contact design reduces wear-related contact bounce, while the thermoset enclosure provides durability in harsh environments. Back and side wiring simplifies field maintenance, enabling faster inspections and replacements. Overall, the device delivers lower downtime, faster commissioning, and predictable long-term reliability for ROI-focused panel retrofits and new builds.
