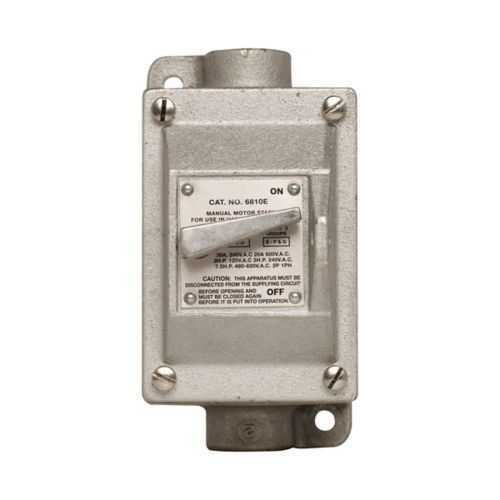

Eaton AH6810E Manual Motor Controller - cULus Listed
Part Number: AH6810E
Quick Summary
Eaton AH6810E manual motor controller is a compact wall-mount device designed for single-phase industrial motors. In many plants, wiring complexity, unprotected enclosures, and temperature variability drive downtime and field service costs. It carries cULus listing and RoHS compliance, plus a robust NEMA 3R/7/9 enclosure to protect against dust, moisture, and hazards. With front wiring, a 30A, 600V rating, and two-pole, single-phase operation, it streamlines installation while delivering reliable control and reduced maintenance. This combination supports faster panel assembly, safer shutdowns, and predictable performance in harsh environments, helping engineers meet safety, uptime, and cost targets.
Product Information
Extended Description
AH6810E Eaton: Eaton manual motor controller, #14-10 AWG, 30A, Wall, 600V, Front wired, Maintained contact, NEMA 3R,7,9, Enclosure: Copperless Al, Hazardous conditions, Two-pole, -20-65˚C, Single-phase, Toggle switch, Cu-alloy terminal, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH6810E
UPC
040893616827
Product Length/Depth
9.1 in
Product Height
5.9 in
Product Width
7 in
Product Weight
8.1 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed
Enclosure
NEMA 3R NEMA 9 NEMA 7
Special features
With NEMA 3, 7, & 9 enclosure
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Enclosure material
Copperless aluminum
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw
Contact type
Maintained
NEMA Rating
7 3 9
Environmental conditions
Class II, Groups E, F, G Class 1, Div 1 and 2, Groups C,D
Switch type
Toggle switch
Mounting method
Wall
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Enclosure protection and certifications align to industrial realities. The AH6810E uses a NEMA 3R/7/9 enclosure to guard against dust, moisture, and hazardous conditions, reducing the need for separate protective housings and enabling safer operation in mixed environments. Business impact: fewer enclosure-related faults and downtime; Application: control panels in washdown areas, outdoor installations, and challenging plant floors. Front wired screw terminations simplify wiring tasks and minimize miswiring risk. Business impact: faster installations, lower commissioning time, and improved field reliability; Application: rapid panel builds for OEMs and integrators. Maintained contact with a toggle switch provides predictable start/stop behavior, reducing arcing and extending contact life. Business impact: longer component life and lower maintenance costs; Application: motor control circuits in daily industrial operations. Copperless aluminum enclosure and glass-filled nylon body deliver robust durability without excessive weight, aiding serviceability and transport. Business impact: easier installation and upgrade cycles; Application: new builds and retrofits in constrained spaces. Operating temperature range of -20 to 65 °C supports consistent performance across locations and seasons. Business impact: broader geographic applicability, lower risk of heat-related failures; Application: automotive, packaging, and general industrial lines. RoHS compliance and NAFTA alignment simplify procurement and cross-border usage. Certification clarity: cULusListed and RoHS confirm safety and environmental standards for regulated industries. Application fit: industrial automation and control panels where reliability and regulatory adherence matter.
Get a Quick Quote for a Eaton AH6810E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH6810E?
Enquire Now
FAQs
AH6810E is designed for wall mounting with front-wired screw terminations suitable for #14-10 AWG conductors. When planning installation, ensure space for its NEMA 3R/7/9 enclosure, proper ventilation, and clear access to the front terminals for maintenance. Use appropriate torque values on copper-alloy terminals and confirm compatibility with 600V circuits in your panel design.
AH6810E supports front wired screw termination for #14-10 AWG conductors and uses copper-alloy, brass screws. It is a two-pole, single-phase device with a maintained contact type and a toggle switch, designed for straightforward wiring in control panels and motor circuits up to 30A and 600V.
The controller is intended for industrial use with single-phase motors up to 30A and 600V. Its NEMA 3R/7/9 enclosure makes it suitable for environments with dust, moisture, or hazardous conditions, including manufacturing lines, packaging systems, and other control panels requiring reliable manual motor control.
AH6810E is cULus Listed and RoHS Compliant, with NAFTA considerations. It features a NEMA-rated enclosure (3R, 7, 9) to support protection in varied environments. These certifications help ensure safety, regulatory compliance, and cross-border usability in industrial settings.
Engineers can expect reduced downtime due to robust enclosure protection, front wiring that minimizes field wiring errors, and a durable design with maintenance-friendly components. The 2-pole, single-phase configuration, 30A/600V rating, and lightweight copperless aluminum construction contribute to quicker service, safer operation, and lower lifecycle costs in everyday motor-control applications.
