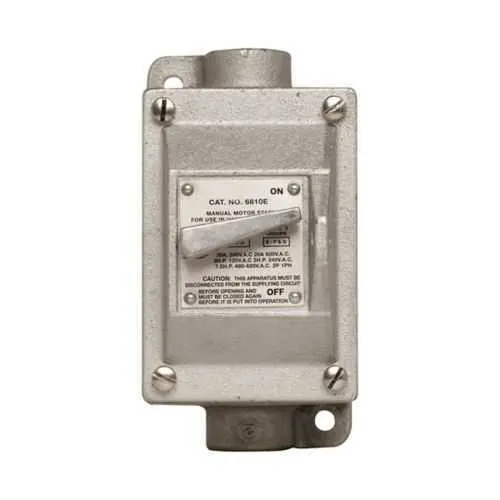

Eaton AH6810E-C Manual Motor Controller - cULus Listed
Part Number: AH6810E-C
Quick Summary
The Eaton manual motor controller AH6810E-C provides front-wired control for single-phase motors in industrial equipment. Maintenance teams frequently struggle with wiring access and enclosure protection in harsh environments, and this device is designed to simplify field wiring and minimize downtime. It carries cULus Listed, RoHS Compliant, and NAFTA verification, with NEMA 7, 9, and 3R enclosures suitable for hazardous locations. The combination of rugged enclosure, wall-mount convenience, and front-screw wiring drives business value by improving installation speed and long-term reliability. Designed for Canadian versions and industrial duty, it supports #14-10 AWG wiring and a two-pole, single-phase configuration. With front wired terminals and a maintained contact action, technicians can perform replacements quickly without compromising safety.
Product Information
Extended Description
AH6810E-C Eaton: Eaton manual motor controller, Canadian version, #14-10 AWG, 30A, 600V, Front wired, Maintained contact, NEMA 3R,7,9, Enclosure: Copperless Al, Hazardous conditions, Two-pole, -20-65˚C, Single-phase, Toggle, Cu-alloy terminal, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH6810E-C
UPC
040893660349
Product Length/Depth
9.1 in
Product Height
5.9 in
Product Width
7 in
Product Weight
0.25 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Enclosure
NEMA 9 NEMA 7 NEMA 3R
Special features
With NEMA 3, 7, & 9 enclosure, Canadian version
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Enclosure material
Copperless aluminum
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw
Contact type
Maintained
NEMA Rating
7 9 3
Environmental conditions
Class II, Groups E, F, G Class 1, Div 1 and 2, Groups C,D
Switch type
Toggle switch
Mounting method
Wall
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Feature: Front wired screw terminations with copper-alloy terminals enable quick, accurate field connections. Business Impact: reduced wiring errors translate to shorter installation times and lower commissioning costs. Application: ideal for industrial control panels in manufacturing lines where fast updates and reliable service are essential. Feature: Two-pole, single-phase design rated at 30A and 600V. Business Impact: provides ample headroom for common motors without oversizing, improving protection coordination and lifecycle. Application: switch and protect drives on conveyors, pumps, and fans in heavy industry. Feature: Enclosure options include NEMA 7, 9, and 3R with a copperless aluminum construction. Business Impact: delivers rugged protection for hazardous locations and outdoor environments while keeping weight manageable. Application: Canadian versions and plants requiring stringent safety standards across cross-border operations. Feature: Front wired operation and maintained contact action via a toggle switch. Business Impact: fosters predictable motor starting sequences and safe shutoff, easing operator training and reducing misoperation events. Application: manual motor control in equipment where reliable, hands-on control is essential. Feature: Operating temperature range −20 to 65 °C and front screw termination for easy maintenance. Business Impact: expands site suitability and simplifies retrofits in cold rooms or hot plants; front access minimizes downtime during maintenance. Application: retrofits and new builds in industrial facilities with space constraints. Feature: Compact form factor, copperless aluminum enclosure, and a Canadian version ready for NAFTA procurement. Business Impact: lowers shipping costs and simplifies vendor qualification while meeting RoHS and cULus requirements. Application: cross-border manufacturing and global supply chains.
Get a Quick Quote for a Eaton AH6810E-C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH6810E-C?
Enquire Now
FAQs
AH6810E-C is designed for industrial panels and wall-mounted control in harsh environments. It features front-wired screw terminals for quick field wiring, a two-pole, single-phase configuration, and copperless aluminum enclosure options with NEMA 7/9/3R ratings. This makes it ideal for manufacturing lines, conveyors, and pumps operating in hazardous or damp spaces while meeting safety standards.
Key specs include a 30A amperage rating and a 600V voltage rating, two-pole construction, single-phase operation, front wired screw terminations, and maintained contact. Terminals use copper-alloy/brass screws, and the device is compatible with #14-10 AWG wiring. It also carries cULus Listing and RoHS compliance for reliable industrial performance.
Yes. The AH6810E-C is cULus Listed and RoHS Compliant, with NAFTA compliance noted for cross-border procurement. Its enclosure supports NEMA 7, 9, and 3R ratings, making it suitable for hazardous locations and varying environmental conditions while simplifying regulatory adherence in multinational facilities.
The unit is designed for hazardous locations thanks to NEMA 7/9/3R enclosure options and a Canadian version suitable for Class II, Div 1 and 2 environments. It also aligns with NAFTA and RoHS requirements, facilitating cross-border use and supplier qualification in multinational manufacturing networks.
Maintenance is simplified by front-screw terminations and front-wired wiring, enabling faster replacements and reduced downtime. The rugged copperless aluminum housing, compact footprint, and reliable maintained contacts contribute to longer service life and lower lifecycle costs, improving uptime and lowering overall maintenance spend in industrial facilities.
